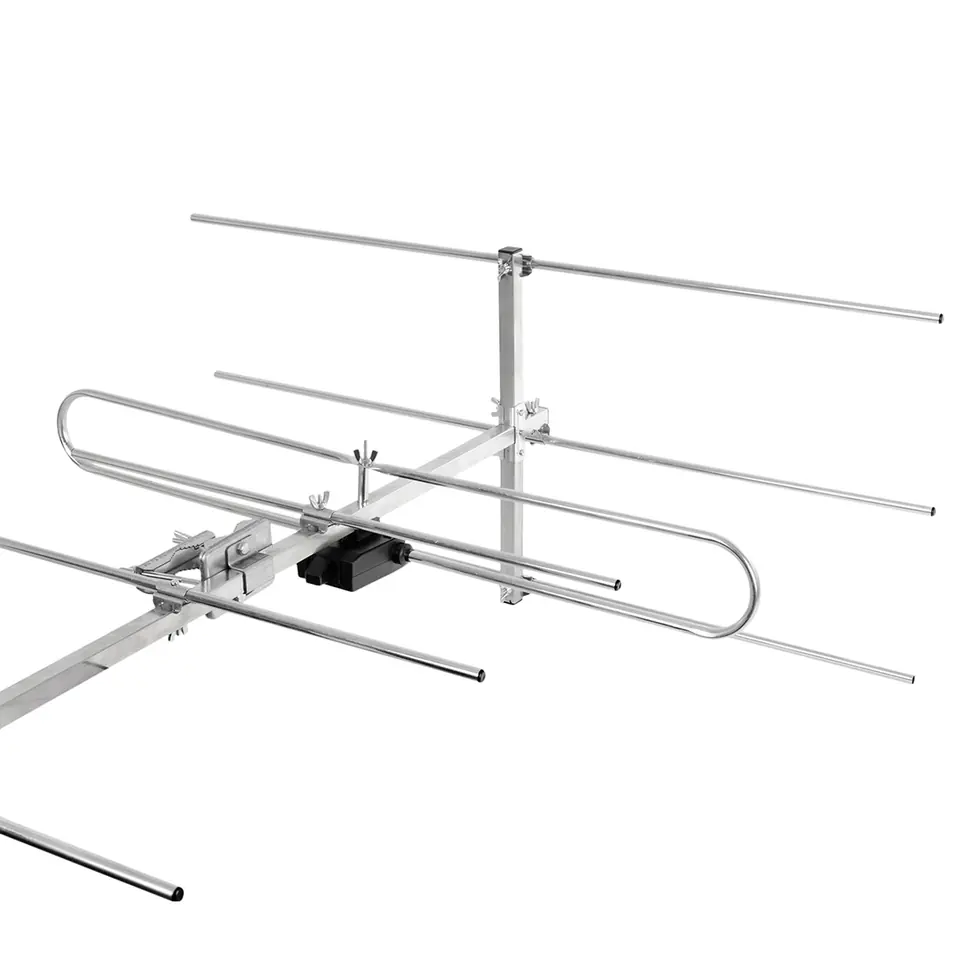

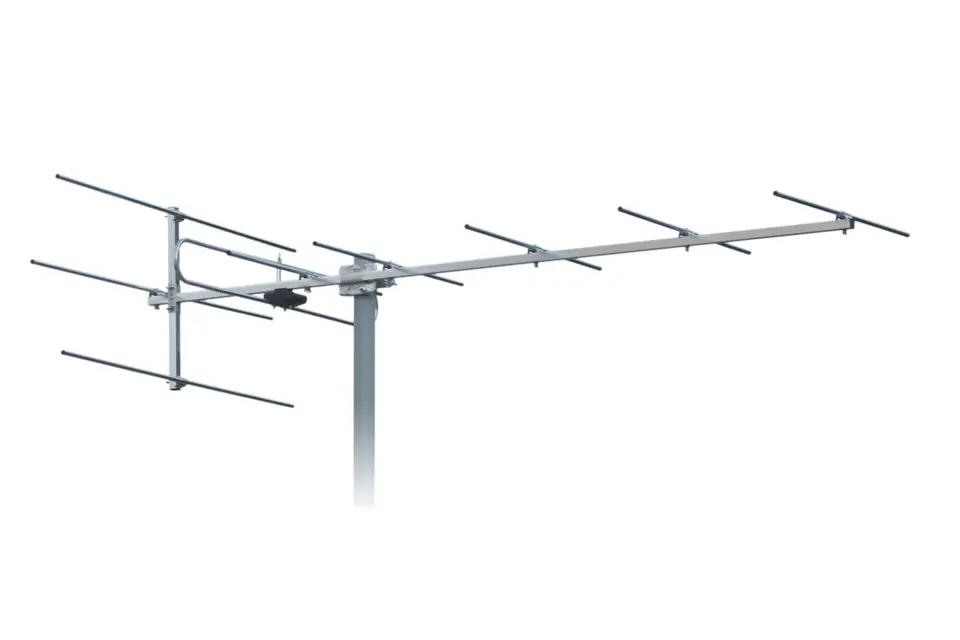

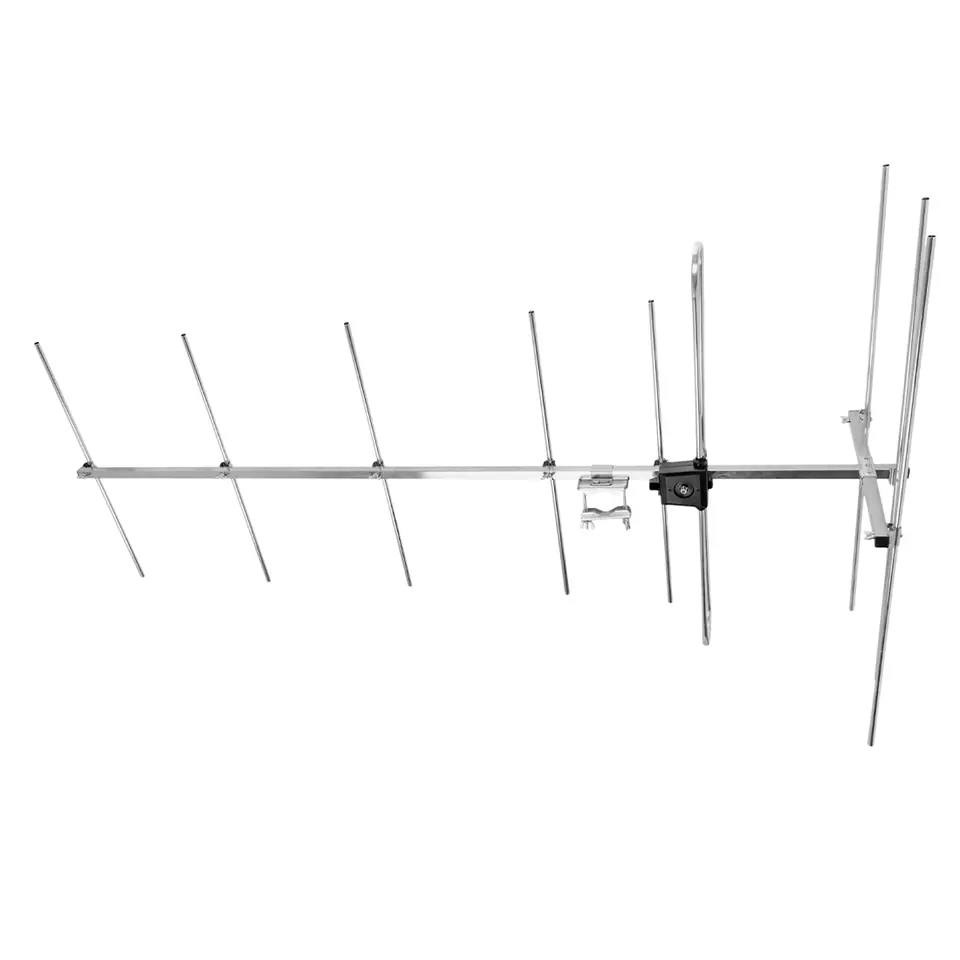

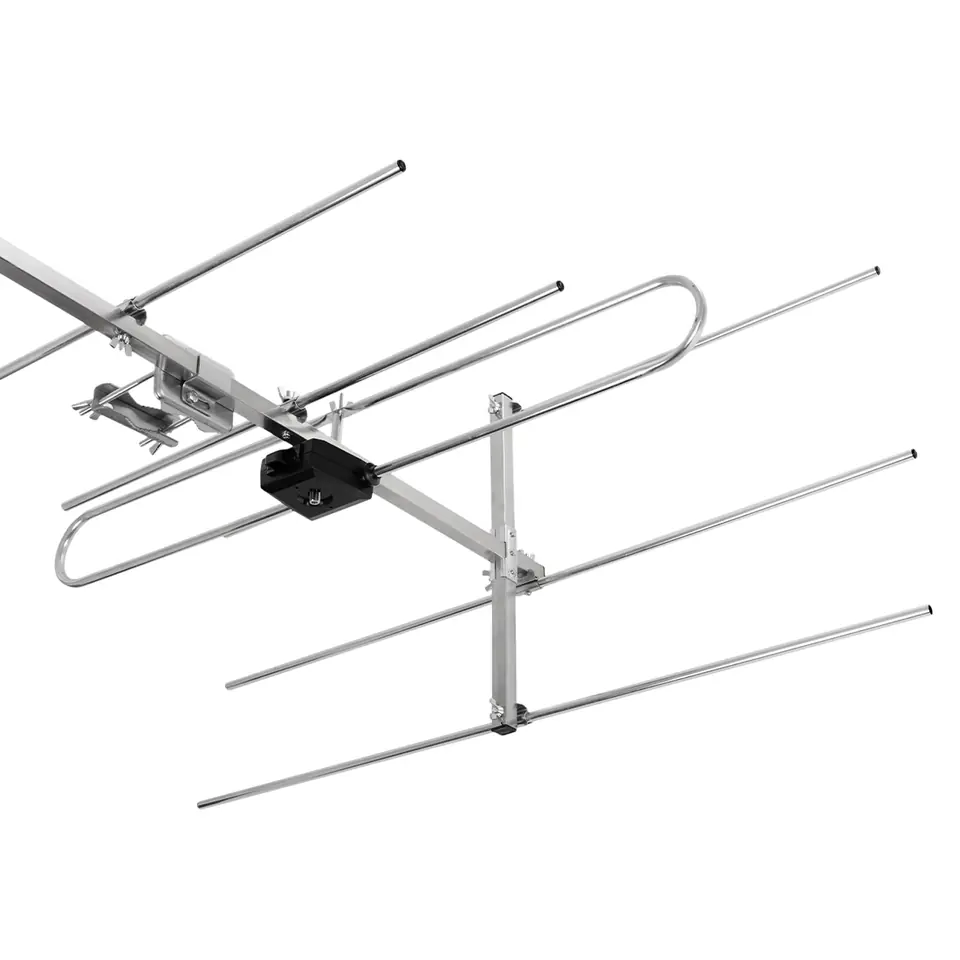

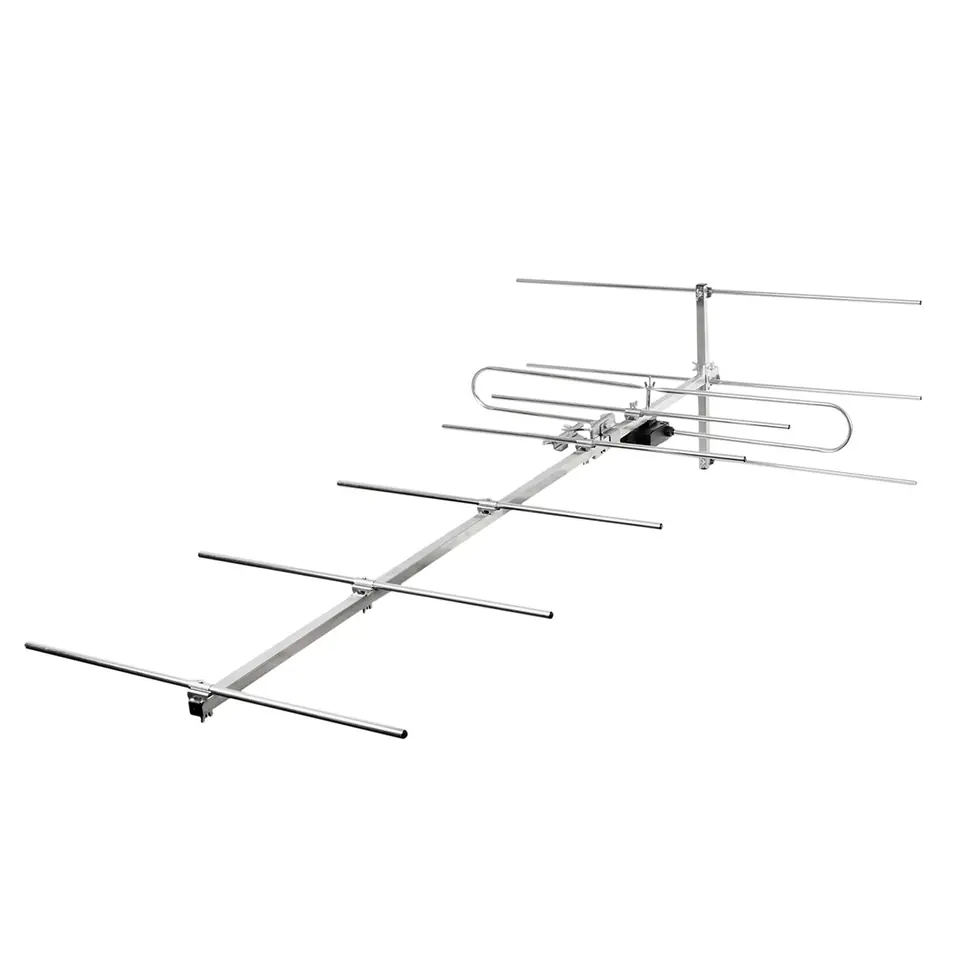

Antenna for receiving terrestrial TV DVB-T/T2 MUX-8 and digital radio BIII/DAB+ Spacetronik SPA-V91F
Professional six-element antenna designed to receive dvB-T, DVB-T2 signals in the VHF band (channels: 5-12), and digital radio – DAB / DAB +.
The eighth multiplex (MUX-8) is another DVB-T/T2 digital terrestrial television network that has been launched in Poland. The new multiplex will contain the following programs: METRO, ZOOM TV, NOWA TV, WP1 and 3 programs of Polish Television.
MUX-8 is broadcast in the VHF band (channels 5-12, 174-230MHz), just like the daB+ digital radio multiplexes.
Thanks to the directional characteristics and high gain of 7-10 dBi, the antenna is perfect for places away from the transmitters, where the signal reaching the receiver is at a low level.
Universal antenna design allows free change of V/H reception polarization (horizontal or vertical mounting)
Technical parameters:
- Working channels: 5 – 12
- Frequency: (174-230 MHz)
- Gain: 7-10 dB(i)
- Number of elements: 9
- Impedance: 75 Ohm
- F/B ratio: 17 -22 dB
- Beam width: horizontal 50°; Vertical 72°
- Antenna length: 154 cm
- Slope: 0°-10°
- Mounting on a mast with an outside diameter: 20-62 mm
