| Connection attenuation: | 8 dB - SAT 8 dB - RTV |
|---|---|
| Dc transition: | .max. 2 A |
| Dimensions: | 267 x 135 x 51 mm |
| Frequency range: | 950 ... 2400 MHz - SAT, 5 ... 862 MHz - RTV |
| Number of inputs: | 9 pcs. |
| Number of outputs: | 36 pcs. |
| Operating temperature: | -20 °C ... 50 °C |
| Producer / brand: | TERRA |
| Scales: | 1.5 kg |
| Selected features: | 8 Way SAT + RTV Splitter Die-cast metal body provides effective shielding and high mechanical resistance |
| Separation between outputs: | 30 dB |
| Warranty: | 2 years |

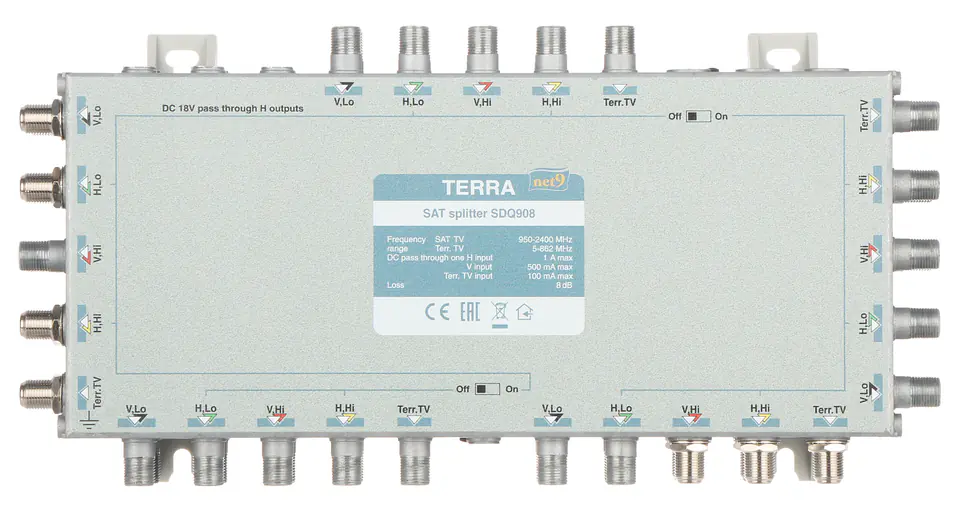

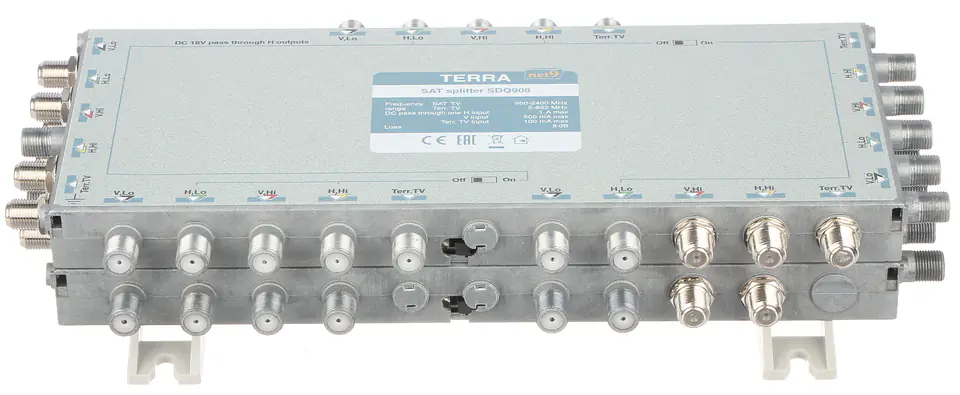

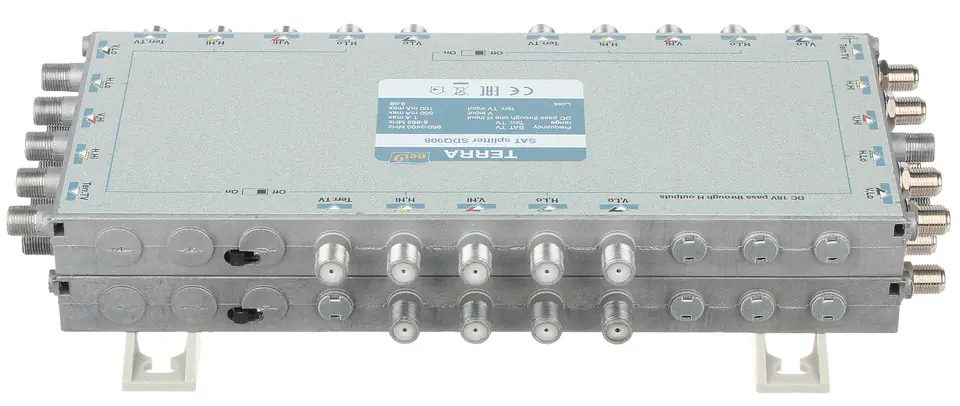

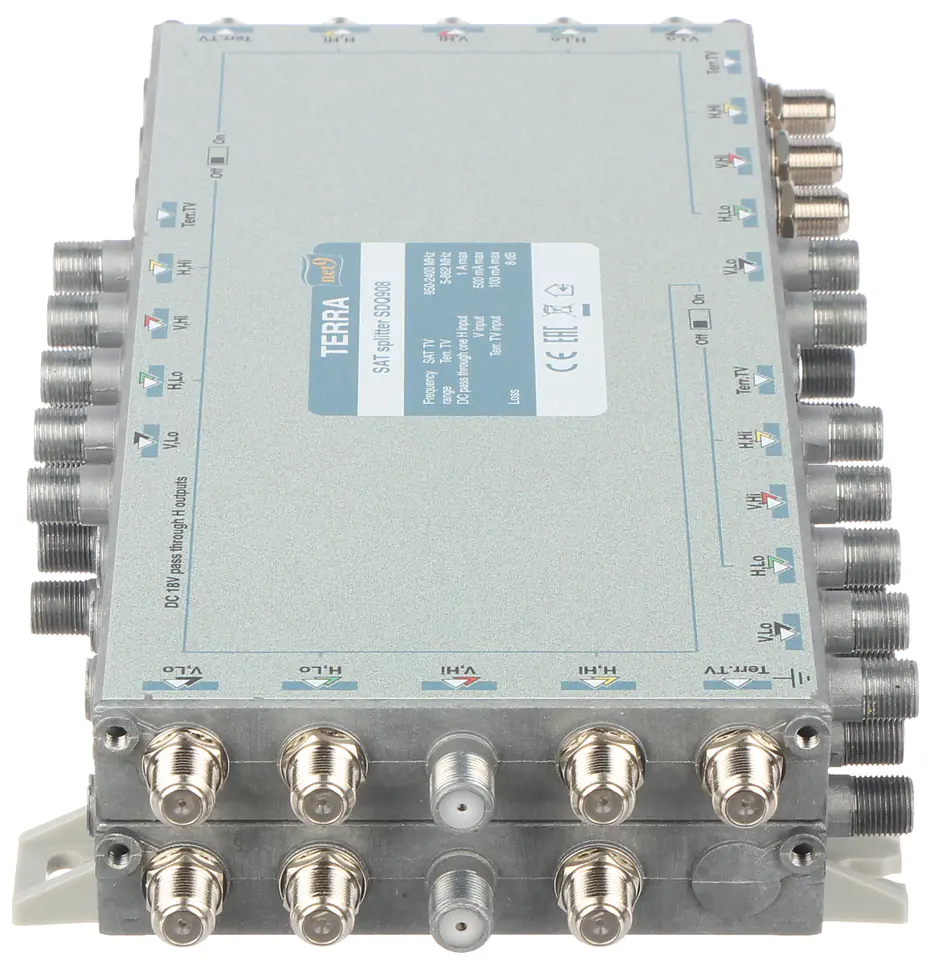

SDQ-908 splitter is used to divide 9-wire multiswitch bus into 4 lanesThe splitter has 2 DC transition switches, which set to the "ON" position pass DC voltage through "H" paths to selected branches
Die-cast housing guarantees a high level of shielding - class A
