| Amplification: | 55 ... 65 dB |
|---|---|
| Band switching: | 22 kHz |
| Dimensions: | 132 x 60 x 135 mm |
| H/v polarity switches: | 11.5 ... 14.0 / 16.0 ... 19.0 VDC |
| Handle diameter: | 40 mm |
| Input frequency: | 10.7 GHz ... 11.7 GHz 11.7 GHz ... 12.75 GHz |
| Noise ratio: | 0.1 dB |
| Number of outputs: | 8 pcs. Socket F |
| Oscillator frequency: | 9.75 GHz / 10.6 GHz |
| Output frequency: | 950 - 1950 MHz 1100 - 2150 MHz |
| Output impedance: | 75 Ω |
| Producer / brand: | Fte / eXcellento |
| Scales: | 0.290 kg |
| Selected features: | 4K UHD compliant LTE protected enclosure - waterproof frostproof Current consumption : 160 ± 10 mA (typical) |
| Type: | OCTO |
| Warranty: | 2 years |

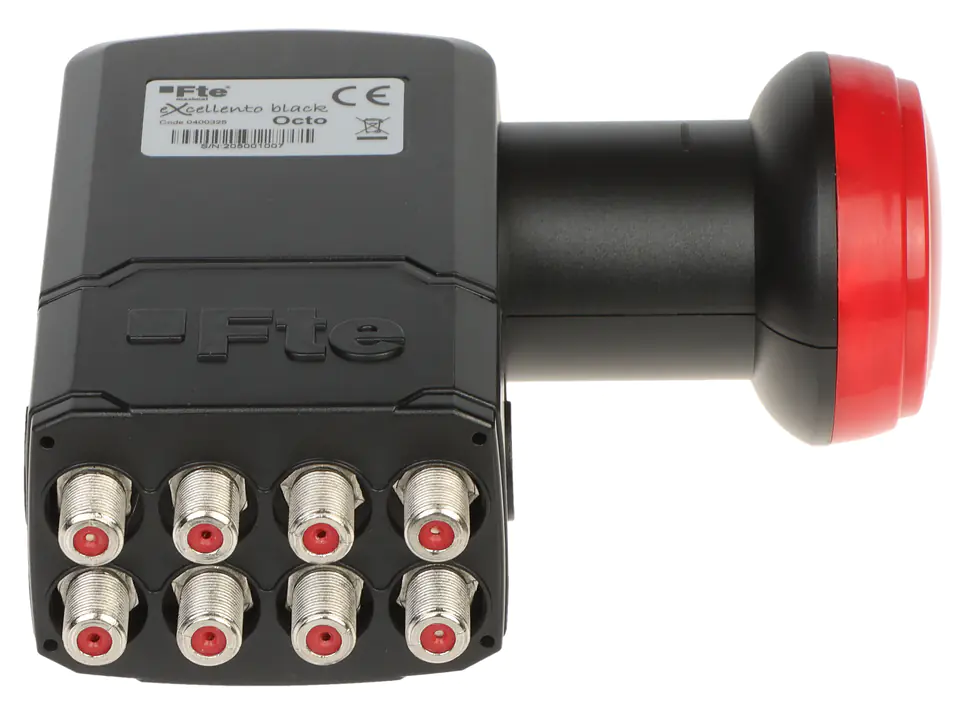

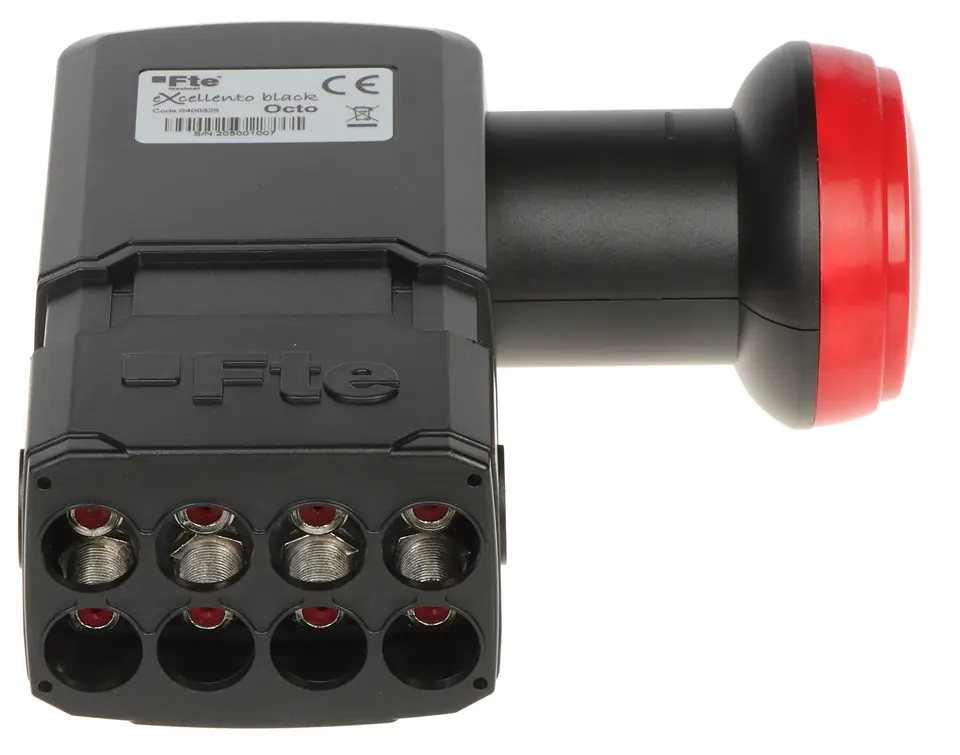

The Octo converter is the simplest solution enabling independent operation of 8 receivers using one satellite signals
From the tuner's point of view, such a converter is seen as an ordinary single converter with a generator frequency of 9.75/10.6 GHz
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
