Control DISEqC 1.2, no positioner required, memory 60 positions, rotation range 140 degrees, maximum canopy size 1.20 m, function "GO TO X"
- Cooperation with SAT TV tuners equipped with DISEqC 1.2 system
- Power supply and control of one coaxial cable (the same as the LNB)
- Compact design
- Low noise
- Adjustable mechanical stops
- Recommended antenna diameter max. 1.2 m
- "Goto X" function

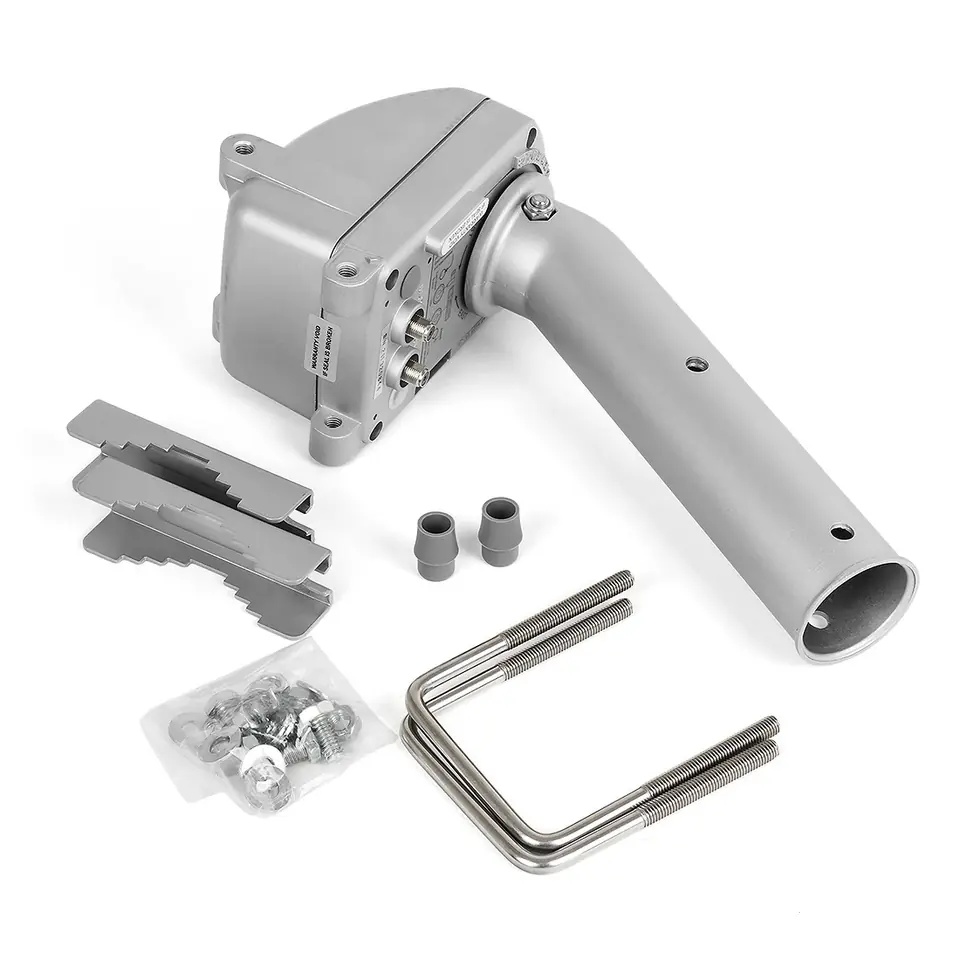

Product description
- DiSEqC1.2 signal control
- does not require additional positioner
- supplied with converter supply voltage
- key for manual setting during installation
- possibility of installing antennas with cross-section up to 1.2 m
- angular velocity 1.9-2.5 deg./sec
- elevation angle 25-75st.
- antenna holder diameter 55mm
- bracket length for antenna 160mm
- possibility of mounting on a mast with a cross section of 35-65mm
- button for manual rotation to the right or left
- very quiet and precise
Technical Specifications
| Antenna diameter | .max. 1.2 m |
| Rotation angle | 70 degrees east<-> 70 degrees west (140 degrees) adjustable |
| Facade angle | 25 degrees <-> 75 degrees |
| Input/output voltage | 13/18 VDC |
| Current consumption | 50 mA (standby), 200 mA (normal), 350 mA (max) |
| Speed | 1.9 deg/sec. (at 13 V); 2.5 degrees / sec. (at 18 V) |
| Number of satellite positions | 60 |
| Socket | type F |
| Control protocol | Related to DISEqC 1.2: |
| Sync function | yes |
| "Goto position 0" function | yes |
| "Goto X" function | yes |
| Position sensor | Hall effect |
| East/West stop | mechanically and programmatically adjustable |
| Buttons | East/West/Reset |
| Net weight | 2.83 kg |
