| Connection attenuation:: | 8 dB - SAT 8 dB - RTV |
|---|---|
| Dc transition:: | Max. 2 A |
| Dimensions:: | 267 x 135 x 30 mm |
| Frequency range:: | 950 ... 2400 MHz - SAT, 5 ... 862 MHz RTV |
| Manufacturer / brand:: | TERRA |
| Number of inputs:: | 5 pcs. |
| Number of outputs:: | 20 pcs. |
| Operating temperature:: | -20 °C ... 50 °C |
| Scales:: | 0.77 kg |
| Selected features:: | Cast body for effective shielding and high mechanical resistance |
| Separation between outputs:: | > 30 dB |
| Warranty:: | 2 years |

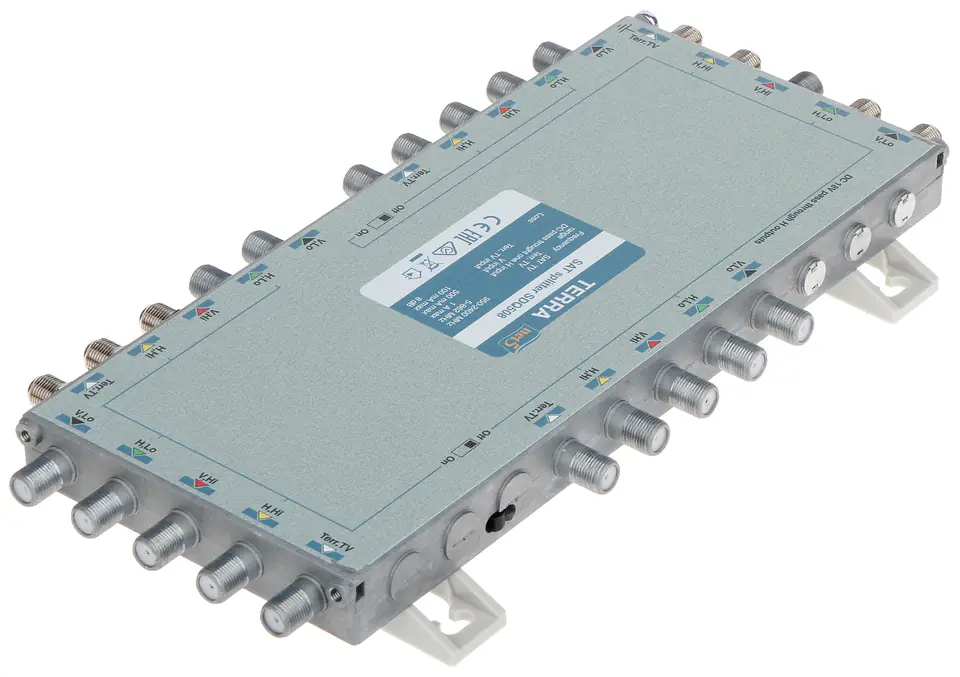

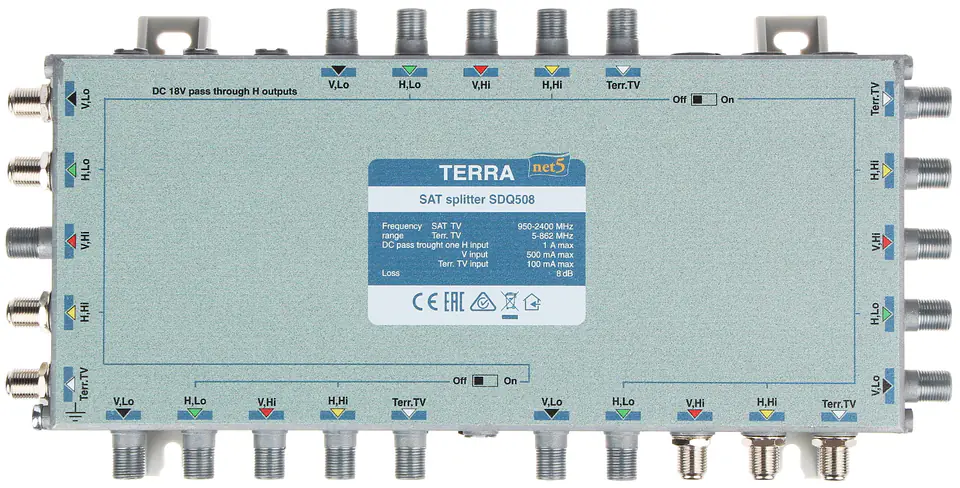

The SDQ-508 splitter is used in multiswitch systems to extract the signal from the multiswitch busAdditionally, the splitter also emits terrestrial TV signalThe splitter has 2 DC transition switches, which, set to the "ON" position, transmit DC voltage through the "H" paths to selected branches
The die-cast housing guarantees a high level of shielding - class A
