| Dimensions: | 227 x 135 x 30 mm |
|---|---|
| Inputs: | 4x 950 MHz ... 2400 MHz, 1x 47 MHz ... 862 MHz - Active |
| Maximum sat output level: | 105 dB |
| Maximum tv output level: | 84 ... 88 dBμV |
| Output: | 12x 47 MHz ... 2400 MHz |
| Power: | HL/HH inputs18 V DC / 1 A (not included) |
| Producer / brand: | TERRA |
| Sat gain (cable correction): | 3 ... 14 dB |
| Sat gain adjustment: | 12 dB in 4 dB steps |
| Scales: | 0.64 kg |
| Separation: | Between SAT/SAT inputs ≥ 30 dB Outputs ≥ 30 dB SAT Outputs ≥ 35 dB DVB-T |
| Switching signals: | 14 V / 18 V0 Hz / 22 kHz |
| Tv gain (cable correction): | -3 ... 5 dB |
| Tv gain adjustment: | 15 dB in 1 dB increments |
| Warranty: | 2 years |
MV series radial multiswitches have been designed for use in medium and large SMATV systems, and can also be used in smaller home installations

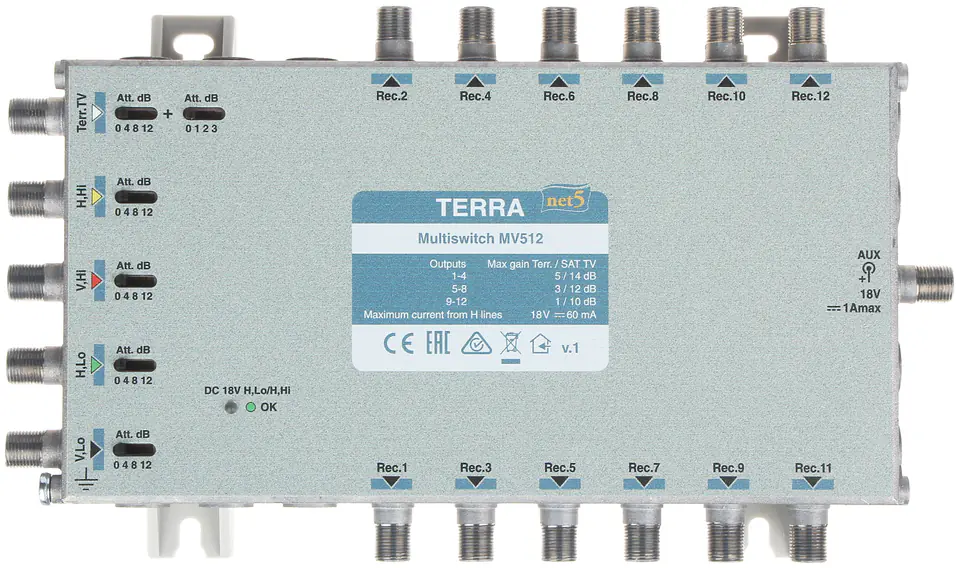

MV-512 multiswitch has active (amplified) terrestrial and satellite channelsGain (signal level) adjustment for each satellite and DVB-T paths is carried out by means of dedicated switches

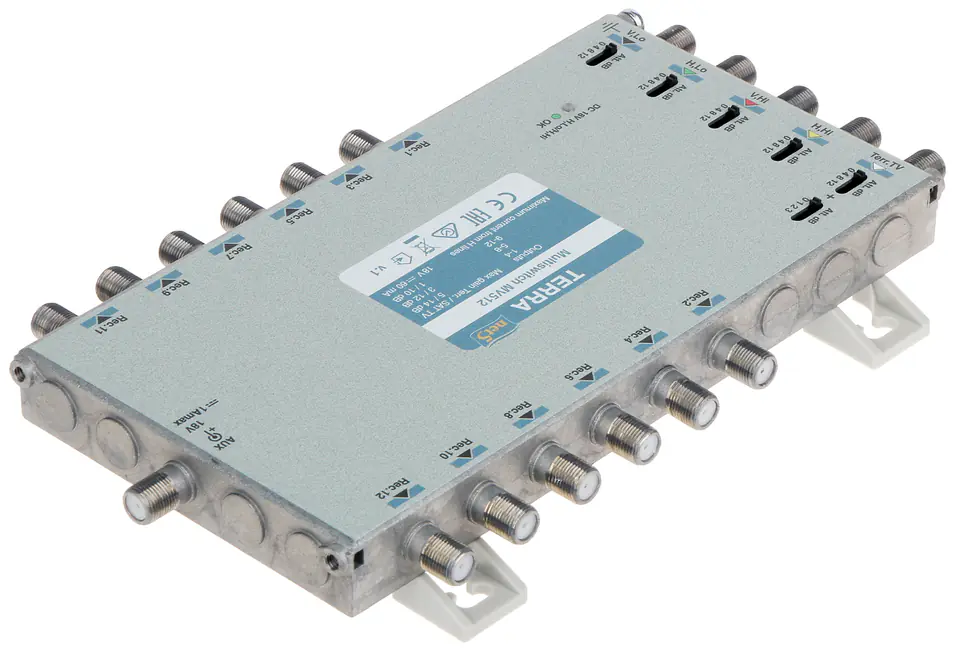

Die-cast housing guarantees a high level of shielding - class A
