| Dimensions: | 253 x 135 x 52 mm |
|---|---|
| Inputs: | 8x 950 MHz ... 2400 MHz1x 47 MHz ... 790 MHz Active - Built-in LTE1x 5 MHz filter ... 862 MHz Passive |
| Maximum sat output level: | 93 dB |
| Maximum tv output level: | 82 ... 85 dBμV |
| Output: | 16x 5 MHz ... 2400 MHz |
| Power: | 230 VAC |
| Preamplifier power supply: | 12 volts DC |
| Producer / brand: | TERRA |
| Sat gain (cable correction): | 6 ... 14 dB |
| Scales: | 1.39 kg |
| Separation: | Between SAT/SAT inputs > 30 dB Outputs > 30 dB SAT Outputs > 30 dB DVB-T |
| Switching signals: | 14 V / 18 V0 Hz / 22 kHzDiSEqC 2.0 |
| Tv gain (cable correction): | -1 ... 5 dB |
| Warranty: | 2 years |

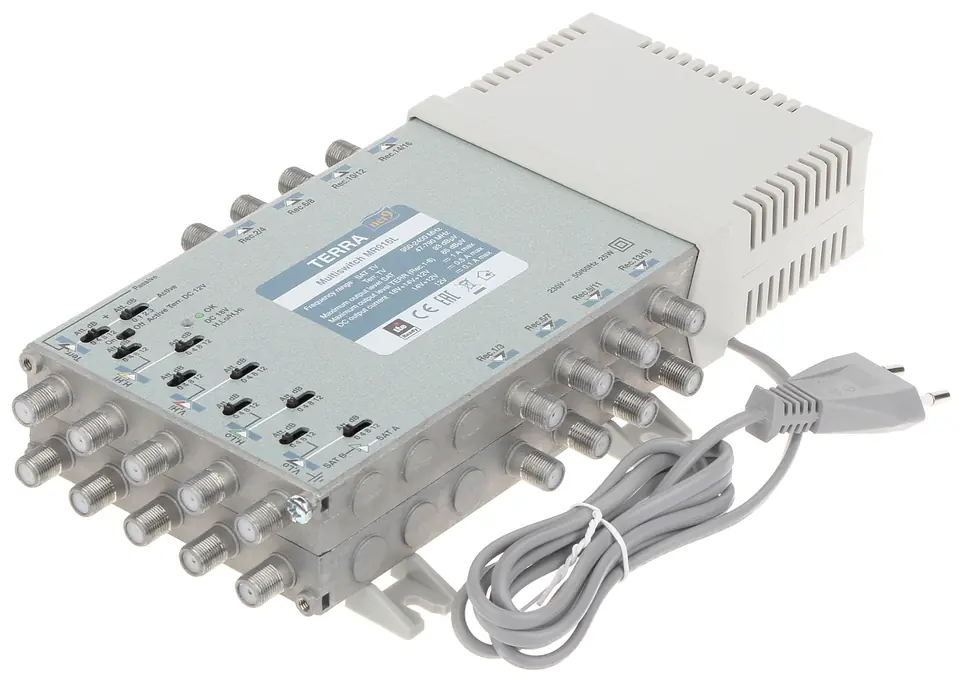

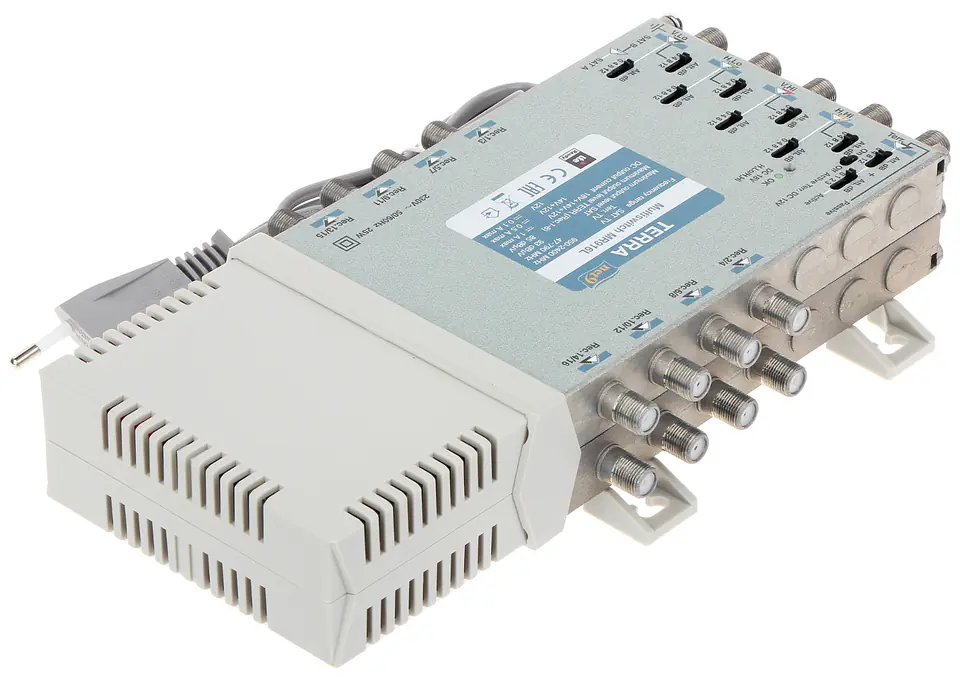

Radial multiswitches of MR series are dedicated for small and medium-sized (4-70 outlets) installations with distribution of SAT IF signals and terrestrial TV signals
MR series is designed for installation in systems based entirely or partially on star topology, in which the cables from the end outlets converge at the place of installation of a multiswitch or a group of multiswitches. They are therefore ideal for use in single or multi-family houses
