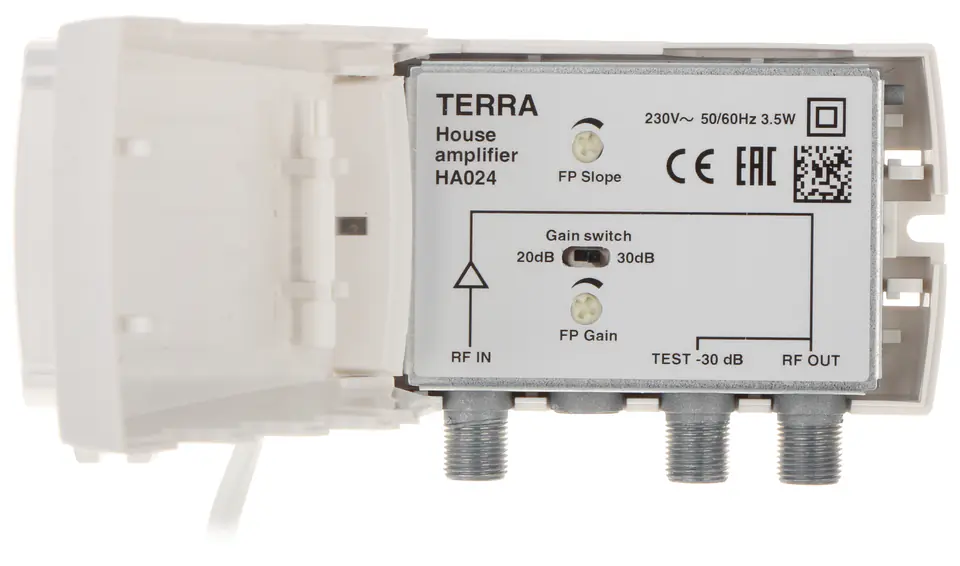

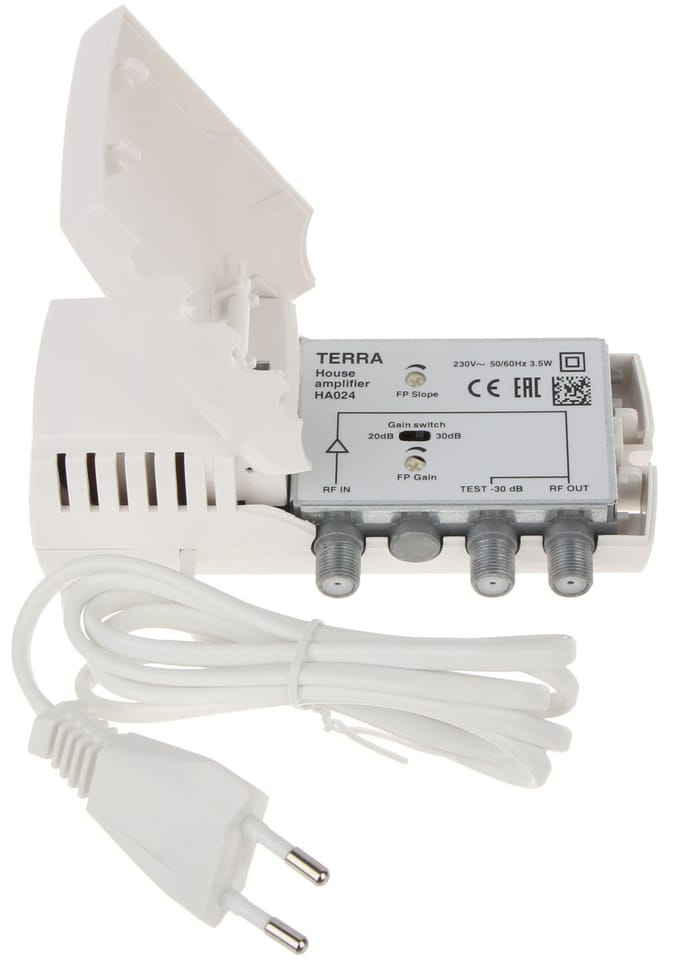

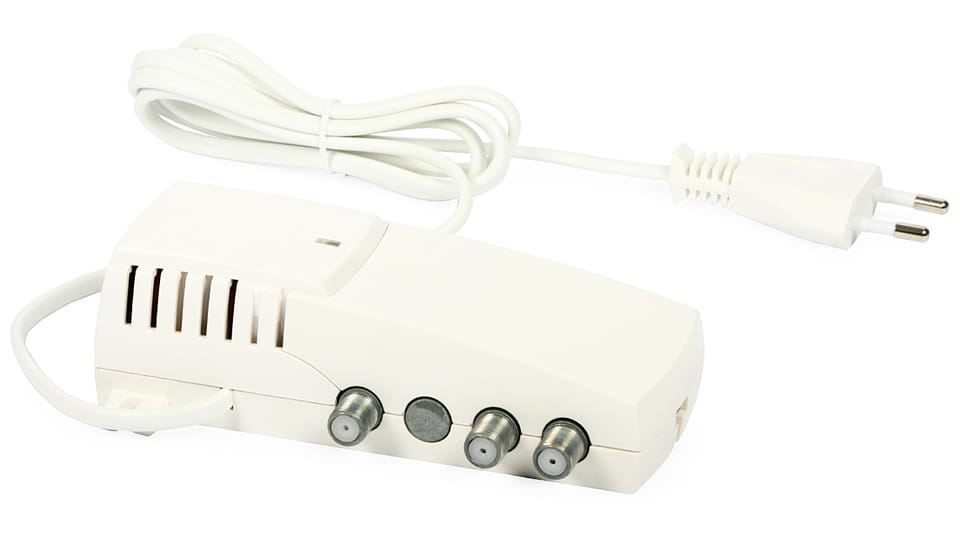

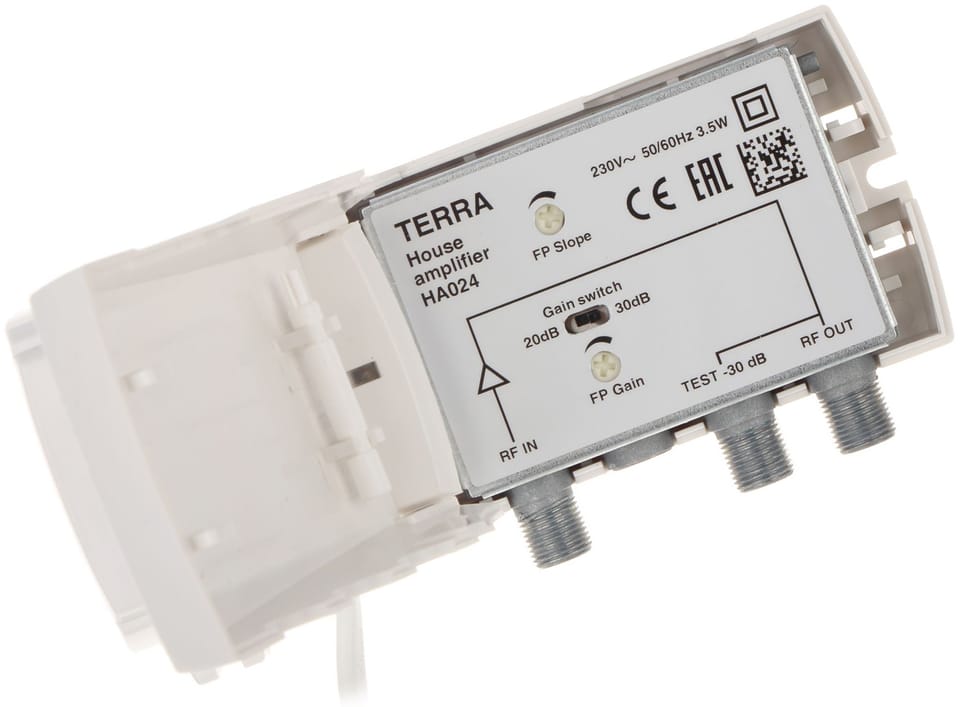

TERRA HA-024 AMPLIFIER
€40.65
Shipping from warehouse: D4
Estimated shipping: Wed, May 15 - Mon, May 20
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- HA-024 / 5902887050978
Share this product:
Specification
| Adjustment of the slope of the characteristics:: | 17 dB |
|---|---|
| Amplification:: | 18 dB ... 20 dB 27 dB ... 30 dB selectable by switch |
| Dimensions:: | 133 x 63 x 39 mm |
| Frequency range:: | 47 MHz ... 862 MHz |
| Gain adjustment:: | 17 dB |
| Manufacturer / brand:: | TERRA |
| Maximum output level imd3=60 db din45004b:: | 97 dBμV |
| Noise ratio:: | ≤ 8.5 dB |
| Number of inputs/outputs:: | 1 / 1 + 1 (1 x test: -30dB) |
| Operating temperature:: | -20 °C ... 50 °C |
| Power consumption:: | ≤ 3.5 watts |
| Power:: | 230 VAC |
| Scales:: | 0.33 kg |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
