| Case: | Plastic, DIN rail mounting, TS-35 |
|---|---|
| Class: | Type 1+2 ( Class B + C ) |

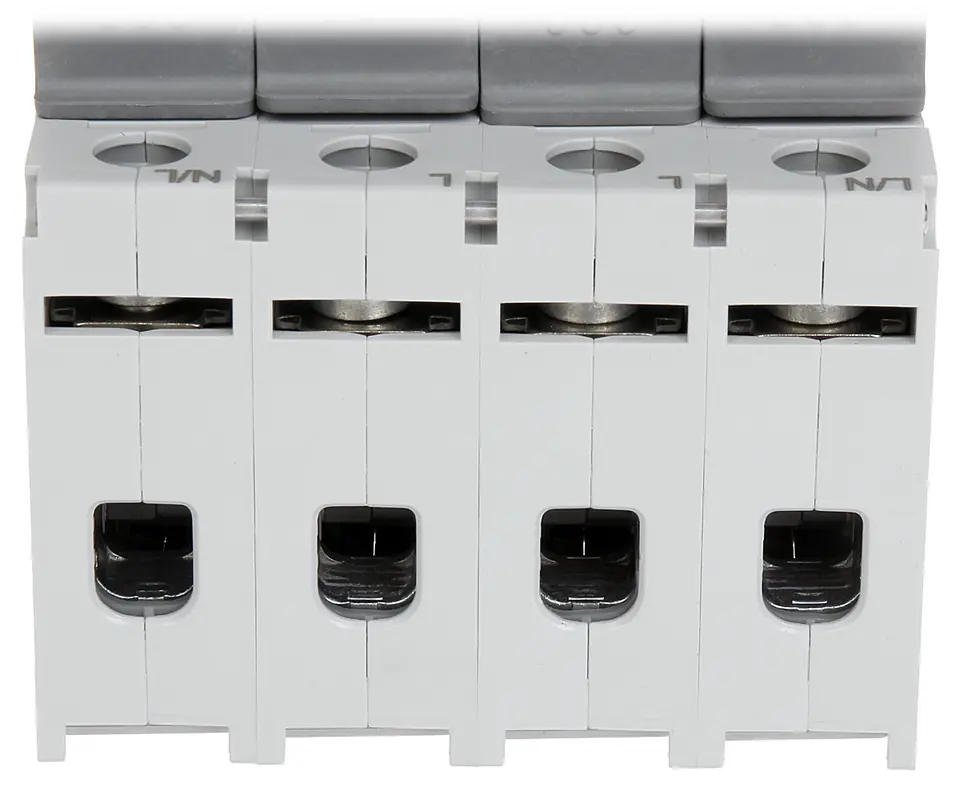

| Connector type: | screwed clamps |
| Dimensions: | 71 x 83 x 70 mm |
| Maximum discharge current (l/n, l/pe, n/pe): | 50 kA @ 8/20 μs (T2) |
| Maximum voltage: | 320 VAC, 50 / 60 Hz |
| Producer / brand: | LEGRAND |

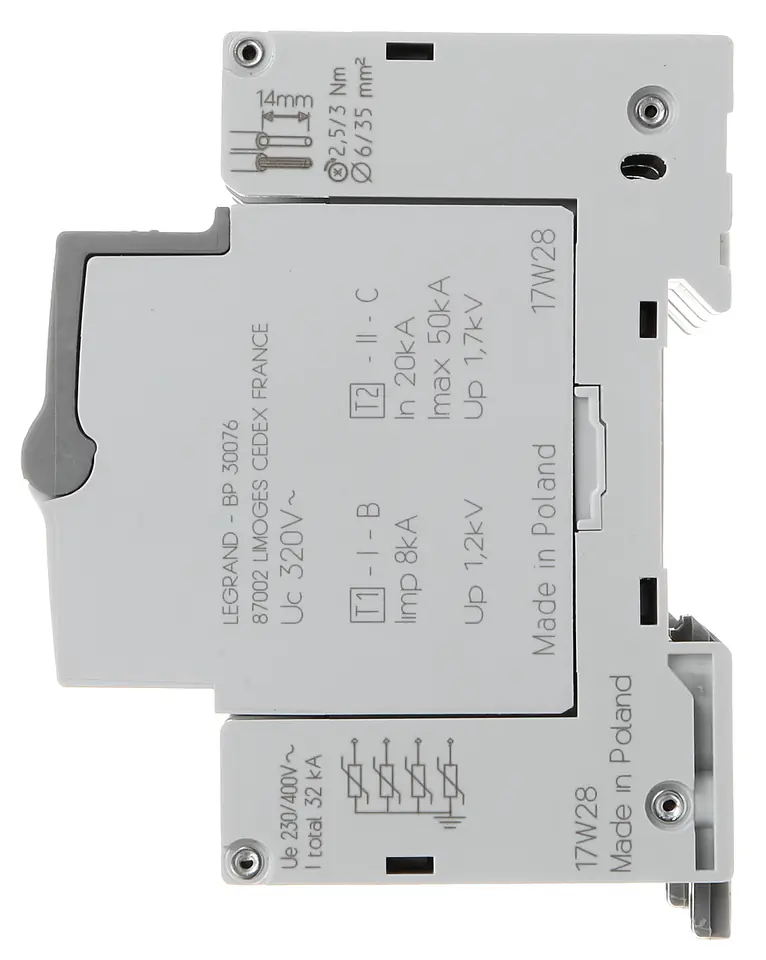

| Protection level up l/pe, n/pe: | 1.2 kV @ 10/350 μs (T1)1.7 kV @ 8/20 μs (T2) |
| Rated discharge current (l/pe, n/pe): | 8 kA @ 10/350 μs (T1)20 kA @ 8/20 μs (T2) |
| Scales: | 0.552 kg |

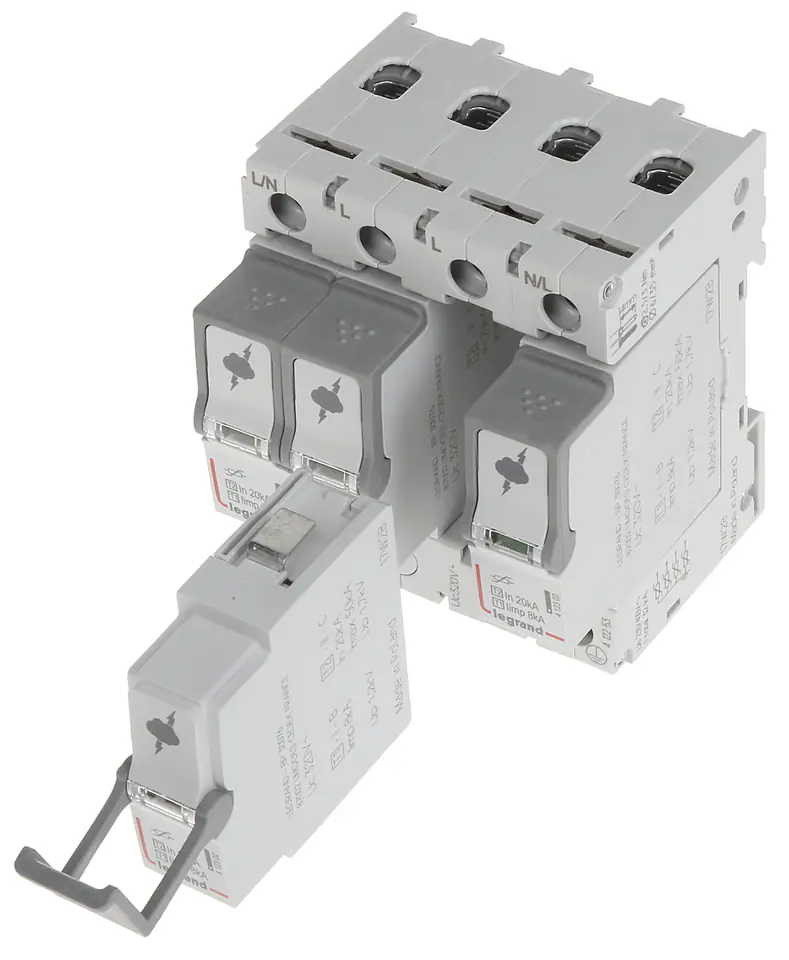

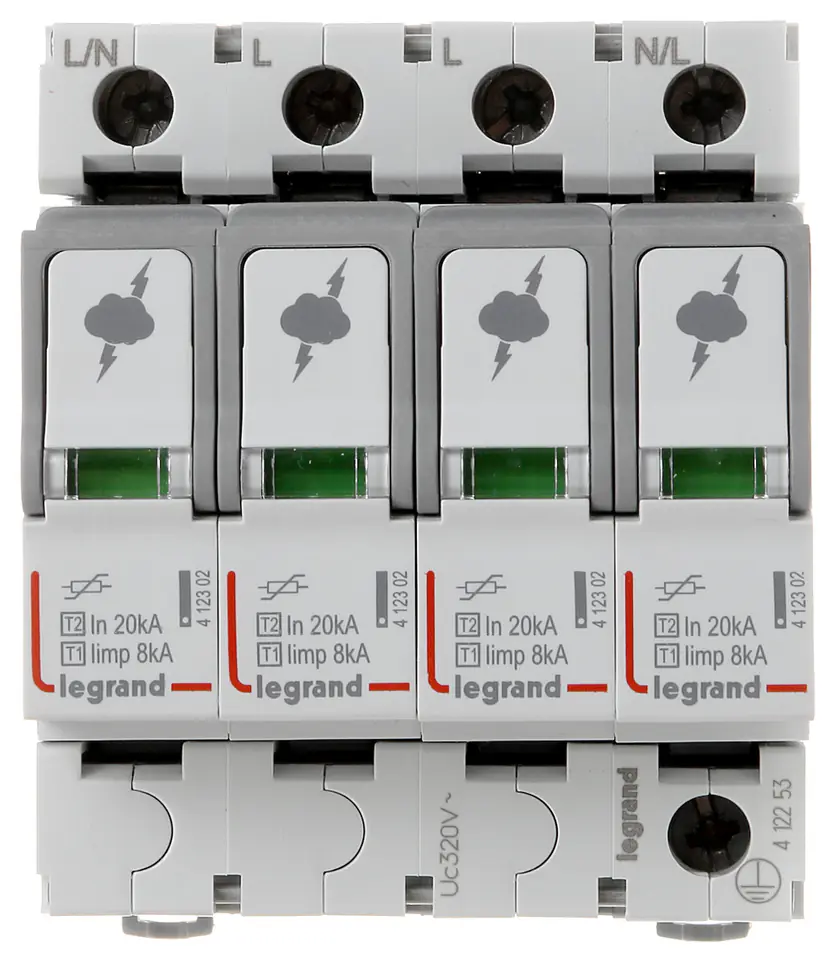

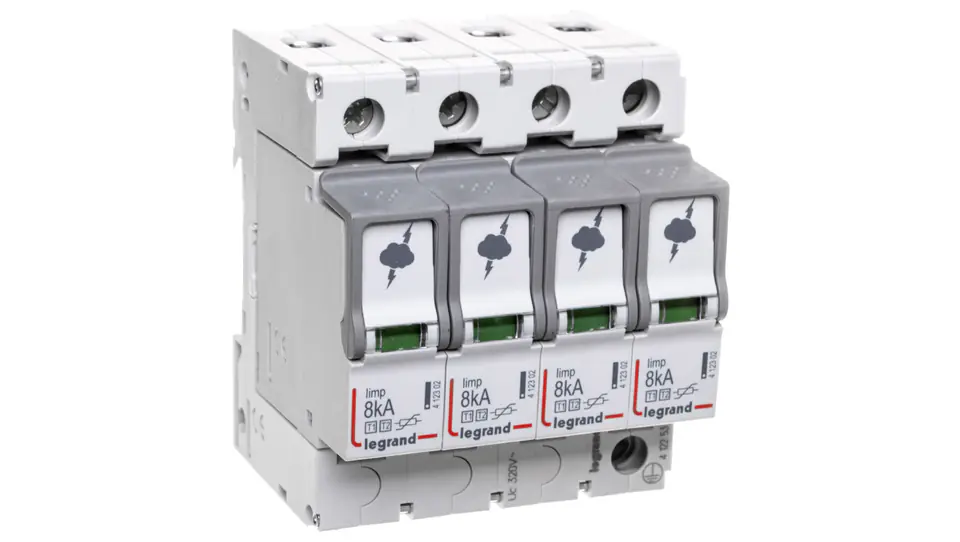

| Type of device: | Surge arrester, Three-phase |
| Voltage: | 230 / 400 VAC, 50 / 60 Hz |
| Warranty: | 2 years |
| Width in modules 17.5 mm: | 4 |

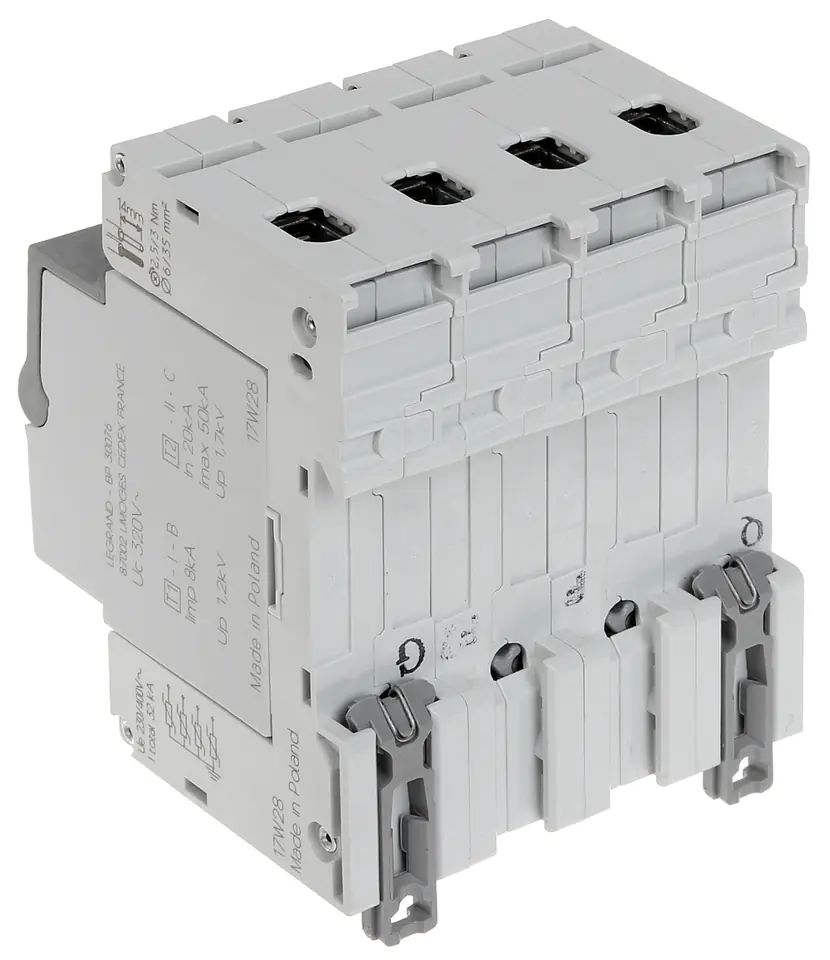

Protection strip, protects devices against the effects of lightning or overvoltages coming from the AC 230V networkThe LE-412253 device is designed for mounting on the TS-35 DIN rail
The condition for proper operation of LE-412253 is to connect it to an efficient grounding or PE protective conductor
