The SD-504 splitter is used in multiswitch systems to extract the signal from the multiswitch busAdditionally, the splitter also emits terrestrial TV signalThe splitter has a DC transition switch that sets to the "ON" position and transmits DC voltage through the "H" paths to both branchesSet in the \"OFF\" position, it passes voltage only to one branch

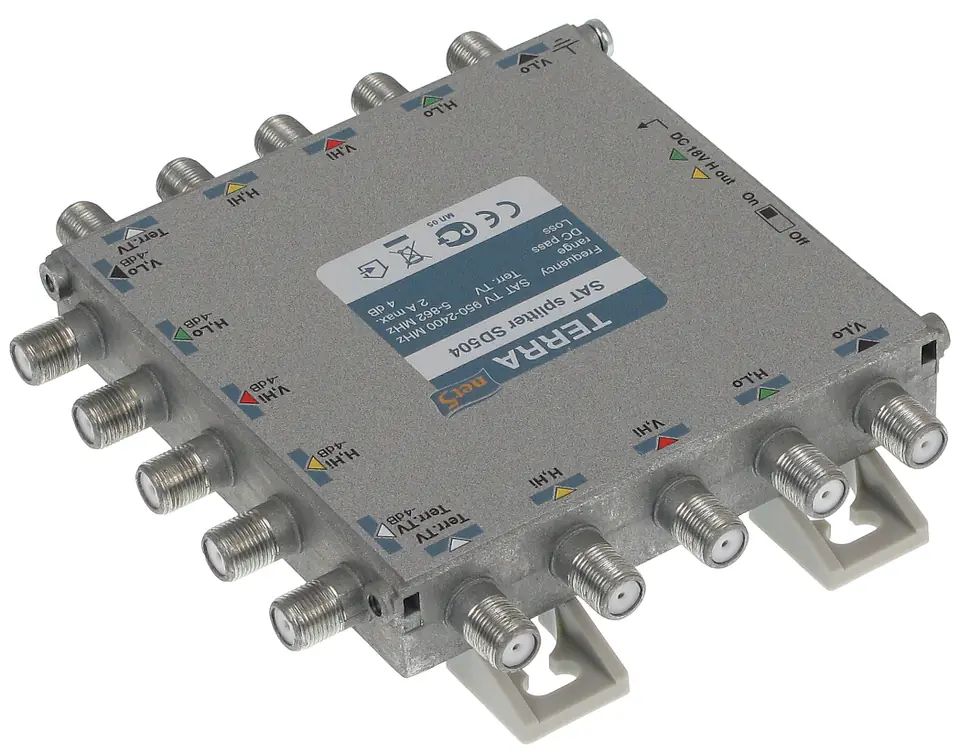

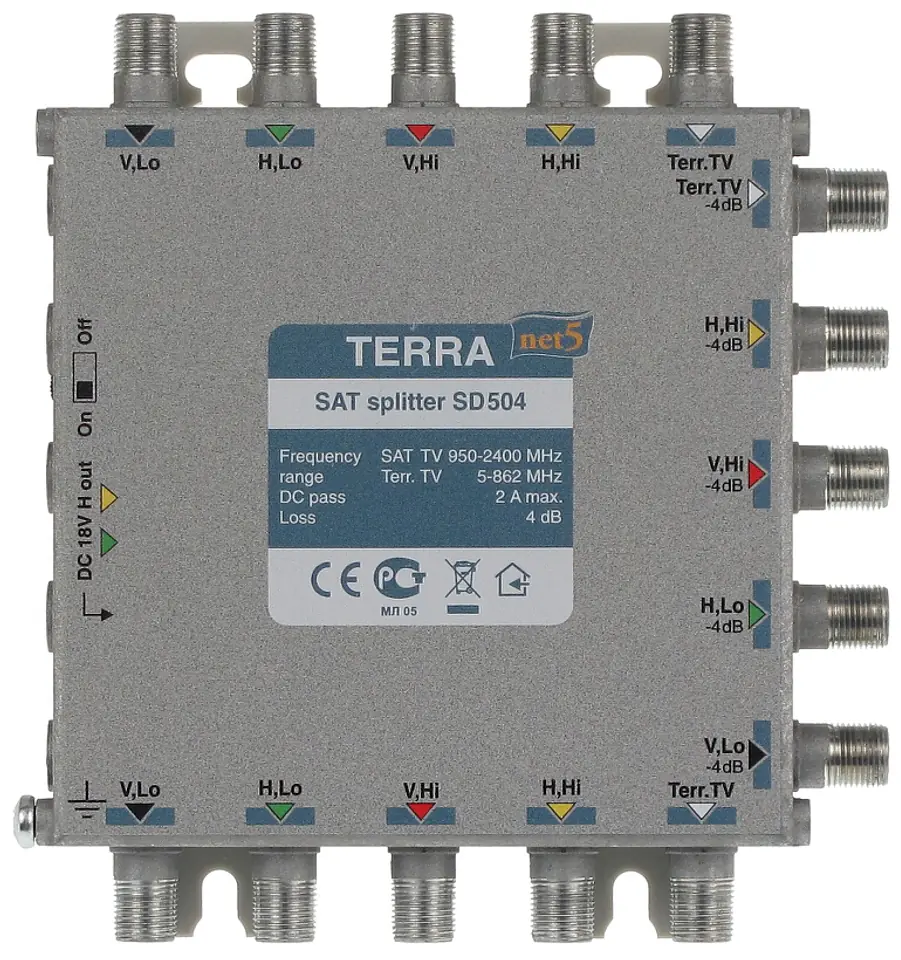

SPLITTER TV/SAT SD-504
€48.08
Shipping from warehouse: D4
Estimated shipping: Fri, May 10 - Mon, May 13
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- SD-504 / 5907634574882
Share this product:
Specification
| Connection attenuation:: | 4 dB - SAT, 4 dB - TV |
|---|---|
| Dc transition:: | Max. 2 A |
| Dimensions:: | 126 x 135 x 30 mm |
| Frequency range:: | 950 ... 2400 MHz - SAT, 5 ... 862 MHz - TV |
| Operating temperature:: | -20 °C ... 50 °C |
| Scales:: | 0.39 kg |
| Separation between outputs:: | > 30 dB |
| Warranty:: | 2 years |
