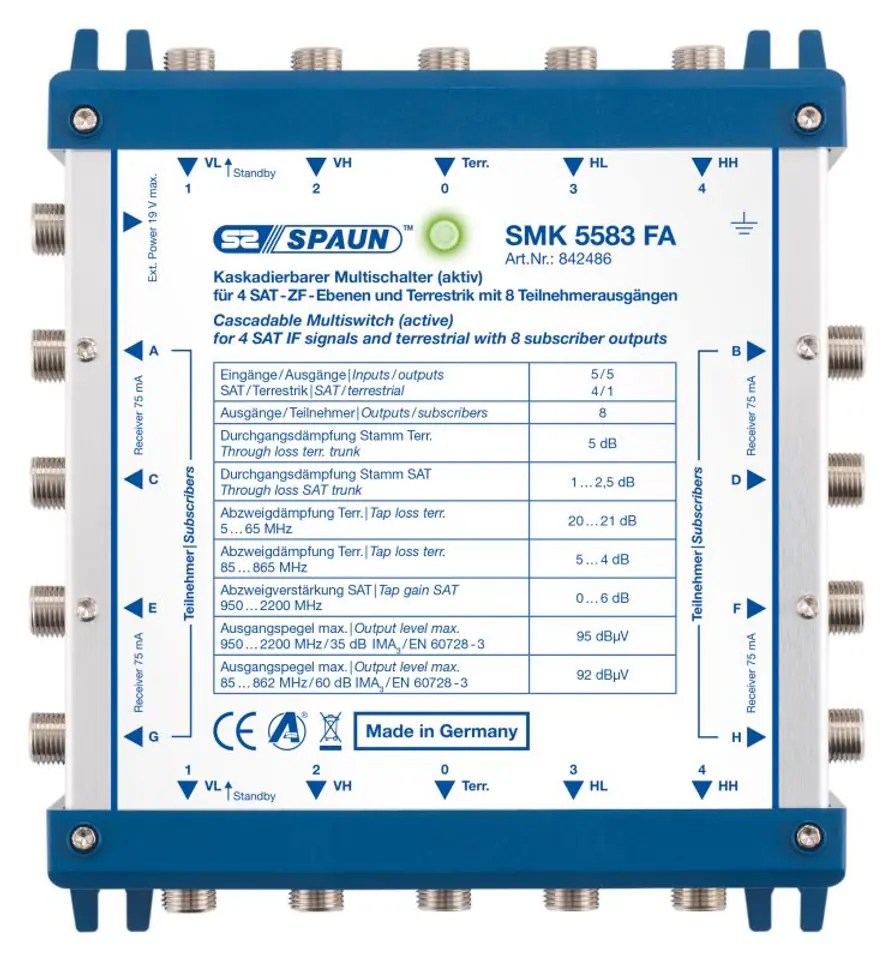

Active cascade multiswitch Spaun 5/5 to 8 SMK 5583 FA

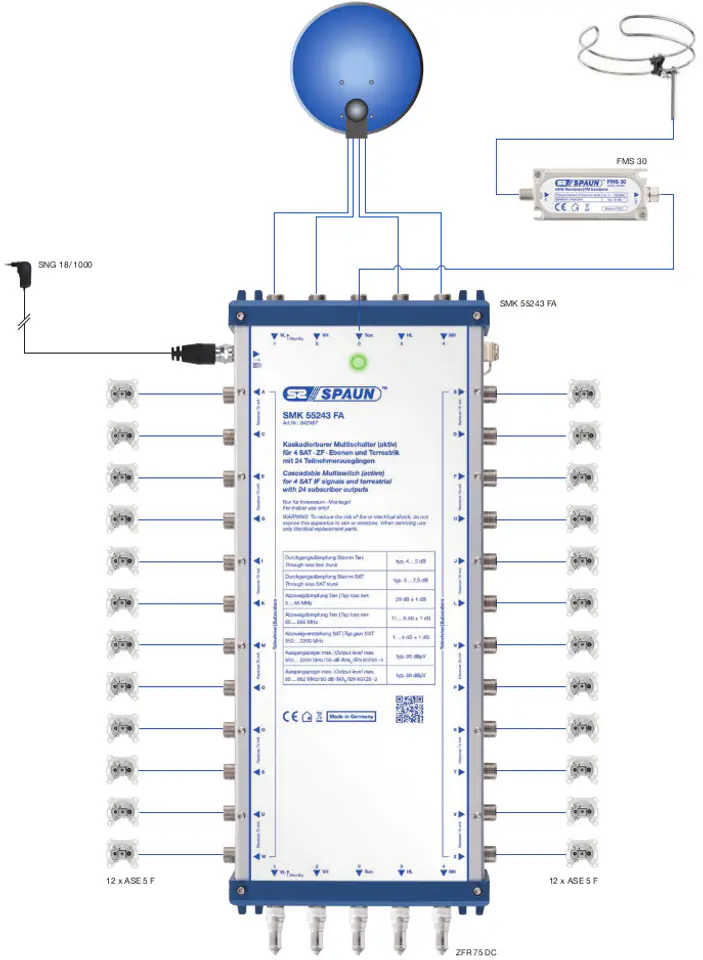

Cascade multiswitch is a device that allows to freely scale the size of the network by adding more devices. Individual multiswitches are connected in series by providing signals from the loop-through outputs. If no further expansion of the system is planned, the last device in the cascade is the end multiswitch. Signals from the tap outputs, in turn, are fed to the end sockets, subscribers. Cascade multiswitches can be placed on different floors of the building, which allows to significantly shorten the distance from the output of the multiswitch to the satellite receiver. Also in the event of a possible failure, the cascade multiswitch can be quickly removed from the system and replaced with an efficient device, so that the time of failure and its repair is limited to the necessary minimum.
- Amplified SAT IF signals.
- Amplified terrestrial signals (85... 862 MHz).
- Passive return band (5... 65 MHz).
- SAT IF polarity selection is controlled by remote voltage, <14V Vert. 16V Hor.>

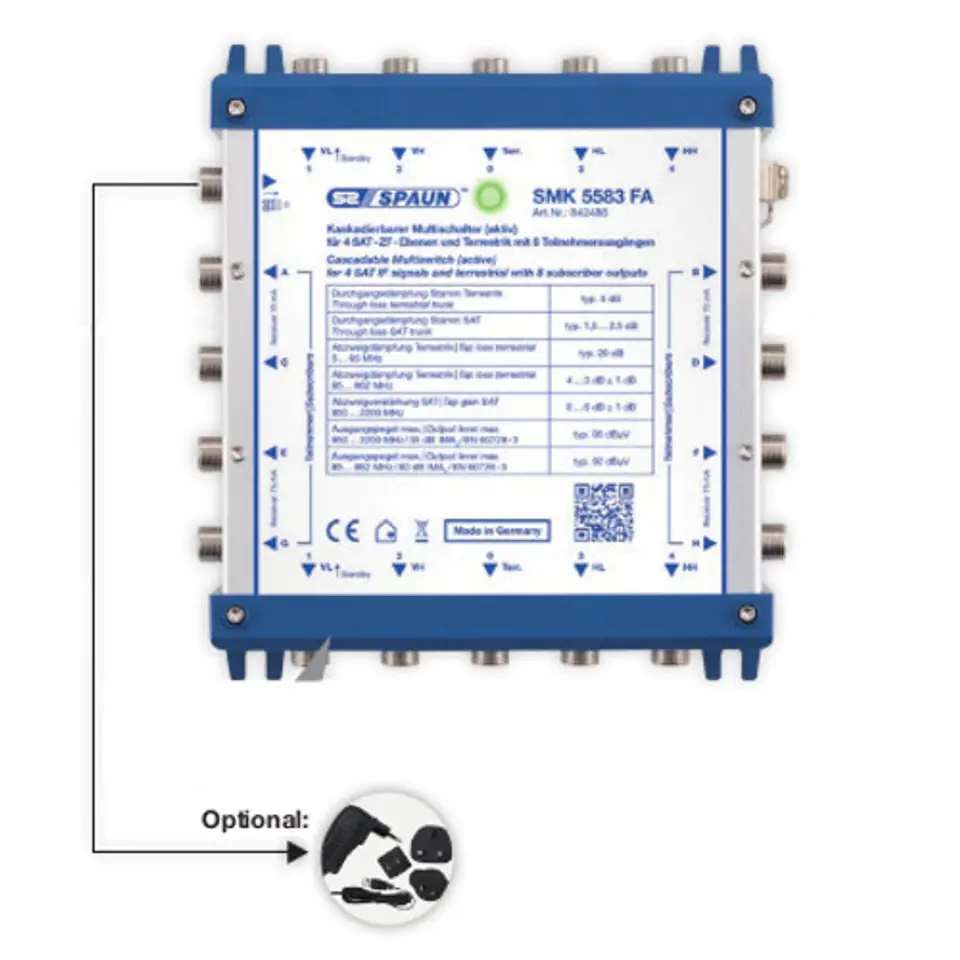

- The device has a DC socket for remote power supply if the starter amplifier would not provide remote supply voltage.
- LED power indication.
- Power supply for terrestrial antenna (18V / 90mA), from power supply or amplifier in SMATV system
