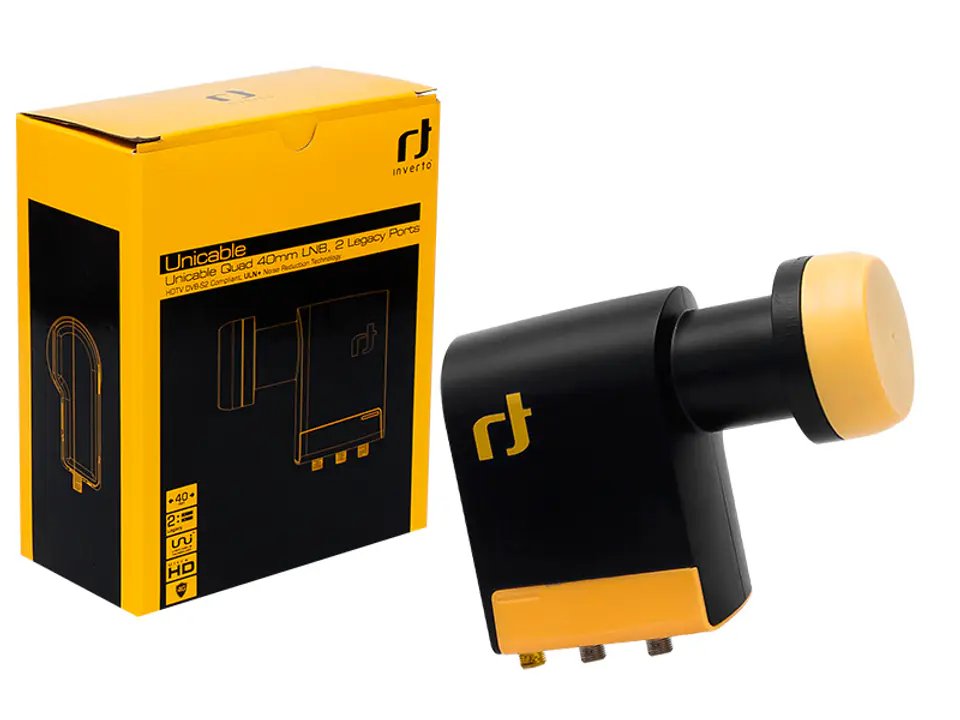

A product from the innovative and award-winning Unicable LNB series. The converter allows you to connect up to four decoders with one cable, as well as two others to separate sockets.
The converter is compatible with High Definition transmission and guarantees excellent noise ratio. Manufactured to the highest quality industry standards and meeting all requirements, these converters are the ideal solution for satellite reception in Europe.
MAIN FEATURES:
- Low phase noise compatible HDTV DVBS2
- Low power consumption
- Very high frequency stability
- 2 independent ports
- High cross-polarity
- F socket cover
TECHNICAL DATA:
- Lower band frequency range - input: 10.7~11.7 GHz
- Lower band frequency range - output: 950-1950 MHz
- Lower oscillator frequency: 9.75 GHz
- Upper band frequency range - input: 11.7~12.75 GHz
- Frequency range of upper band - output: 1100~2150 MHz
- Frequency of the upper oscillator: 10.6 GHz
- Custom noise: 0.2dB Type. (0.7dB Max)
- Initial accuracy: +/-1.0 MHz
- Oscillator temperature drift: +/-2.5 MHz
- Phase noise: -90dBc/Hz
- Gain: 55dB
- IF output of channel 1 (SCR0): 1210 MHz
- IF output of channel 2 (SCR1): 1420 MHz
- Channel 3 IF output (SCR2): 1680 MHz
- IF output of channel 4 (SCR3): 2040 MHz
- Gain variability: +/-0.75 dB/27 MHz
- Separation between polarizations: 20dB
- Polarity control Ca (V): 11.0~14.0 V
- Polarity control Cb (H): 16.0~20.0 V
- Output impedance: 75 Ohm, type F
- Independent ports: 2
- VSWR : 2.5:1
- Current consumption: 250mA (max.)
- Operating temperature: -30°~+60°C
- Weight: 350g
