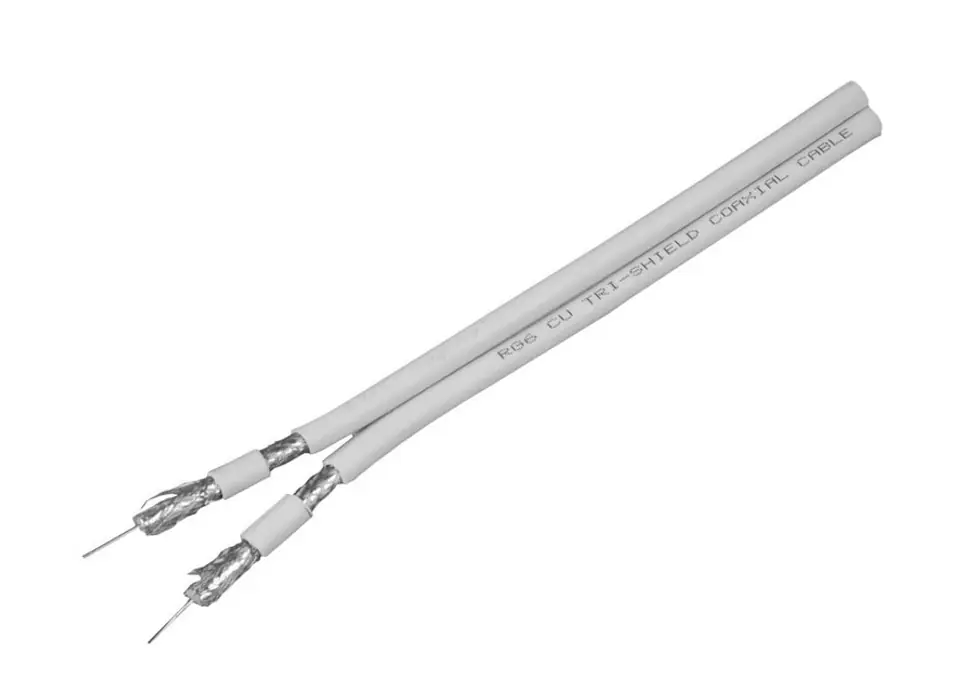

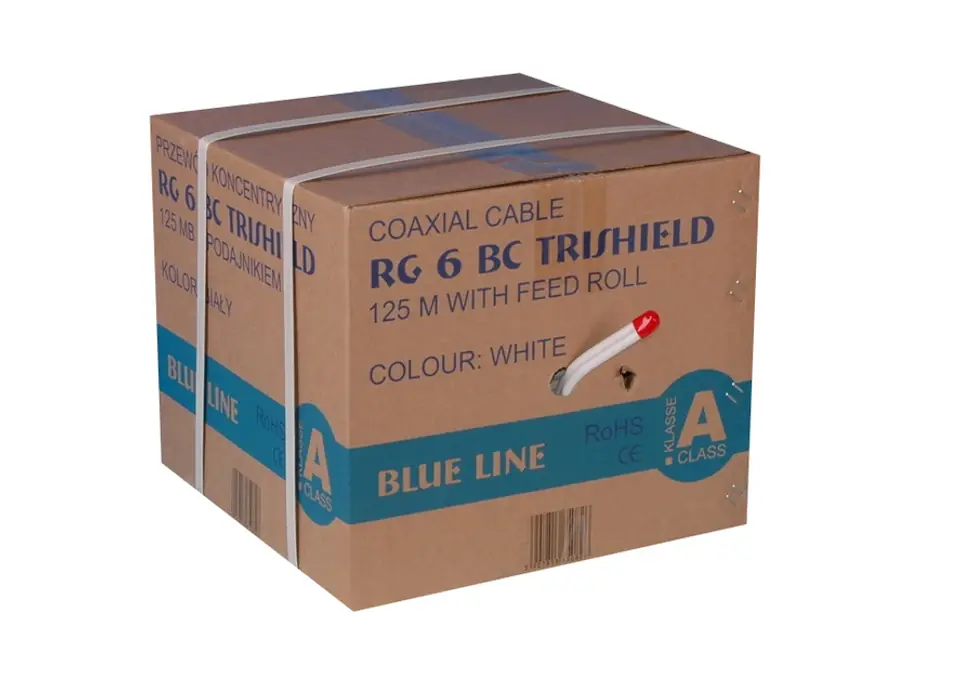

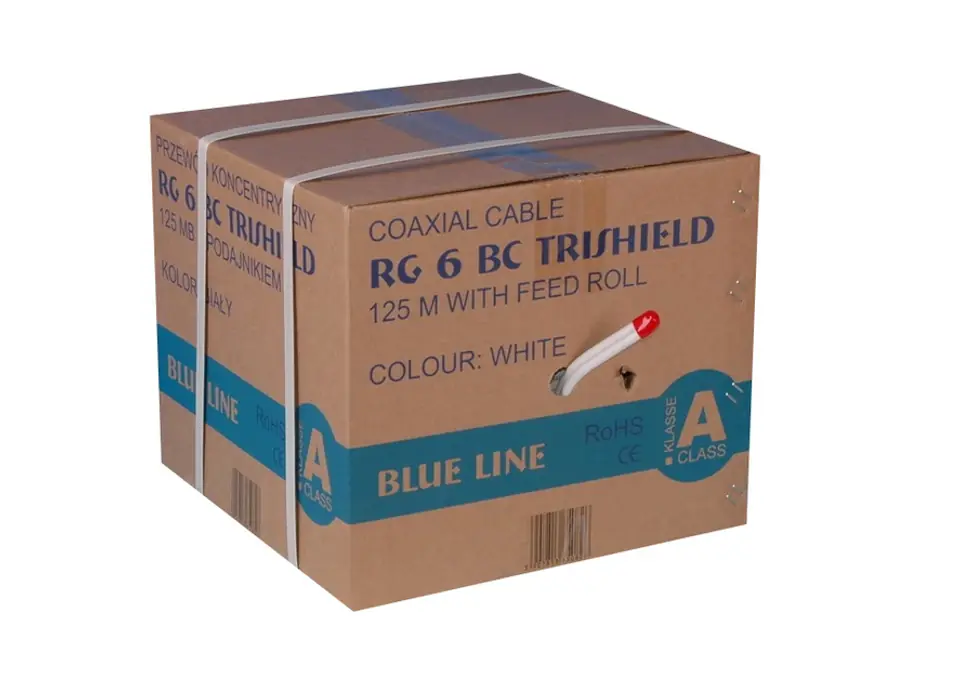

High quality white double coaxial cable with copper conductor. 125 m cable in a cardboard box with a feeder for easy and convenient unwinding of the cable.
Application to terrestrial, satellite and cable television antenna installations, in particular SMATV systems. The double cable greatly facilitates and speeds up the work of the installer.
Specifications
- outer diameter of the cable 7.04 mm
- conductive conductor diameter 1.02 mm
- diameter of the medium - 4,63mm
- percentage of braiding coverage - >77%
- shielding - >100 dB
- impedance -75 ± /-3 Ohm
- operating temperature range - -40 °C + 70 °C
- capacity -50 ± /-3.0pF
- minimum bending radius - 75mm
Standards met
- 89/336/EEC (CE)
- 2002/95/EC (RoHS)
- 2005/618/EC (RoHS)
RG6U BC Trischield Twin Cable Cardboard 125 m
