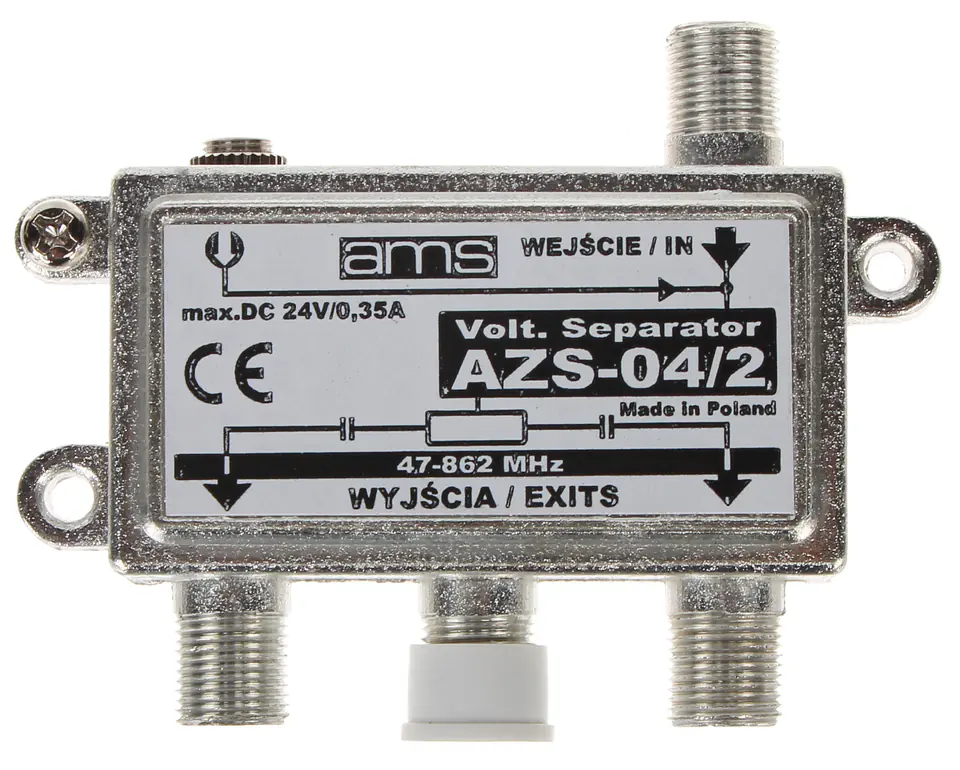

POWER SEPARATOR AZS-04/2
€6.24
Shipping from warehouse: D4
Estimated shipping: Tue, May 7 - Fri, May 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- AZS-04/2 / 5902887023163
Share this product:
Specification
| Dc passthrough (max.): | > 24 volts 0.35 A |
|---|---|
| Dimensions: | 100 x 30 x 30 mm |
| F sockets: | 75 Ω |
| Frequency band: | 47 MHz ... 862 MHz |
| Input/output separation: | > 22 dB |
| Match damping: | > 10 dB |
| Number of inputs: | 1 |
| Number of outputs: | 2 |
| Pass-through attenuation: | 4 dB ± 0.5 |
| Scales: | 0.060 kg |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
