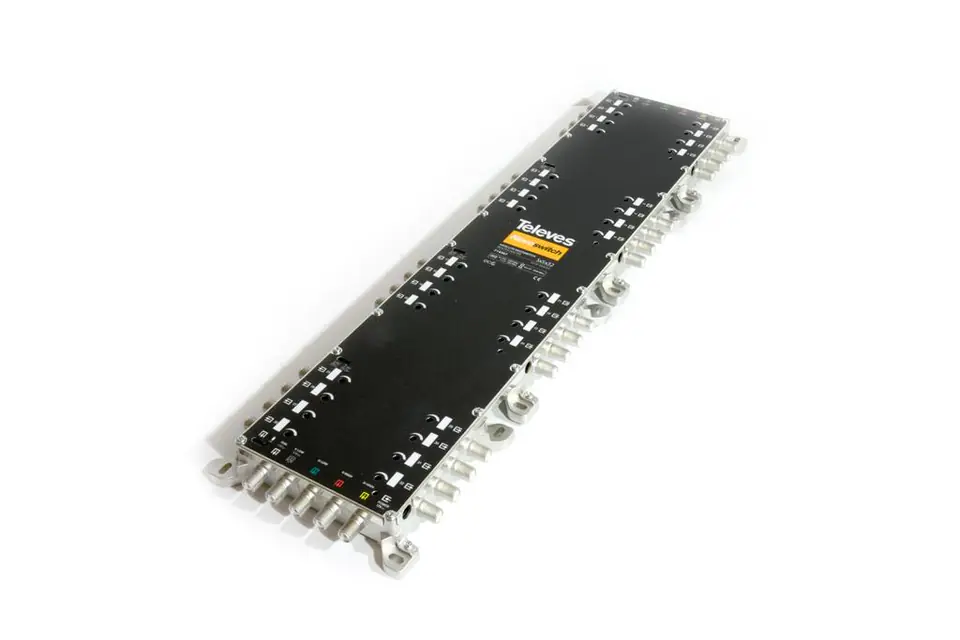

Nevoswitch from Televes 5x5x6 with 32 satellite inputs for one Quattro converter and 1 input from terrestrial TV antenna (dvb-t). The multiswitch has built-in resistors, where they can be set as terminal or cascade multiswitches by means of a switch. The devices are equipped with the ECO system, thanks to which power consumption decreases with a decrease in the number of connected users. Thanks to the refined housing, we obtain better shielding and heat output.
New NevoSwitch series
(... cast housing with increased shielding, ... signal flights, ... level adjustment at the outputs etc)
The multiswitch does not include a power supply. The power supply is required for the proper operation of the multiswitch. We recommend a universal power supply: Liteon 12V 3,33A DC 5,5/2,1mm.https://www.dmtrade.pl/p13625,power supply-pulse-for-multiswitchy-televes-liteon-12v-3-33a-dc-5-5-5-2-1mm.htmlDepening signs:
- Solid housing - better shielding and heat dissipation.
- Installation in a star or cascade topology (setting via switch).
- Independent output level setting for each user (except the QUAD Compatible range).
- ECO mode - small current consumption.
- Each output has an adjustable level of 12 dB (except Quad). Flexibility for maximum and minimum cable distances.
Main features:
- Small dimensions and compact design.
- Configurability.
- Independent linear gain.
- Multiple power options (Jack, via cassette column, ground input or output and user connectors).
- Independent level setting for each output.
- Compatible with other multiswitches in the column (DC passage through the column).
We wanted to remind you that these are multiswitches with the lowest electricity consumption:Below is an explanation, on the example of 5/8 multiswitches:
· Commercially available on the market Multiswitches 5/8 (Chinese, Turkish) draw power from the power grid at the level of – from 12 to 25 [W] (this can be easily checked on the websites of manufacturers or importers .
This explains why most multiswitches give off SO much heat :)
· The power consumption of our NevoSwitch 5/8 multiswitch for example 4 active SAT outputs is:
(12 V x 65mA) + (4 x 33mA* 13 V) = 2.496 [W]
That is, translating the records from the formula:
(power consumption of multiswitch 5/8) + (power consumption from SAT tuners – for 4 - ech users x 33 mA) = 2,496 [W]
How much money do we save annually by using our NevoSwitch 5/8 ?
(10 W x 24 h x 365 days) / 1000 x 0.62 PLN / KWh = at least 54 PLN (savings) per year
Explanation of the records from the formula :
(difference in power consumption of multiswitches x number of hours per day x number of days per year) / by 1000 to be in KWh x rate per KWh Energa Gdańsk = saving money
In larger systems, the savings will be proportionally greater .... So I invite you to plan your investment using TELEVES Eco devices – have power consumption, less heat loss = longer service life ....
714507 | Nr katalogowy | Nr katalogowy2 | Nr katalogowy3 | Nr katalogowy4 |
---|---|---|---|---|
5X5X32 | Rodzaj | Rodzaj | Rodzaj | Rodzaj |
950-2400 | Zakres częstotliwości | MHz | SAT | SAT |
47-862 | Zakres częstotliwości | MHz | TER | TER |
105 | Maks. poziom wejściowy | dBµV | SAT | EN50083-3 / IM35dBc |
95 | Maks. poziom wejściowy | dBµV | TER | DIN 45004-B |
- | Maks. wzmocnienie | dB | SAT | SAT |
- | Maks. wzmocnienie | dB | TER | TER |
- | Equalizer | dB | SAT | SAT |
- | Equalizer | TER | dB | TER |
12 ± 5 | Straty przejścia | dB | SAT | SAT |
10 ± 3 | Straty przejścia | TER | dB | TER |
7 | Straty odgałęzienia 1 | dB | SAT | A2 |
8 | Straty odgałęzienia 1 | B2 | SAT | dB |
5 | Straty odgałęzienia 1 | TER | dB | Typ. |
>30 | Izolacja IN-OUT | dB | SAT | SAT |
250 | Zasilanie LNB | mA | LNB/TER | Maks we. |
1 | Zasilanie LNB | A | LNB/TER | Razem |
12 | Zasilanie | Vdc | Vdc | Vdc |
In-Out / Out-In 3 | Przejście DC | Przejście DC | Przejście DC | Przejście DC |
235 ± 25 | Maks. pobór prądu | mA | Zasilacz 12Vdc (PWR) | Zasilacz 12Vdc (PWR) |
334 | Maks. pobór prądu | mA | Odbiornik (12/18V) | Odbiornik (12/18V) |
-5...+45ºC | Temperatura pracy | ºC | ºC | ºC |
IP20 | Stopień ochronny | IP | IP | IP |
1600 | Waga | g | g | g |
140x510x30 | Wymiary | mm | mm | mm |
