Remark! For unloaded outputs, 75 Ω

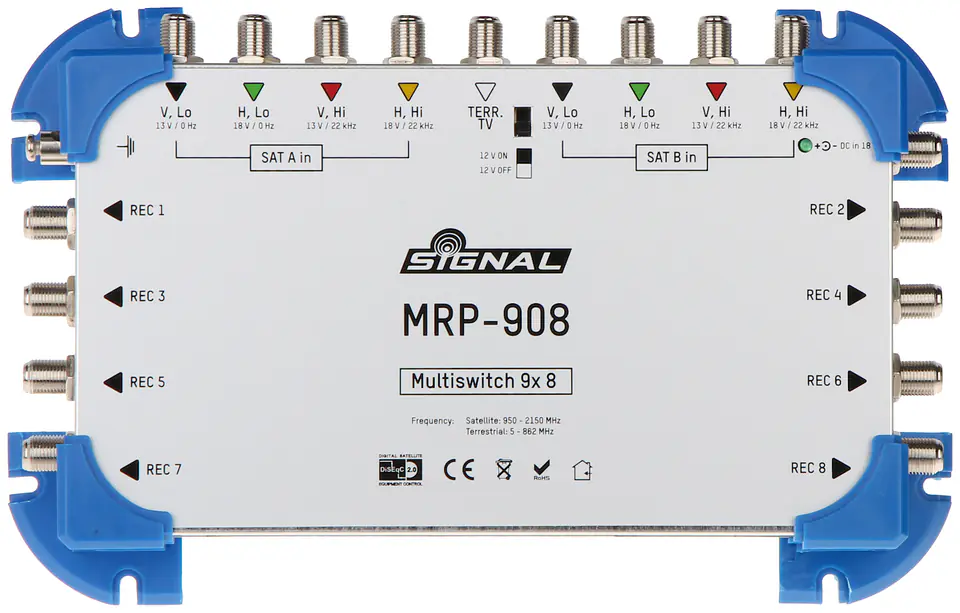

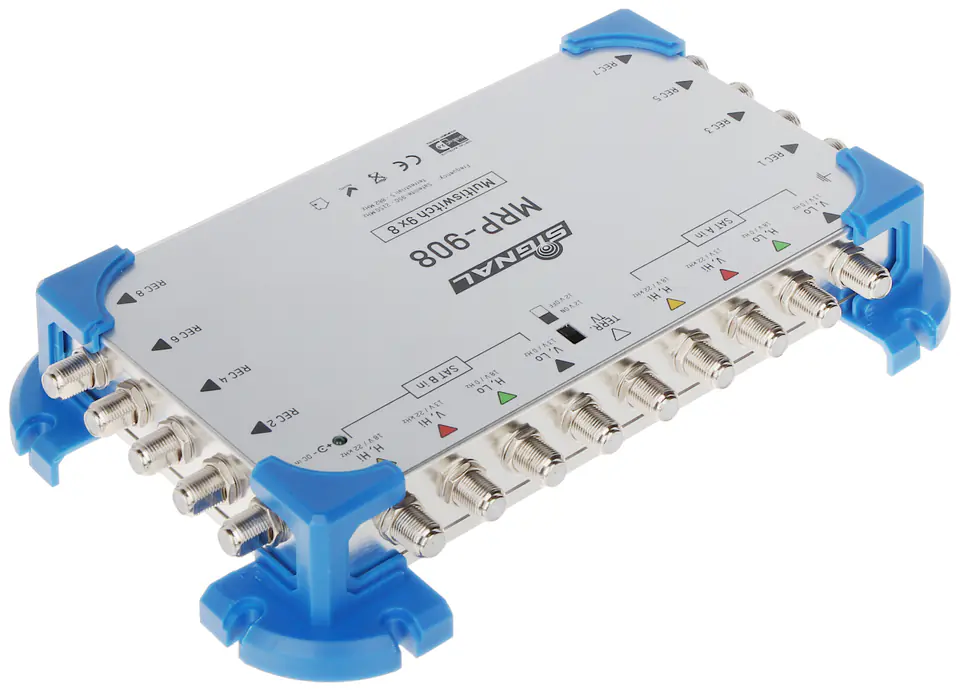

MULTISWITCH MRP-908 (9 INPUTS/8 OUTPUTS SIGNAL)
€47.44
Shipping from warehouse: D4
Estimated shipping: Tue, May 14 - Fri, May 17
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- MRP-908 / 5907634599205
Share this product:
Specification
| Attenuation of the tv branch:: | 14 dB ± 1.5 dB |
|---|---|
| Dimensions:: | 222 x 142 x 42 mm |
| Inputs:: | 8x 950 MHz ... 2150 MHz1x 5 MHz ... 862 MHz |
| Manufacturer / brand:: | Signal |
| Maximum sat output level:: | 100 dBμV |
| Maximum tv output level:: | 100 dBμV |
| Output:: | 8x 47 MHz ... 2150 MHz |
| Power supply for preamplifiers:: | 12 VDC |

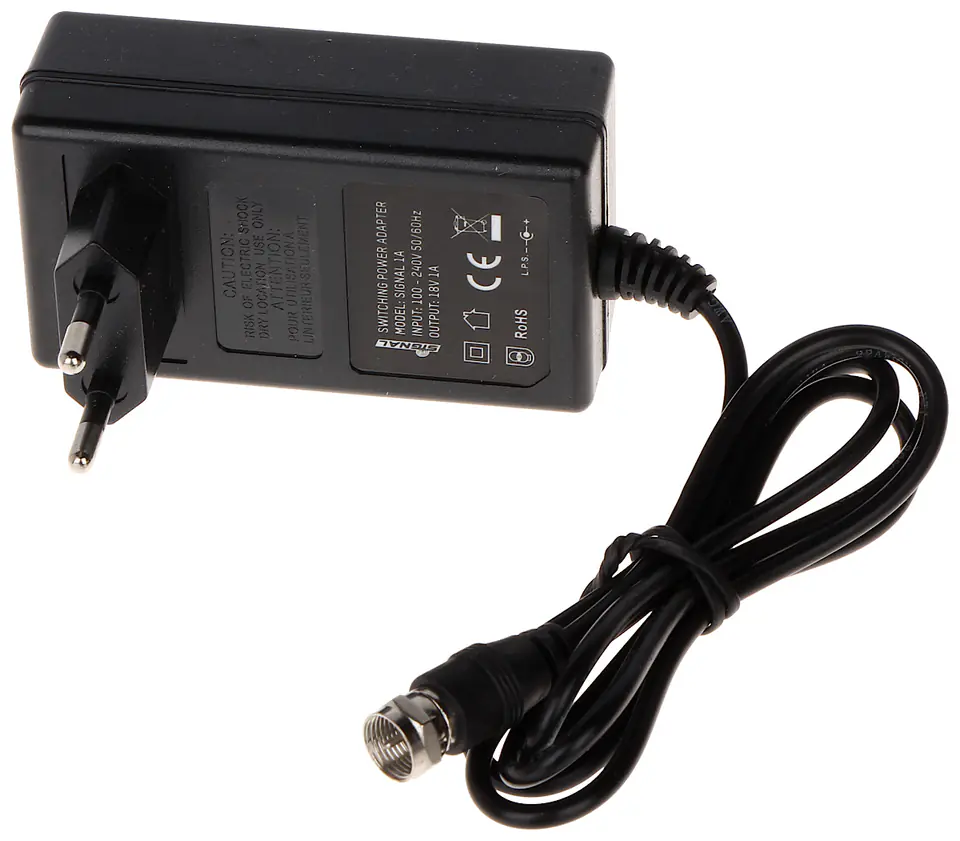

| Power:: | 18 V DC / 1 A (power supply included) |
| Sat branch attenuation:: | 3 dB |
| Scales:: | 0.44 kg |
| Switching signals:: | 13 V / 18 V0 Hz / 22 kHz |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
