| Dimensions:: | 253 x 135 x 52 mm |
|---|---|
| Inputs:: | 8x 950 MHz ... 2400 MHz1x 47 MHz ... 790 MHz - Active - Built-in LTE1x 5 MHz filter ... 862 MHz - Passive |
| Manufacturer / brand:: | TERRA |
| Maximum sat output level:: | 93 dBμV |
| Maximum tv output level:: | 85 dBμV |
| Output:: | 8x 5 MHz ... 2400 MHz |
| Power supply for preamplifiers:: | 12 VDC |
| Power:: | 230 VAC |
| Sat gain (cable correction):: | 8 ... 14 dB |
| Scales:: | 1.37 kg |
| Separation:: | Between SAT/SAT inputs > 30 dB outputs > 30 dB SAT outputs > 30 dB DVB-T |
| Switching signals:: | 14 V / 18 V0 Hz / 22 kHzDiSEqC 2.0 |
| Tv gain (cable correction):: | 0.5 ... 5 dB |
| Warranty:: | 2 years |

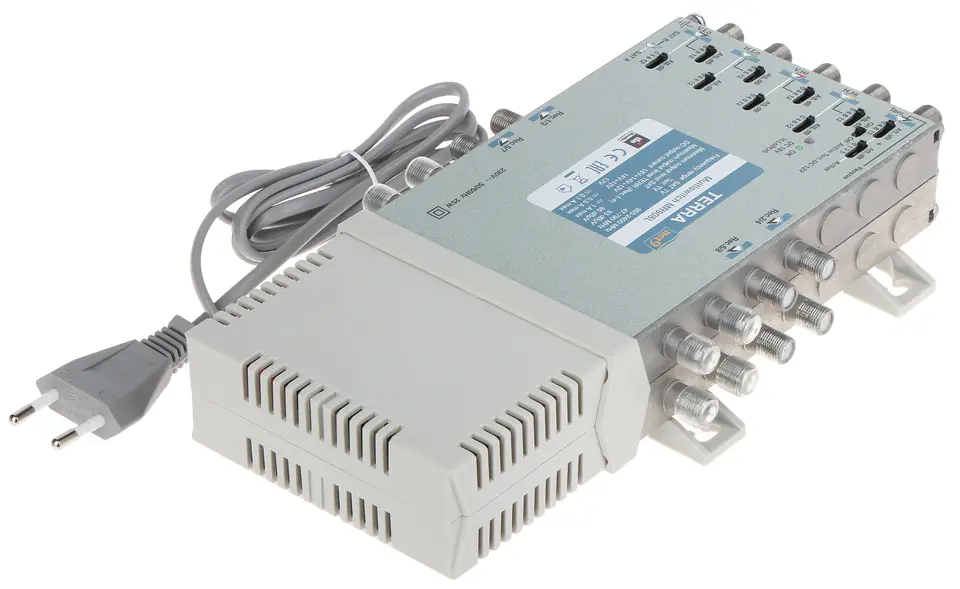

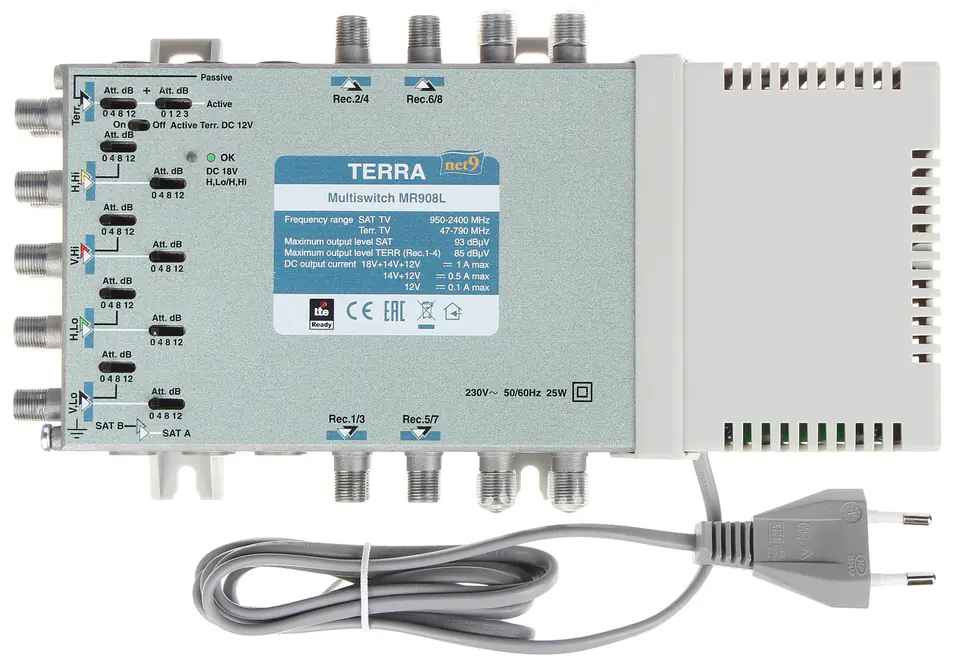

MR series radial multiswitches are dedicated for small and medium -sized (4-70 outlets) installations with distribution of sat intermediate frequency signal and terrestrial TV signal
The MR series is designed for installation in systems wholly or partly based on the star topology, in which the cables from the end sockets converge at the installation site of a multiswitch or a group of multiswitches. They are therefore ideal for use in single- or multi-family houses
