With the OPTICUM dCSS multiswitch we are setting a new path that significantly simplifies the procedure of installing single-cable TV systems. In addition to the EN50494 and EN5060 protocols, our system has additional setting options.

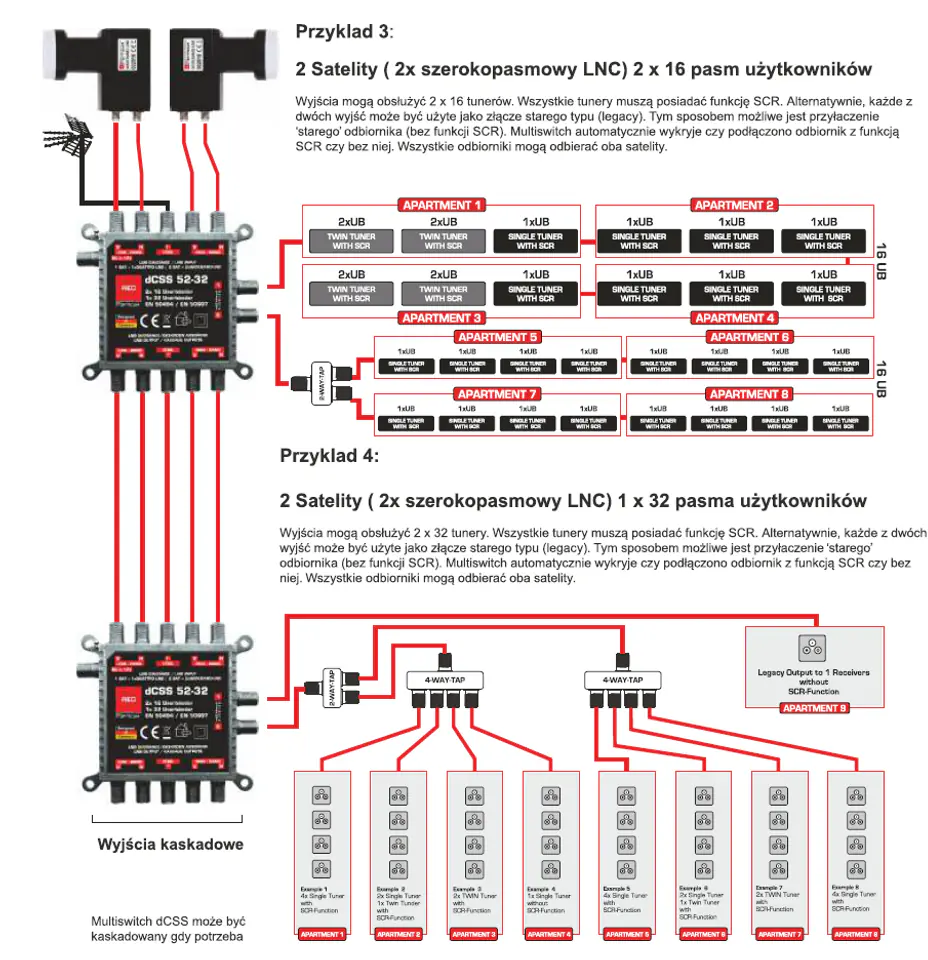

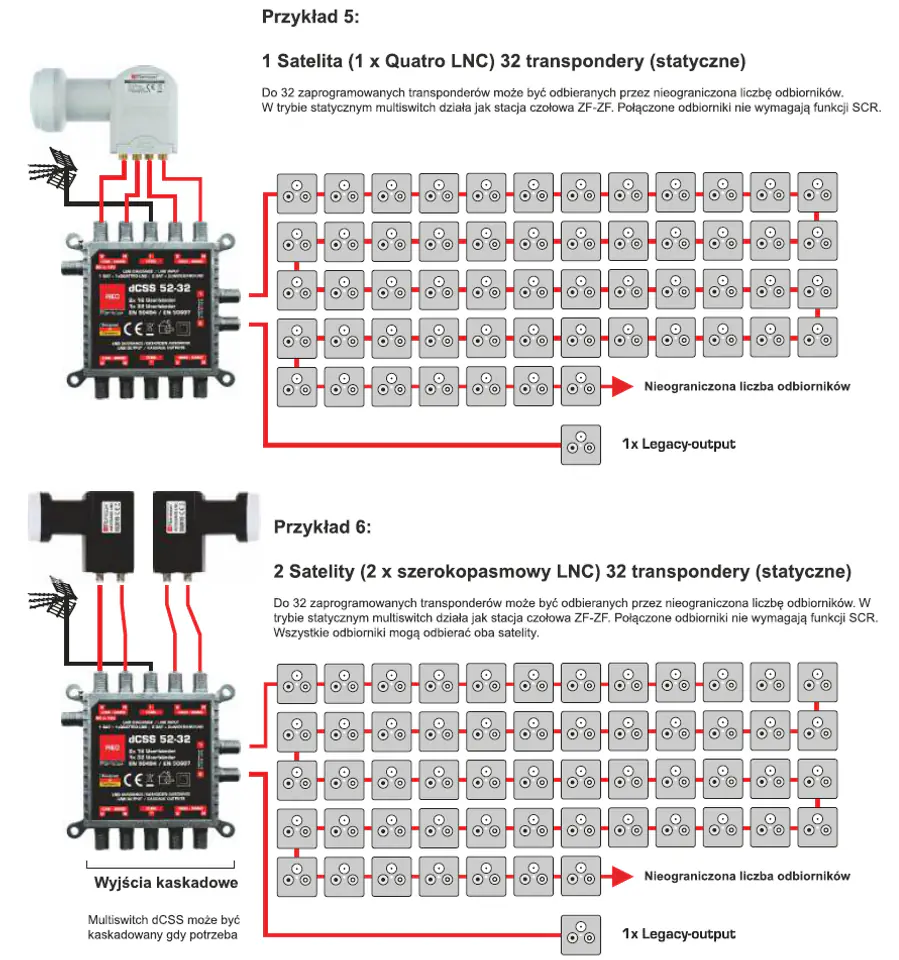

Whether it is SatCR with 4 in dynamic mode with 4-band for users, or SkyQ (dSCR) with 8 user bands, or dCSS with 2 outputs with 16 user bands or 1 with 32 user bands, automatic legacy lun in static mode (ZF-IF headend)
with up to 32 fixed transponders, the small Multiswitch dCSS includes all these functions.
It does not matter whether 1 satellite is to be received using a standard QUATRO LNC or 2 satellites using broadband LNCs (broadband frequency range 290-2340MHz)

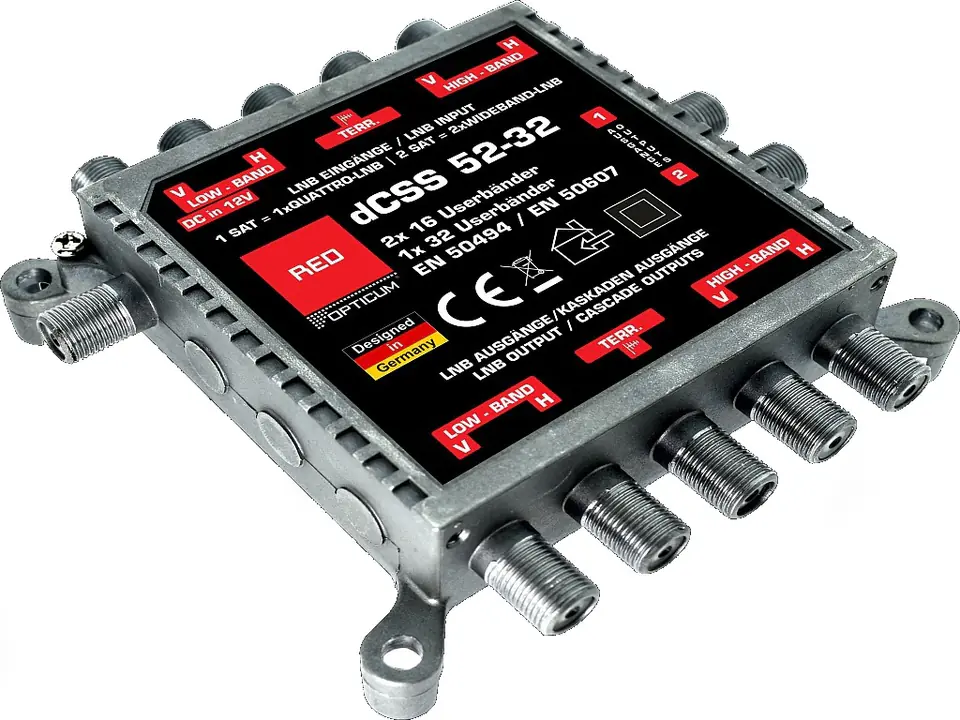

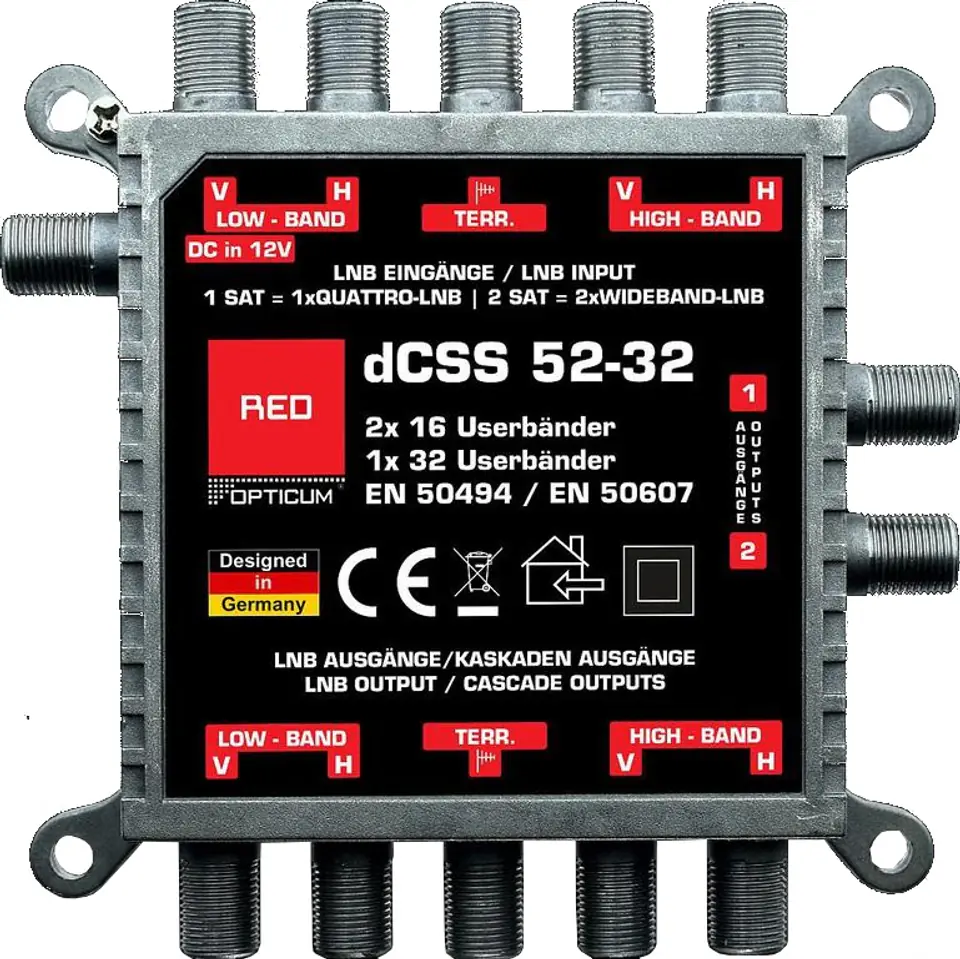

The small multiswitcvh dCSS is housed in a sturdy die-cast aluminium housing and can be easily mounted.
The housing has built-in grounding terminals and provides good ventilation (at the back) as well as installation thanks to the distance from the wall.
The highest quality connectors ensure a constant, high quality of reception.
Power supply included 12V 1000mA.
At the customer's request, the multiswitch can of course be programmed with other parameters in static mode and dynamic mode! In static mode for operators: NC+ for UltraBox+, Cyfrowy Polsat Evobox 1 and Evobox 2 receivers.Dynamic mode then the progamated multiswitch is 32 satellite transponders for not limited number of signal recipients.

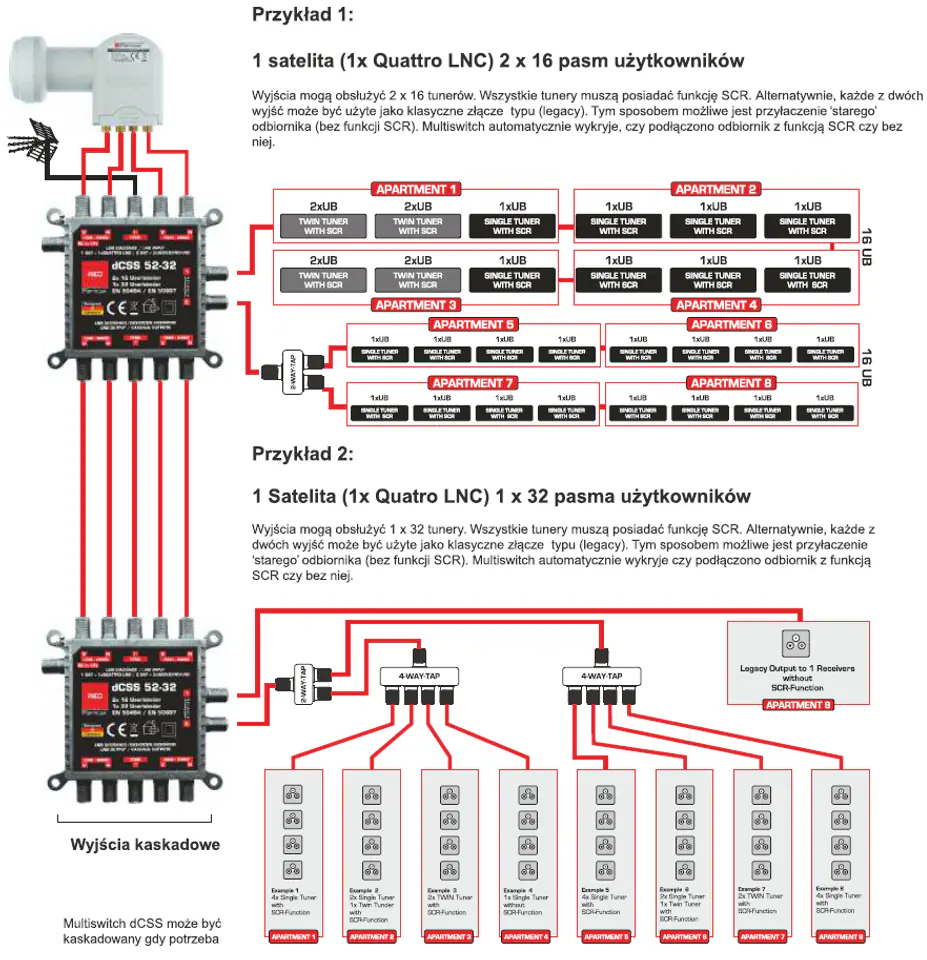

Opticum DCSS 52-32 multiswitch programmed in the following configuration: Factory standard 2x 16UB output:
1 1210MHz
2 1420MHz
3 1680MHz
4 2040MHz
5,984MHz
6 1020MHz
7 1056MHz
8 1092MHz
9 1128MHz
10 1164MHz
11 1256MHz
12 1292MHz
13 1328MHz
14 1364MHz
15 1458MHz
16 1494MHz
