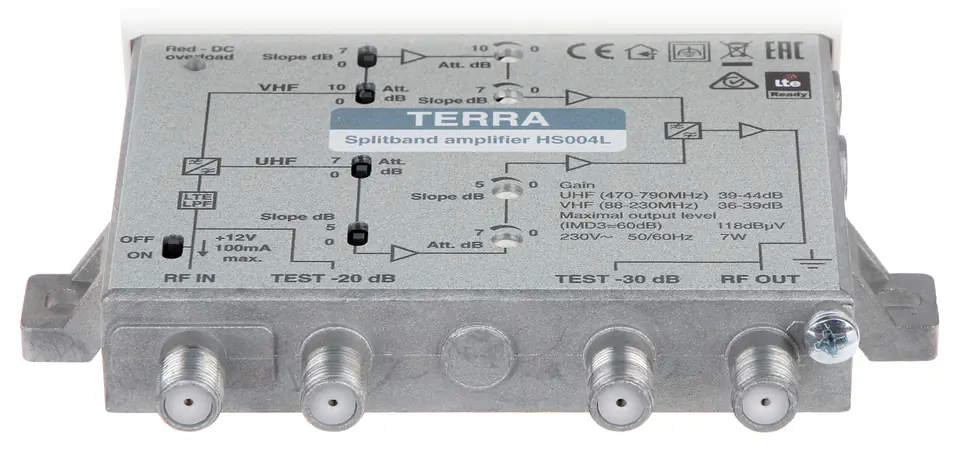

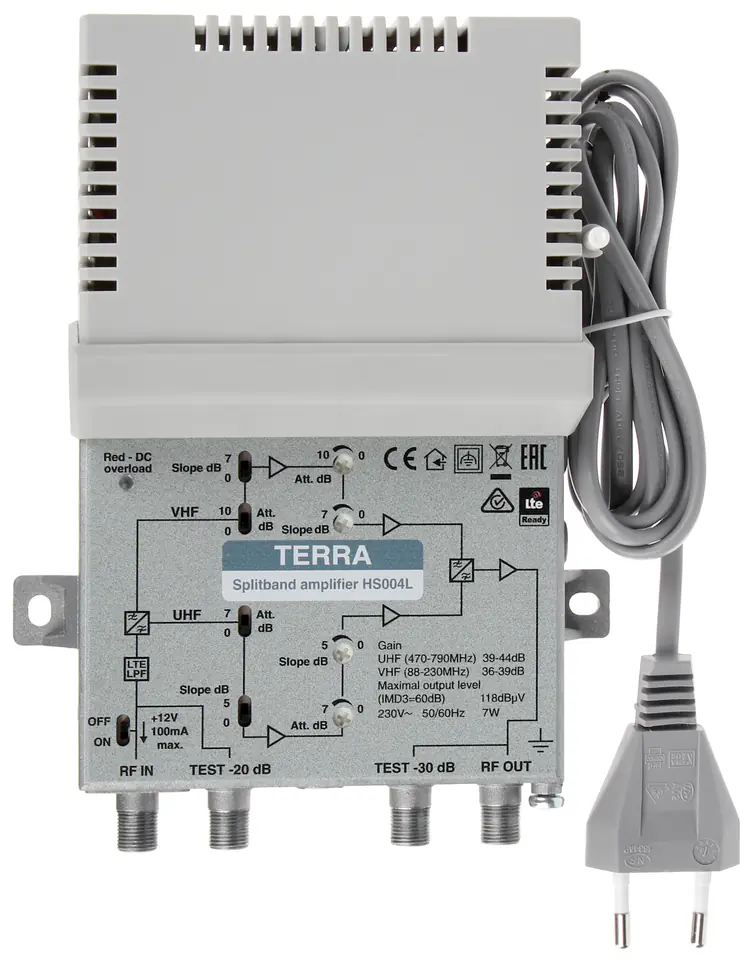

MULTI-BAND AMPLIFIER HS-004L
PLN 314.73
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 4 - Fri, Nov 7
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- HS-004L / 5902887050091
Share this product:
Specification
| Adjustment of the slope of the characteristics:: | 14 dB @ VHF ,10 dB @ UHF |
|---|---|
| Amplification:: | 36 dB ... 39 dB @ VHF39 dB ... 44 dB@UHF |
| Dimensions:: | 179 x 135 x 52 mm |
| Frequency range:: | 88 MHz ... 230 MHz - VHF, 470 MHz ... 790 MHz - UHF |

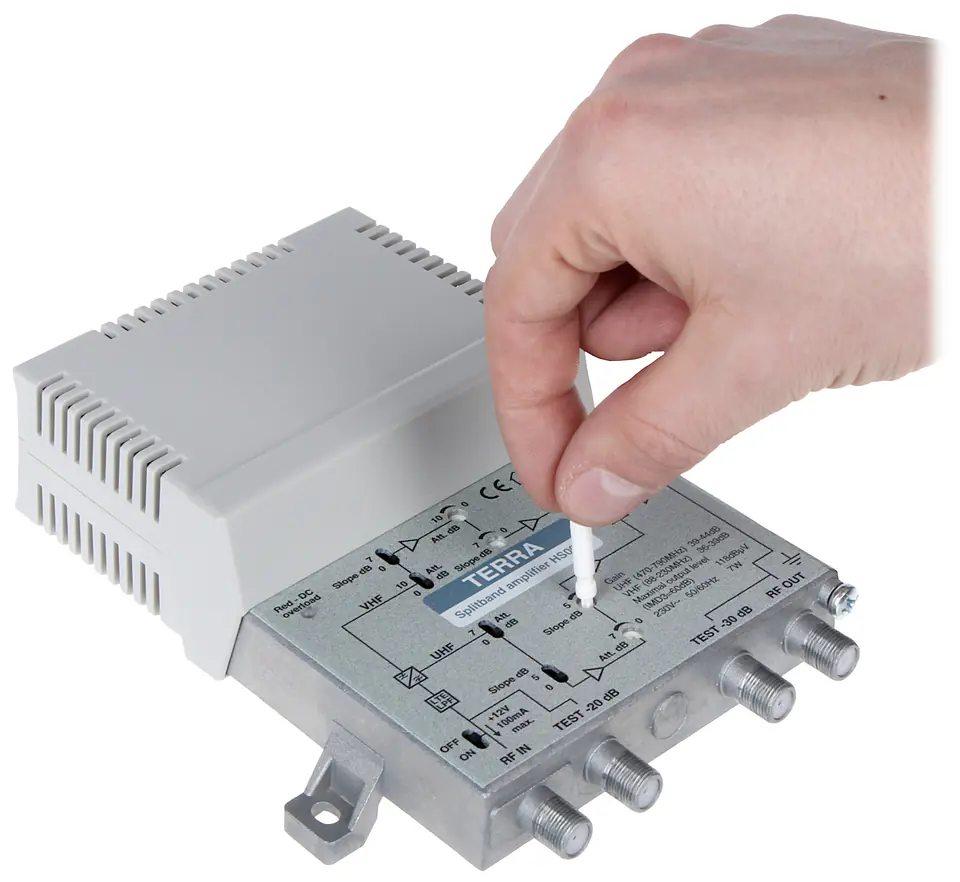

| Gain adjustment:: | 0 dB ... 20 dB@VHF, 0 dB ... 14 dB@UHF |
| Maximum output level imd3=60 db din45004b:: | 121 dBμV |
| Noise ratio:: | < 6 dB |
| Number of inputs/outputs:: | 1/1+2 (2 x Test: -30dB, -20dB) |
| Operating temperature:: | -20 °C ... 50 °C |
| Power consumption:: | 5 watts |
| Power:: | 230 VAC |
| Scales:: | 0.68 kg |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
