The MOD/SIG-420/DVB-T digital modulator allows you to enter HD signals (from a camera, terrestrial TV receiver, satellite, Blu-ray player, DVD player, etc.) from HDMI input to RF OUT output in the form of DVB-T (COFDM), Full HD 1080p in the VHF/UHF band
MODULATOR DVB-T MOD/SIG-420/DVB-T
PLN 584.24
Shipping from warehouse: D4
Estimated shipping: Thu, Oct 30 - Mon, Nov 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- MOD/SIG-420/DVB-T / 5902887050350
Share this product:
Specification
| Coding:: | H.264 |
|---|---|
| Dimensions:: | 150 x 115 x 32 mm |
| Egress:: | 1 pc. RF (F) |
| Frequency range (channels) rf output:: | 50 ... 860 MHz |

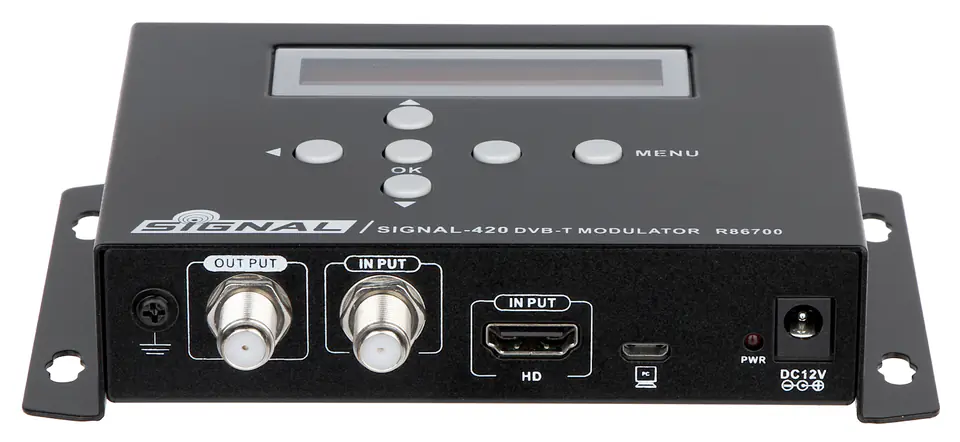

| Inputs:: | 1 pc. HDMI, Full HD 1080p ,1 pc RF (F) |
| Modulation type:: | 64-QAM |

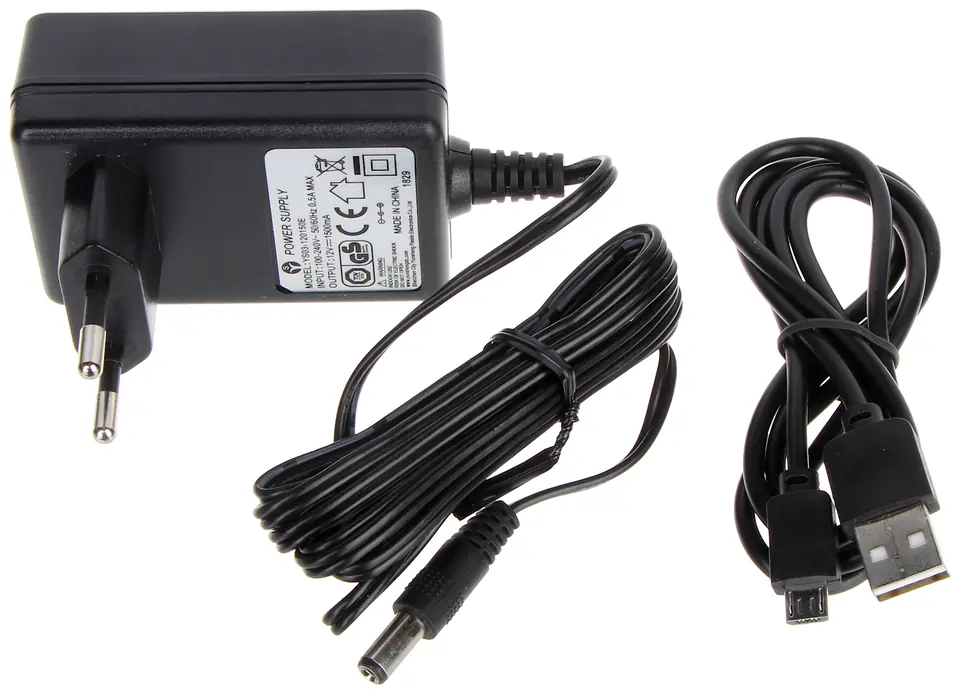

| Power:: | 12 V DC / 1.5 A (power supply included) |
| Rf output level adjustment:: | 70 ... 100 dBμV |
| Scales:: | 0.44 kg |
| Selected features:: | Software update via USB cable Aspect ratio 5:4, 16:9 MER ≥ 35 dB |
| Supported hdmi resolutions:: | 720p @ 50 / 60 fps1080i @ 50 / 60 fps1080p @ 50 / 60 fps |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
