The MHD-001P digital modulator allows you to enter HD signals (from a camera, terrestrial TV receiver, satellite, Blu-ray player, DVD player, etc.) from HDMI input to RF OUT output in the form of DVB-T (COFDM), Full HD 1080p in the VHF/UHF band
MODULATOR DVB-T MHD-001P TERRA
This product is not available
- Availability:
- expected delivery
- Brand:
- Product code:
- MHD-001P / 5902887050114
Share this product:
Specification
| Coding:: | MPEG-4 AVC/H.264 |
|---|---|
| Dimensions:: | 133 x 63 x 39 mm |
| Egress:: | 1 pc. RF (F) |
| Frequency range (channels) rf output:: | 174 ... 230 MHz ; 470 ... 862 MHz |
| Inputs:: | 1 pc. HDMI, Full HD 1080p 1 pc RF (F) |
| Manufacturer / brand:: | TERRA |
| Modulation type:: | 64-QAM |

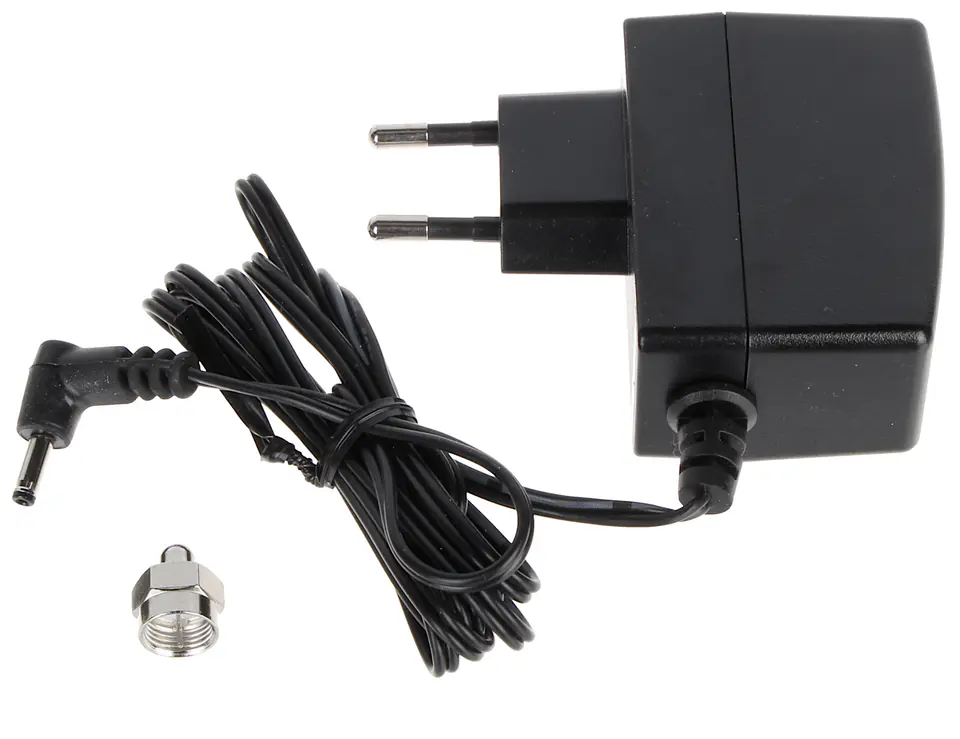

| Power:: | 12 V DC / 1 A (power supply included) |
| Rf output level adjustment:: | 60 dBμV ... 90 dBμV |
| Scales:: | 0.17 kg |
| Selected features:: | The selection of the channel is made using the buttons The built-in display shows the currently used channel Adjusting the signal level at the output : 0 ... 30 dB |
| Supported hdmi resolutions:: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p @ 24/50/60 fps |
| Warranty:: | 2 years |
