Satellite meter Megasat HD7 Combo DVB-T/T2/S/S2/C/C2/DAB+
Measurement of all receiving signals (satellite, cable, terrestrial, DAB+) on the 8.9" touch display. Spectrum and constellation diagram for error analysis. Automatic satellite detection (NIT). Integrated receiver with live TV playback. LED on the back panel. DiSEqC monitor for reading device switching commands.

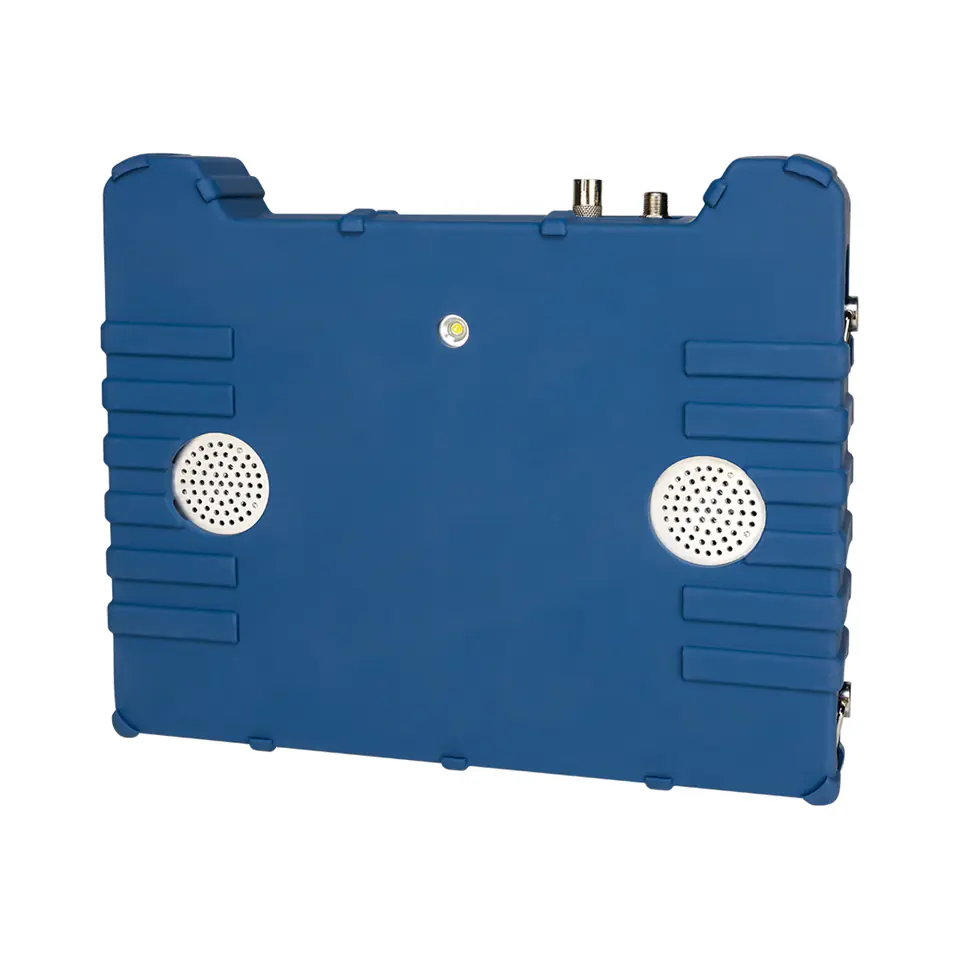

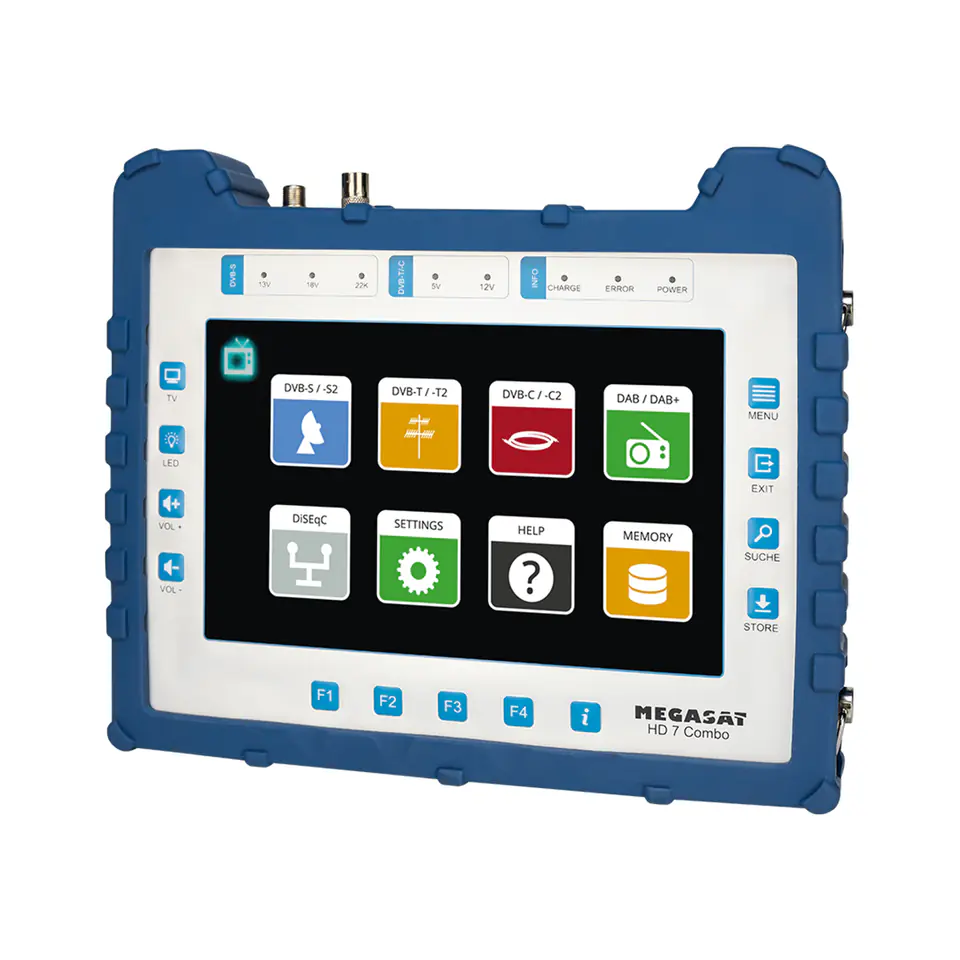

The HD 7 Combo satellite meter can be used to measure TV and radio signals. It offers accurate measurement for satellite, cable and terrestrial TV (including DVB-T2 HD). Thanks to DAB/DAB+ measurement, digital radio measurements can also be taken. The entire housing is made of durable and high-quality aluminum, which is built into an 8.9-inch color touch display. A small highlight is the LED mounted on the back of the housing, thanks to which measurements can be made even in low light conditions. Thanks to the clear and well-designed menu, operation is child's play. All measuring functions are easily accessible and almost self-explanatory.

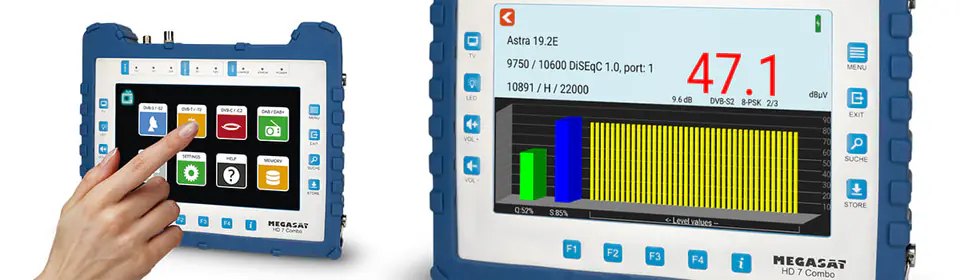

To position the mirror, you must first get an idea of the level and quality of the signal. They can be switched to a large display by pressing the magnifying glass symbol to make the most of the display. In order to check the live TV image after the measurement, the measuring device offers an integrated receiver. It is possible to play all free-to-air digital channels in SD, HD and UHD. In addition, a list of channels with the most popular channels is pre-installed, which can also be individually adapted to your needs. If the channels or frequencies change, you can search for them using the menu.

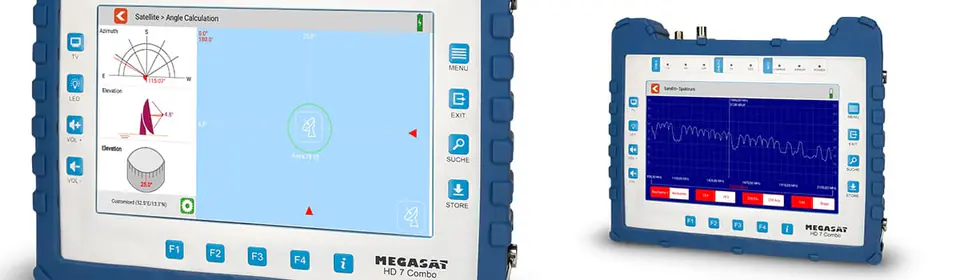

To evaluate the satellite system's signal and analyse possible reception errors, spectrum analysis should be used. They find errors faster and can quickly adjust the satellite system to ensure the best possible reception. Constellation analysis provides further insight into satellite signal reception to evaluate the signal and eliminate sources of error. You can immediately see whether the signal reaches us in the form of a beam or scattered. In addition, additional measurement data such as dBm, CNR, BER can be displayed on the display.
The integrated compass and angle calculation helps determine the vertical and horizontal angle of the antenna, as the height and azimuth vary depending on the location. Simply enter the location data and the meter will quickly calculate the appropriate angular settings for the mirror. This makes it easier to find the desired satellite. Thanks to Automatic Satellite Recognition (NIT), you will be immediately informed which satellite you are on. This makes attempts to equalize lasting a few minutes a thing of the past.

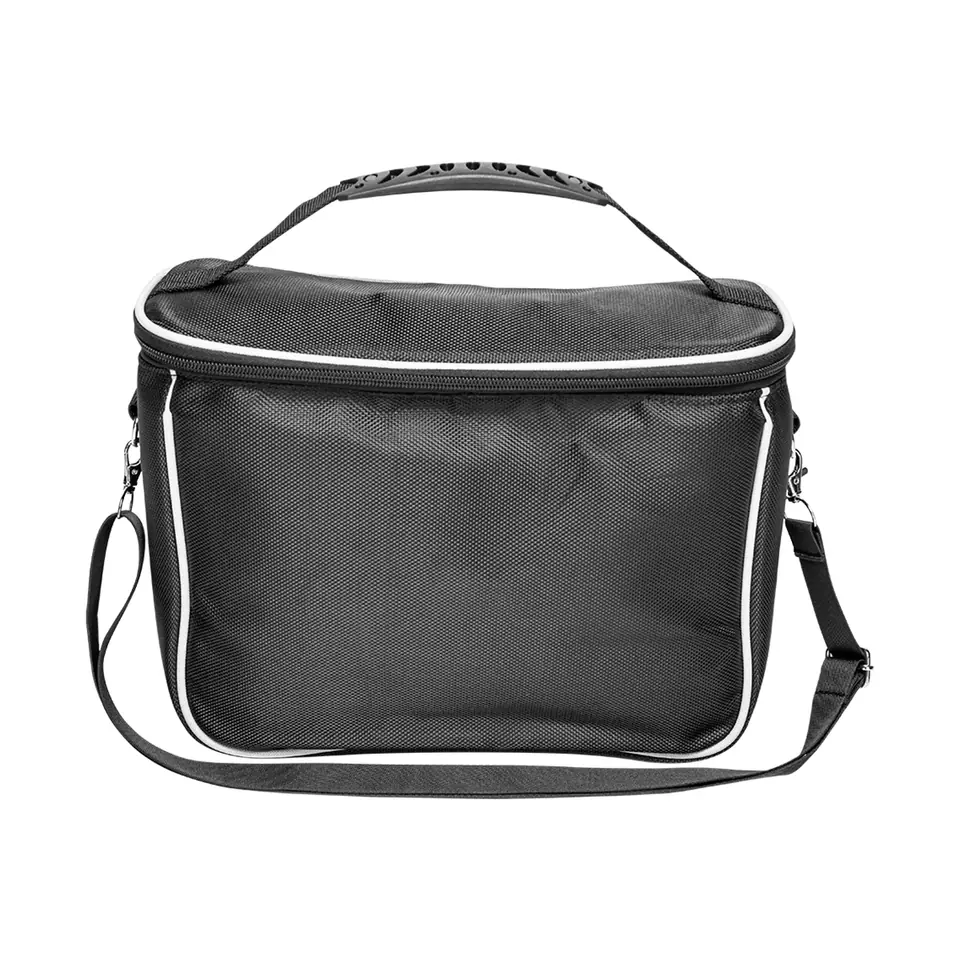

Integrated power supply battery provides up to 4 hours of use. It can be charged with a standard 230V power adapter or with the included car adapter while driving. A closed protective cover with a carrier strap protects the measuring instrument from dirt and splash water. The measurement data must be saved on a USB memory device for later analysis. List of programs You can also export and install future firmware updates via USB.
- 8.9" (22.6 cm) colour touchscreen
- SD/HD/FHD video output: 480i/p,576i/p,720p,1080i/p,4Kx2K
- Measurement of all types of reception
- DVB-S/S2/C/C2/T/T2 H.264/H.265/DAB/DAB+
- Live TV playback
- Visual and audible indication of signal level
- Spectrum and constellation
- DiSEqC Switch Command Control
- Integrated speaker for TV playback
- LED rear lighting for poor visibility
- High quality and stable aluminum housing
- USB port for firmware update and
- Store a list of transmitters and measurement data
- Screw terminals for easy replacement of F sockets
- Power switch and auto standby
- Reset button
- Digital User Guide
- Power supply: AC 100-240V / DC 12V, 2A
- Li-Ion battery (7,4 V / 5000 mA/h)
- Frequency Range: 950 - 2150MHz
- Input Level Range: 35~100dBμV
- LNB voltage: 13/18 V, max. 300 mA
- Measurement of current consumption by LNB in mA
- Short-circuit indication and LNB protection
- Indicators: CNR/LKM/CBER/LBER/PWR Strength/quality dBμV/dBm.
- DiSEqC 1.0 / 1.1 / 1.2 / USALS / Auto DiSEqC
- Unique I and II (EN 50494 / EN 50607)
- TV search mode: Automatic, Blind scan, Manual
- Transponder control (identification of reception levels)
- Calculation of rotation and tilt angles including compass
- NIT inspection and satellite evaluation
- Frequency Range: 42 - 1002MHz
- DVB-T displays: PWR/CBER/LBER/MER/TS Bitrate/TSID/ONID
- DVB-C displays: PWR/CNR/LBER/CBER/ONID/TSID/TS Bitrate.
- Level Range: 30~100dBμV
- Scope display / Tilt display
- Automatic and manual search for programs
- DAB/DAB+ signal measurement and testing
- Playback of DAB/DAB+ programs
- Measured values for Level dBμV, SNR, CNR, ACQ, EID
- Measurement and control of DiSEqC switching commands

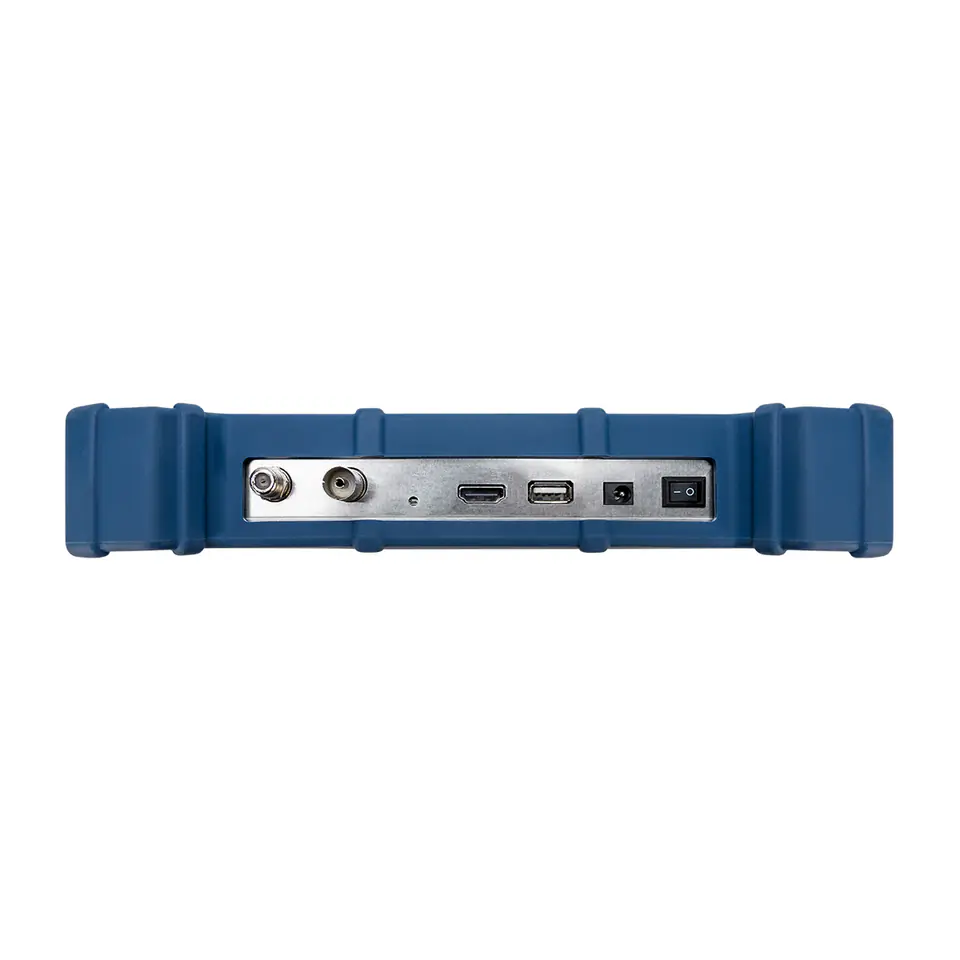

- 1x USB connector
- 1x DV Out
- 1x F connection
- 1x RF Connection
- 1x 12VDC input
