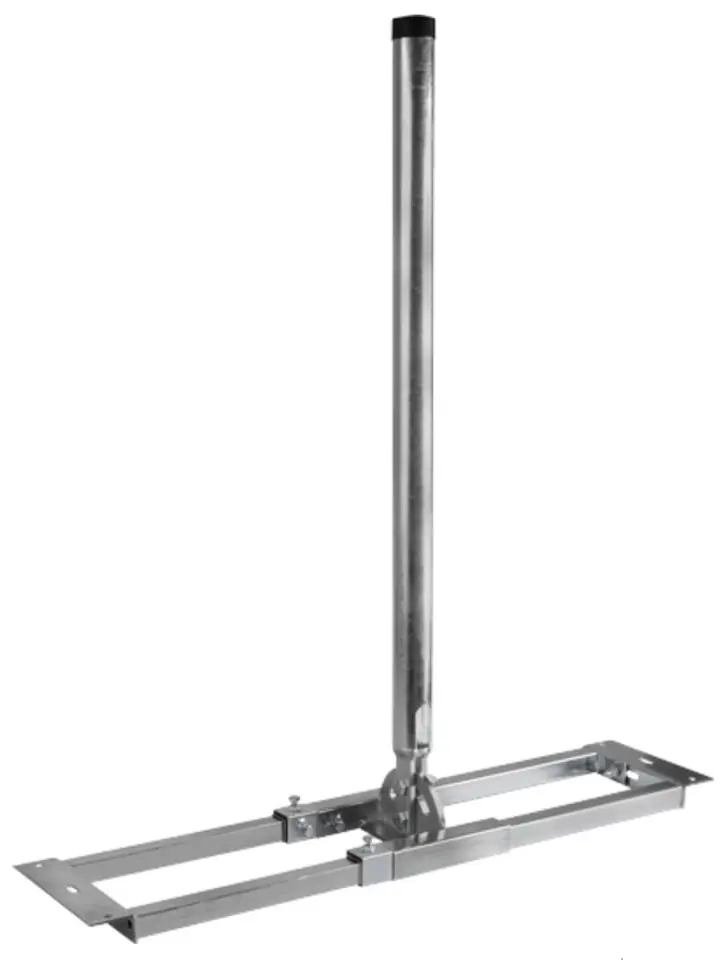

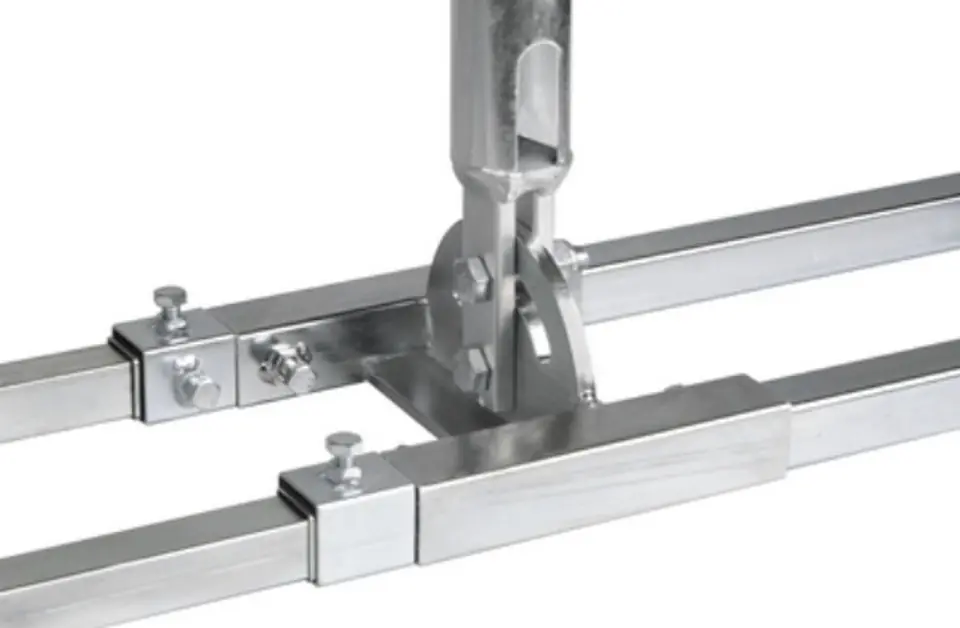

The bracket for the rafters of the roof is a structure that allows you to attach an antenna mast - attaching the bracket to the elements of the roof structure.
The set includes an antenna mast with a height of 1m.

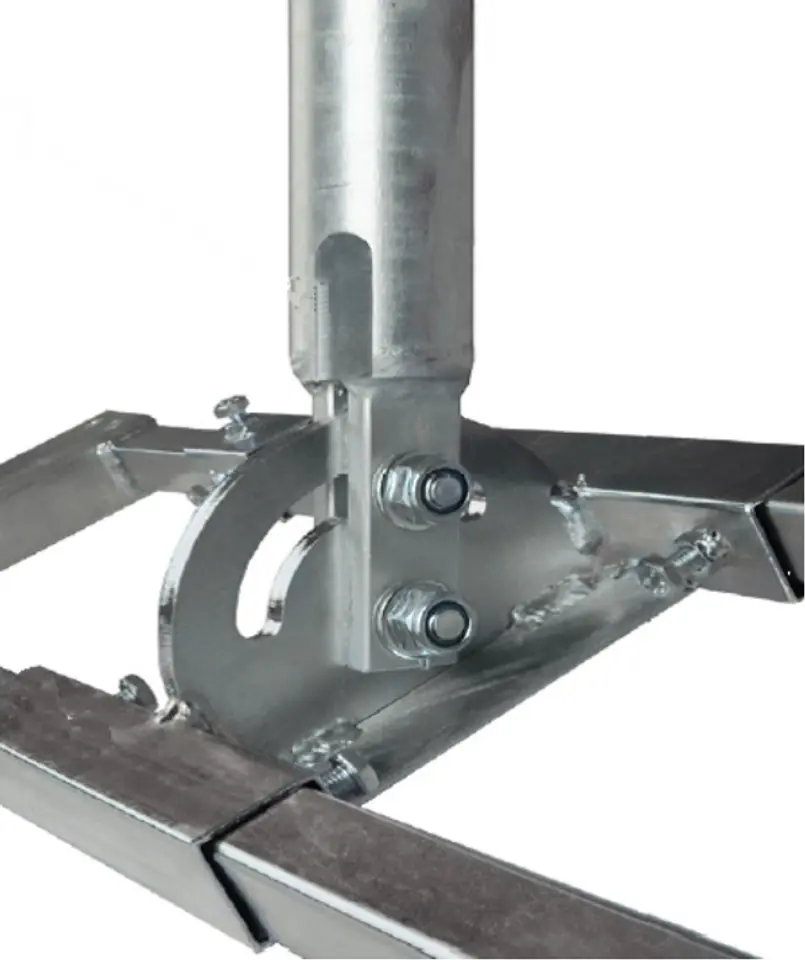

The milled groove in the lower part of the mast together with an additional mast cap allows wiring from the antenna.
Characteristic parameters:
- maximum mirror dimension of the satellite dish 90 cm.
- mast made of pipe 48.3 x 2 with a length of 1000 mm, hot-dip galvanizing.
- spacing of rafter beams min. 520 , max. 860 mm. (measured between beams)
- weight 12.6 kg.
Mast holder for roof rafters 100cm with base
This product is not available
- Availability:
- expected delivery
- Brand:
- Blue Line
- Product code:
- 5907813651038
Share this product:
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
