Maclean MCTV-477 gelled coaxial cable designed for the construction of internal and external antenna installations. Suitable for both satellite and terrestrial TELEVISION.
The thick 1mm cable core with double shielding guarantees very high electrical parameters and extremely low signal attenuation.
The gel coating protects the cable from harmful external factors, including moisture, so it can be laid directly in the ground.
Specification

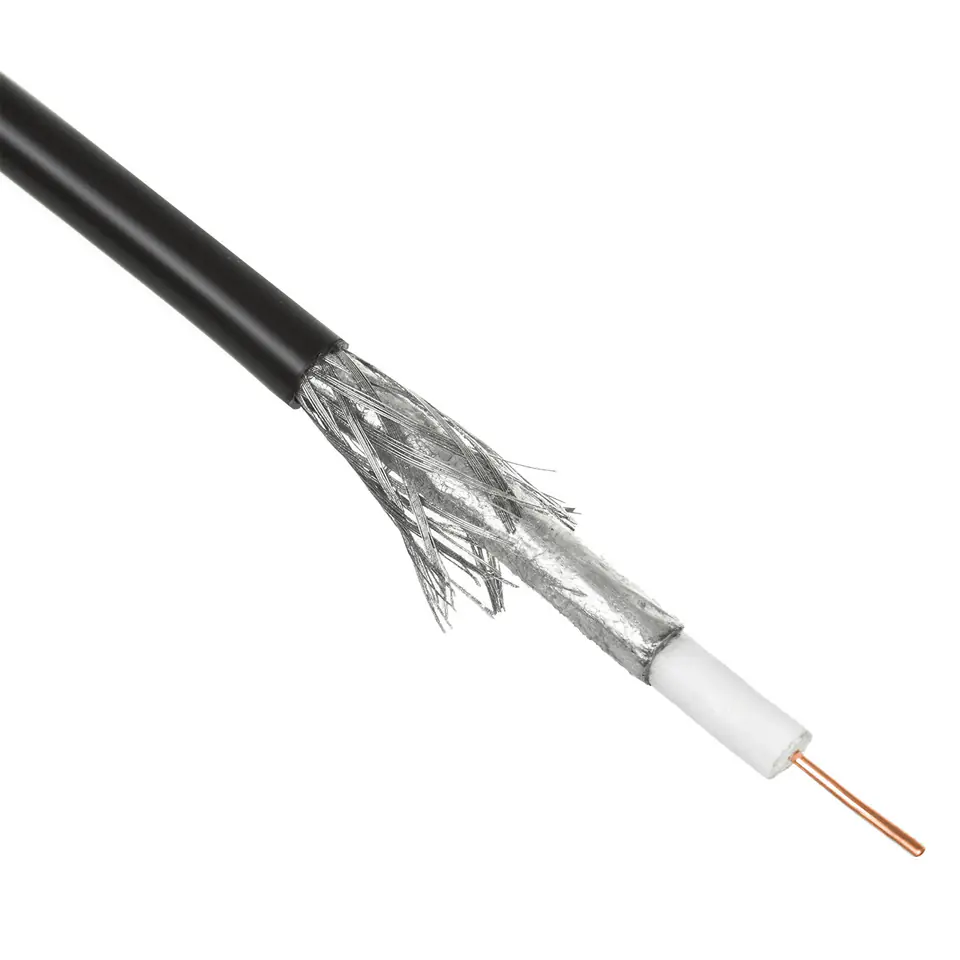

- Impedance: 75 Ohm
- Inner core: copper (Cu)
- Core diameter: 1.00 mm
- Dielectric: Physically foamed polyethylene (PE)
- Dielectric diameter: 4.6 mm
- First screen: Al/PET film
- Second screen: aluminum wire braid 96x0.12mm
- Outer jacket: polyethylene (PE)
- Cable outer diameter: 6.8 mm
- Core resistance: 21.91 Ohm/km
- External conductor resistance: 32.12 Ohms/km
- Unit capacity: 50 pF/m
- Wave shortening coefficient: 85.5%
- Minimum bending radius: 70 mm
Includes

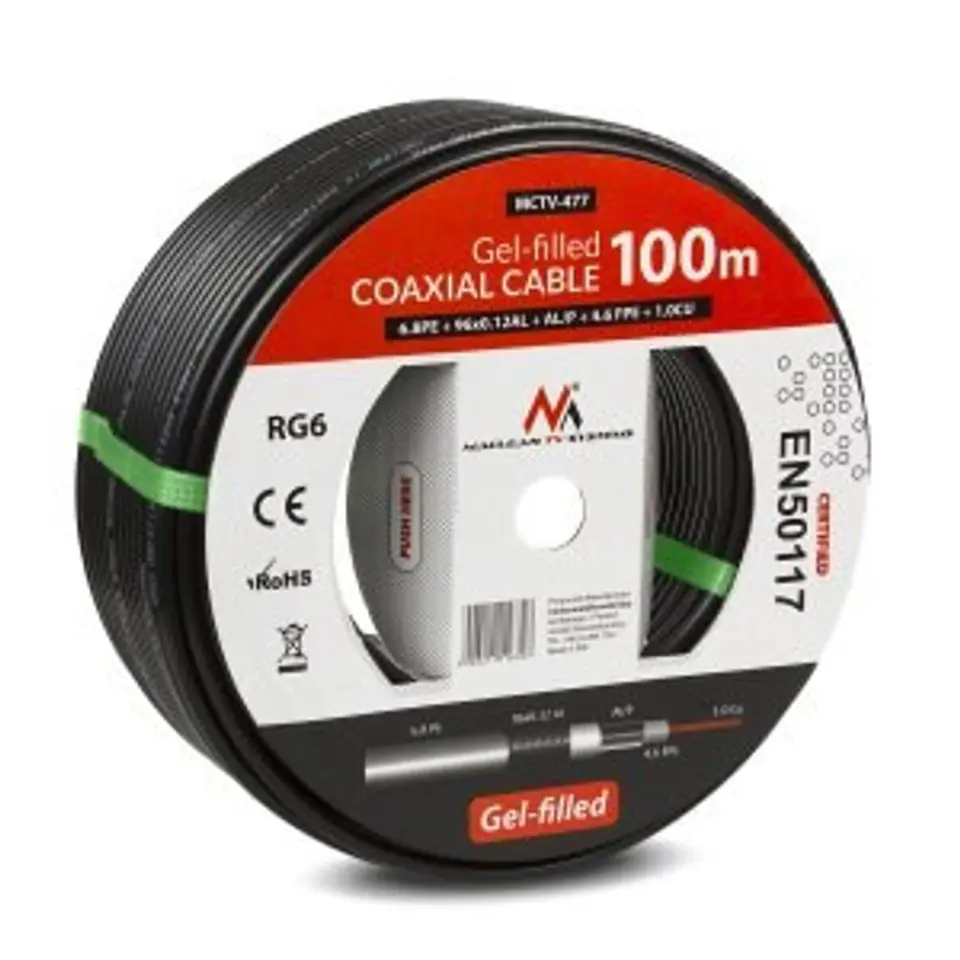

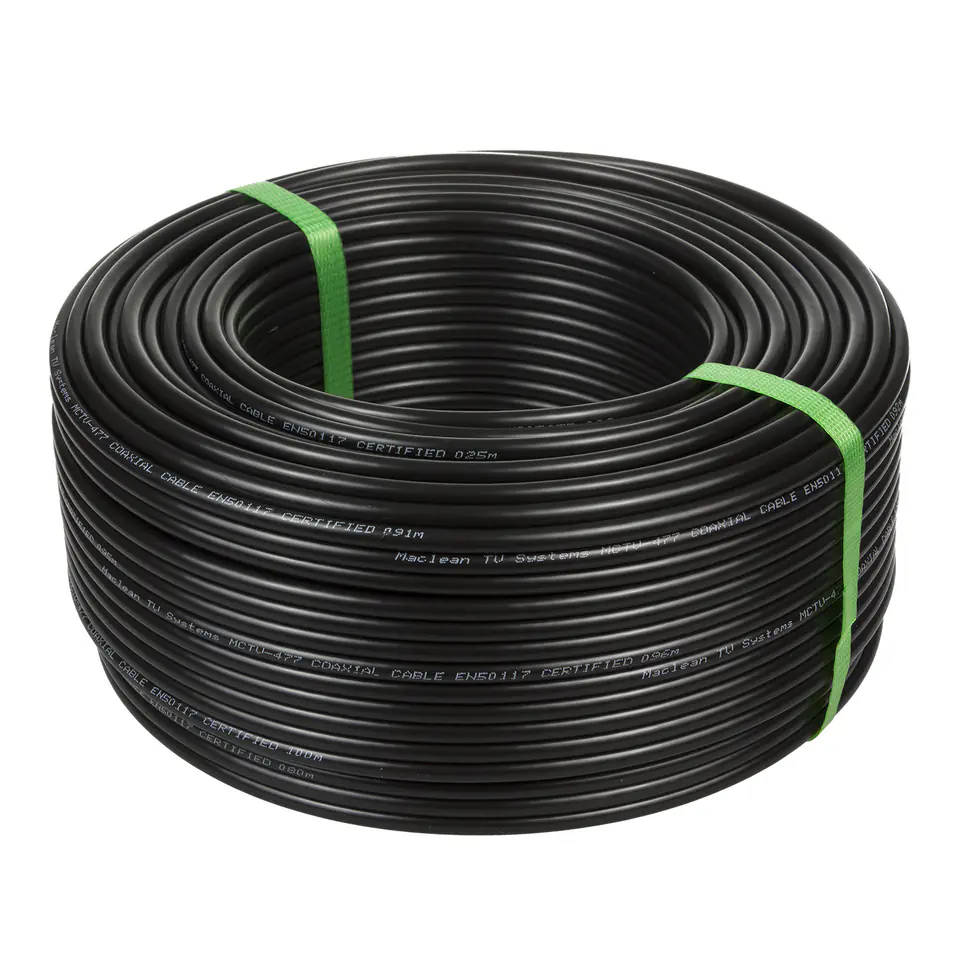

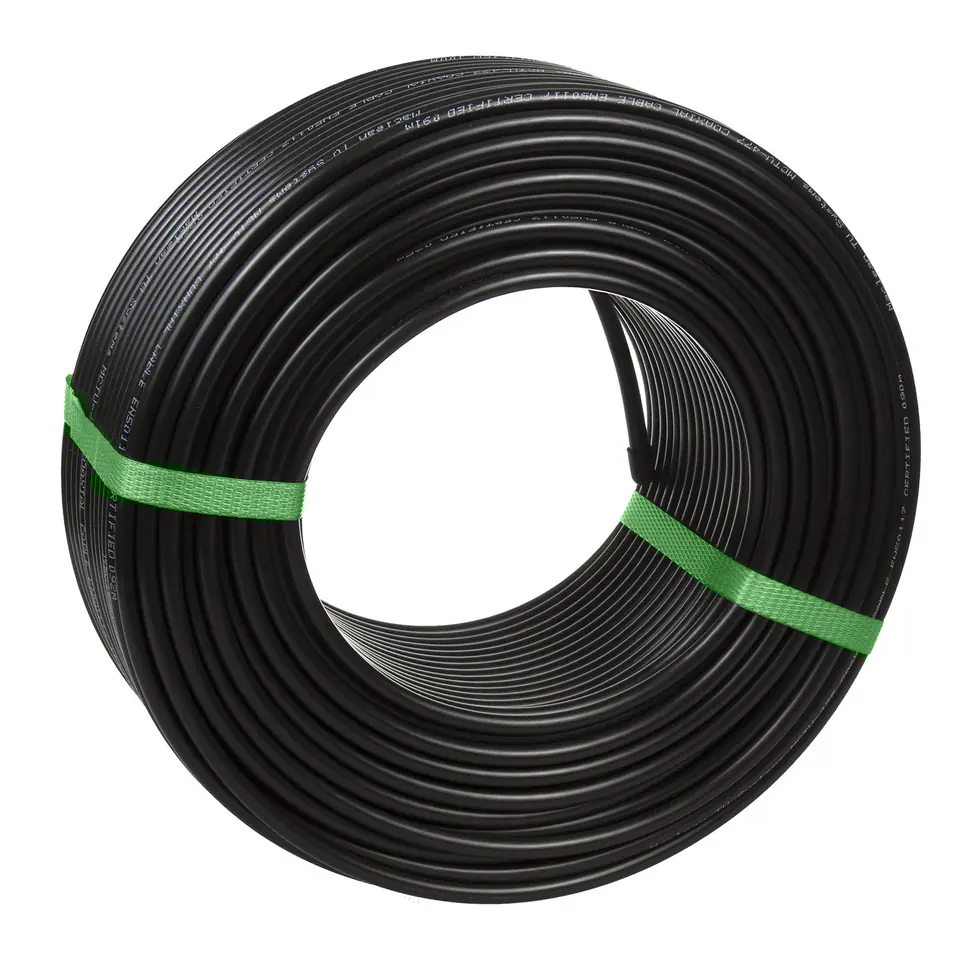

- Cable coaxial cable gelled 100M Maclean MCTV-477
Features
- Inner core: copper (Cu)
- Conductor diameter: 1.00 mm
- Dielectric: Physically foamed polyethylene (PE)
- Resistant to weather conditions
- Gel coating
- Cable outer diameter: 6.8mm
- Length: 100m
