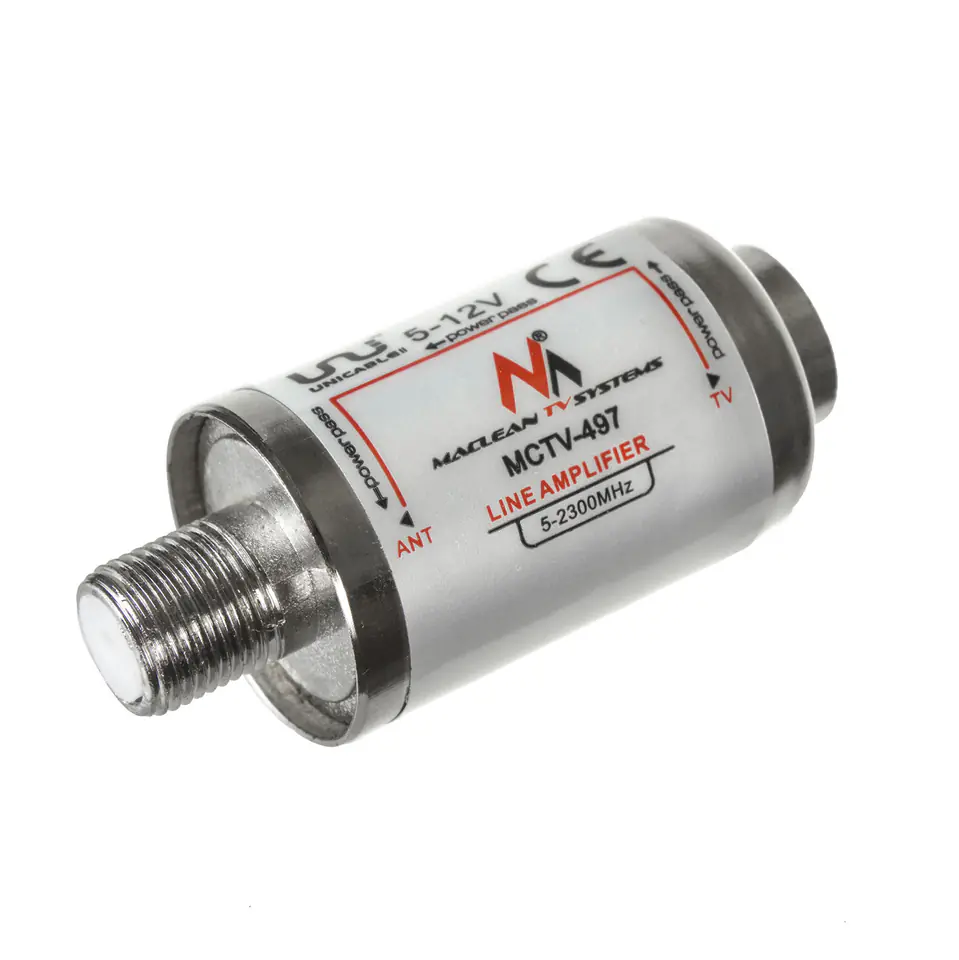

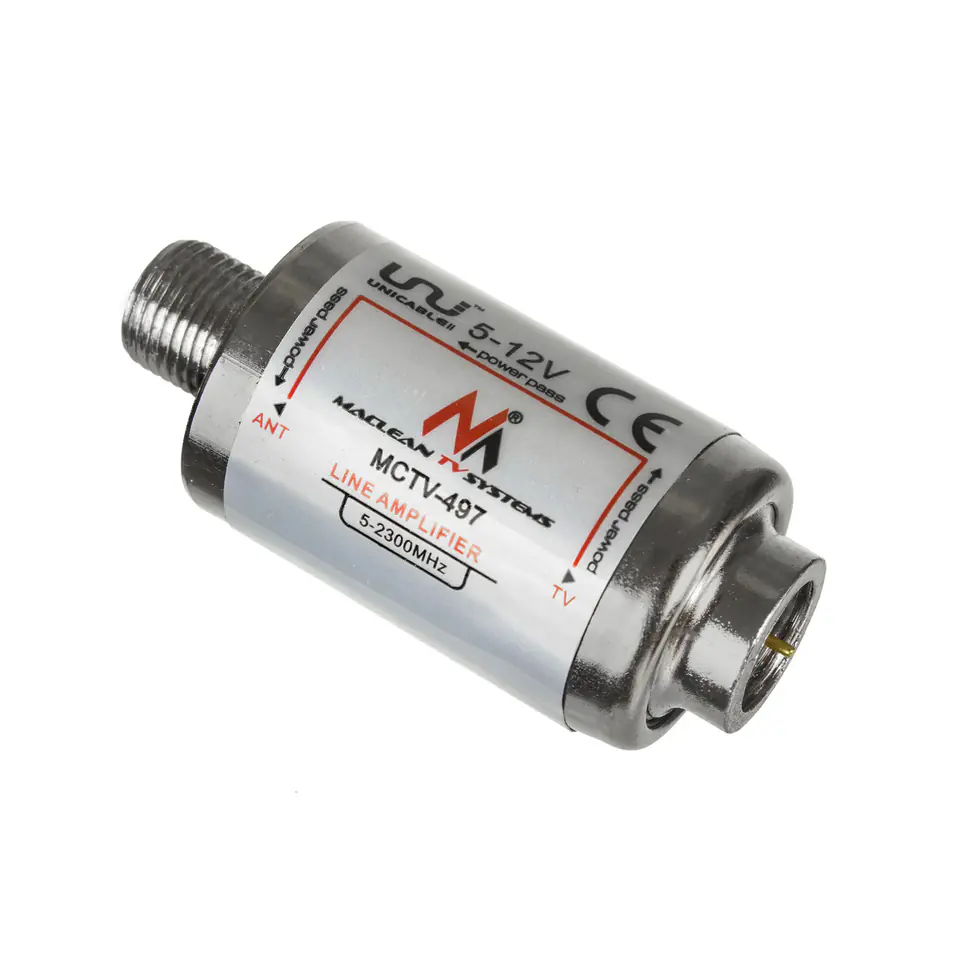

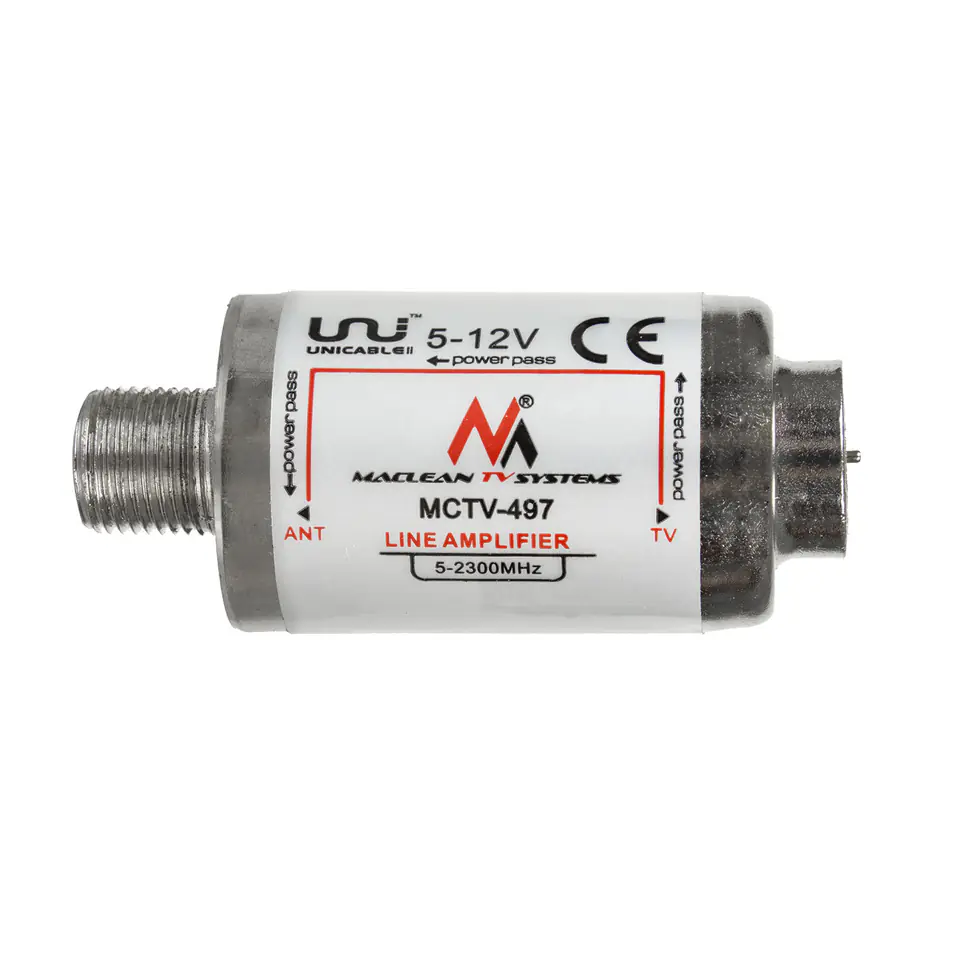

The Maclean MCTV-497 amplifier is used to amplify terrestrial digital TV signals in the 5-2300 Hz band. It can be mounted directly to the antenna if it is equipped with an F-socket, or at the tuner head.
The amplifier can be powered directly from the tuner (option "turn on the 5V power supply" in the tuner menu) or with a 5 - 12V antenna power supply.
Specification
- Producer: Maclean
- Model: MCTV-497
- Frequency range: 5-2300MHz
- Power supply: 5-12 V
- Gain: 20dB
Includes
- DvB-T/T2 20dB line antenna amplifier Maclean MCTV-497

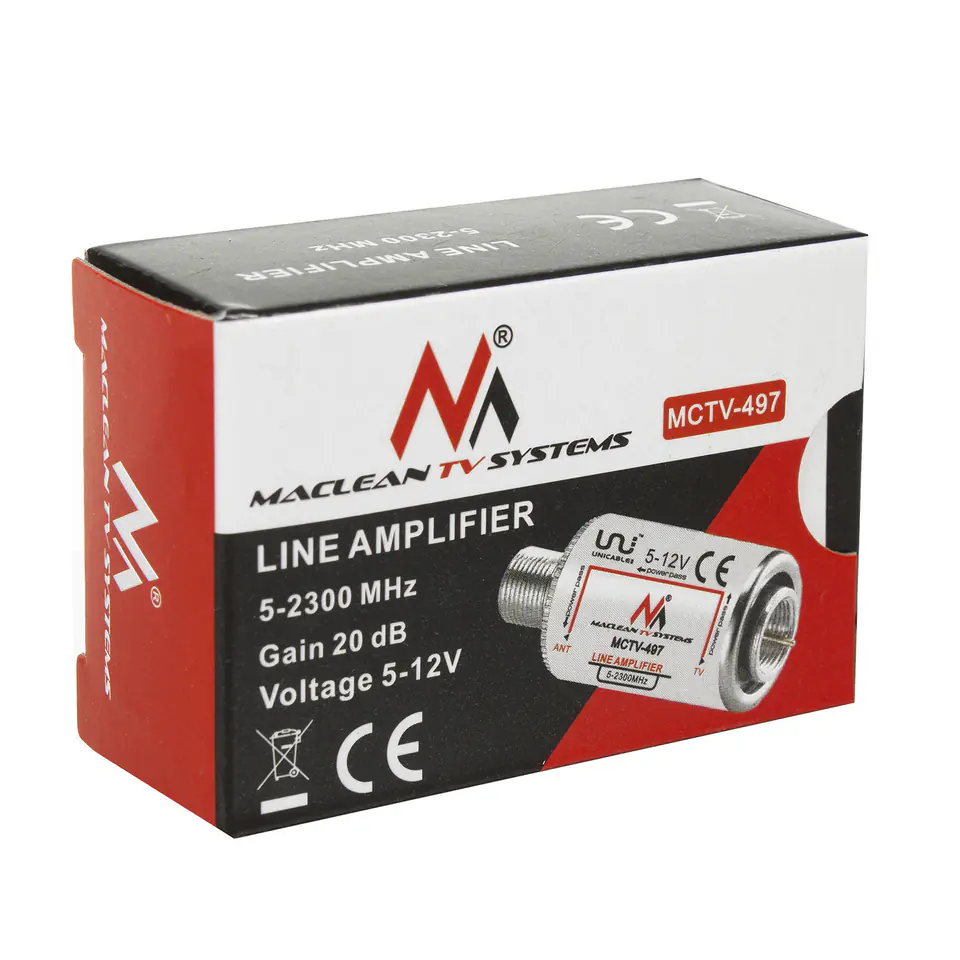

- Manufacturer's packaging
Features
- Designed for home antenna installations to amplify terrestrial TV signals
- Mounting to the F socket of the antenna or at the tuner head
- Powered directly from tuner or antenna power supply
- Gain: 20dB
- Broadband: 5-2400 MHz
