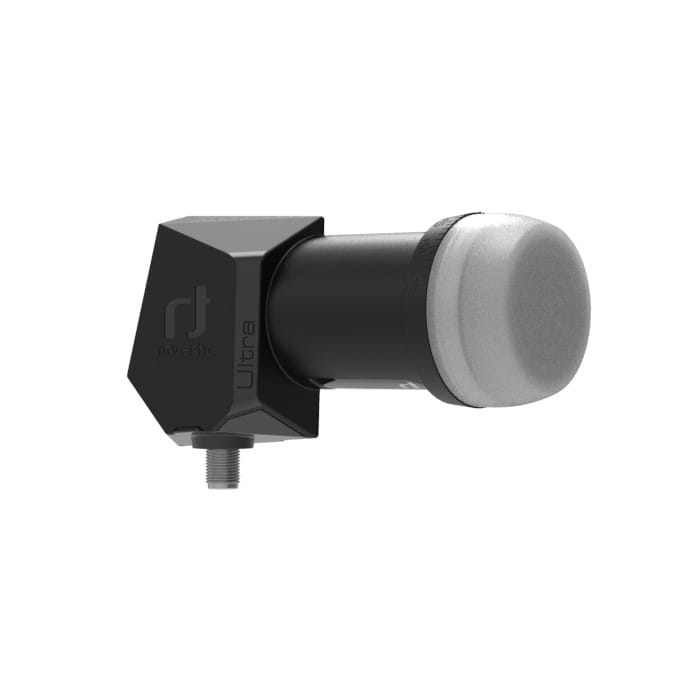

LNB Single Inverto Black Ultra

The latest INVERTO converter from the new limited series ULTRA BLACK - High-Gain Low Noise 0.2dB. The ULTRA BLACK series is especially recommended for receiving DVB-S2 programs due to very low phase noise. DVB-S2 uses more efficient 8PSK modulation. 8PSK modulation uses twice as many symbols as QPSK. The INVERTO SINGLE ULTRA BLACK converter provides satellite signals for one DVB-S or DVB-S2 satellite receiver. Currently, PVR receivers with a hard disk that require two independent satellite signals are increasingly common. In this case, it is necessary to use a TWIN converter.

Distinguishing features:
- very low phase noise – compatible with HDTV/DVB-S2
- high output level
- high frequency stability
- selected device
- five years warranty

Specifications:
- lower band - input: 10.7 - 11.7 GHz
- lower band - output: 950 - 1950 MHz
- bottom oscillator: 9.75 GHz
- upper band - input: 11.7 - 12.75 GHz
- upper band - output: 1100 - 2150 MHz
- top oscillator: 10.6 GHz
- self-noise: 0.2 dB (0.7 dB)
- oscillator temperature drift: +/- 3MHz max
- phase noise: -90 dBc/Hz max
- gain: 60 dB min
- variability of gain characteristics: +/- 0.75 dB/27 MHz
- control - polarization V: 11.0 - 14.0 V
- control - polarization H: 16.0 - 20.0 V
- VSWR: 2.0:1
- current consumption: 120 mA max @ 11 - 20 V
- output impedance: 75 Ohm
- operating temperature: -30...+60 degrees C
- neck diameter: 68.5 mm
- neck length: 40 mm
- connector: F
- weight: 151 g
