Johansson HDMI DVB-T, DVB-C 8202 digital modulator

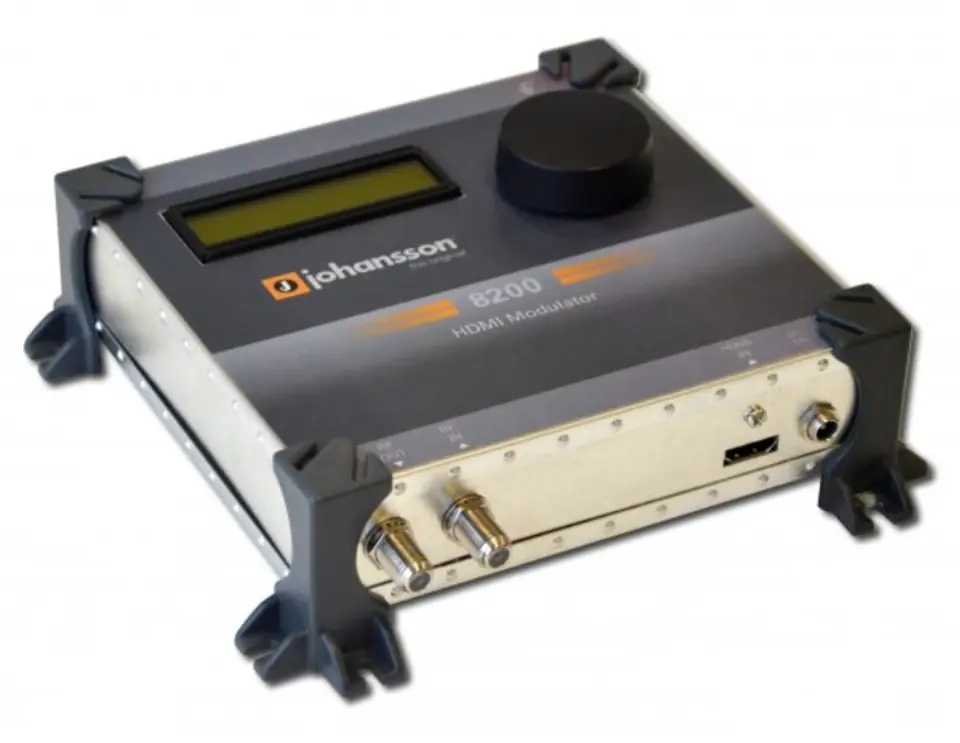

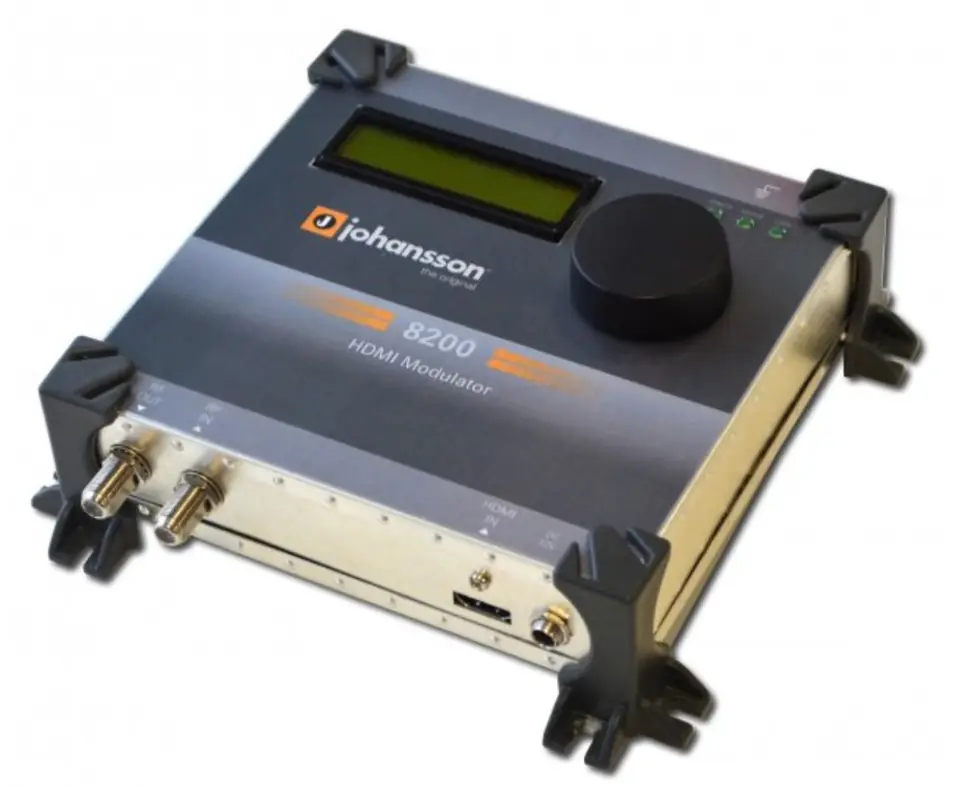

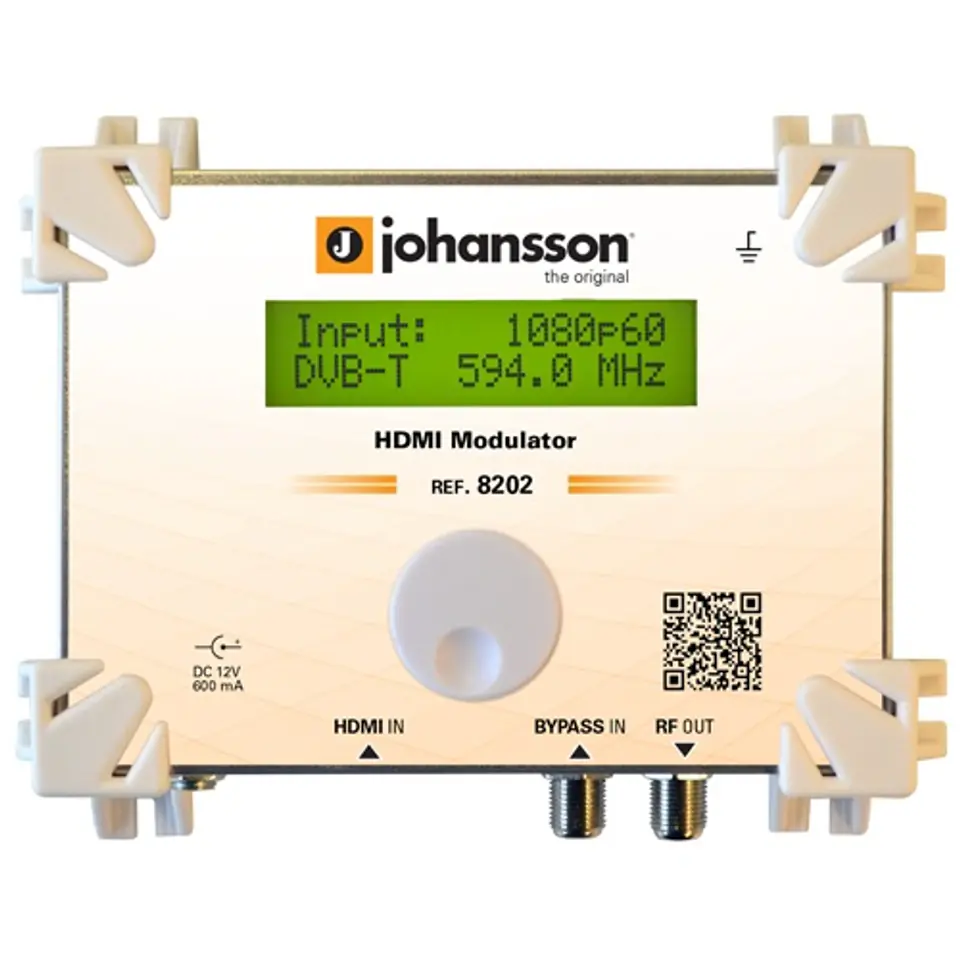

HDMI to DVB-T, DVB-C modulator is a device with very good parameters from Johansson, controlled by a multifunction knob. The device allows you to change SD and HD signals via HDMI to DVB-T signal or DVB-C signal.

Main features of the modulator:

- 1 HDMI input, capable of receiving all resolution standards
- 1 RF input, terrestrial or cable TV signal
- 1 RF output, supported resolution up to 1080p
- excellent image quality, thanks to the high MER parameter, comparable to headend devices
- easy to use menu thanks to the display and knob
- low power consumption

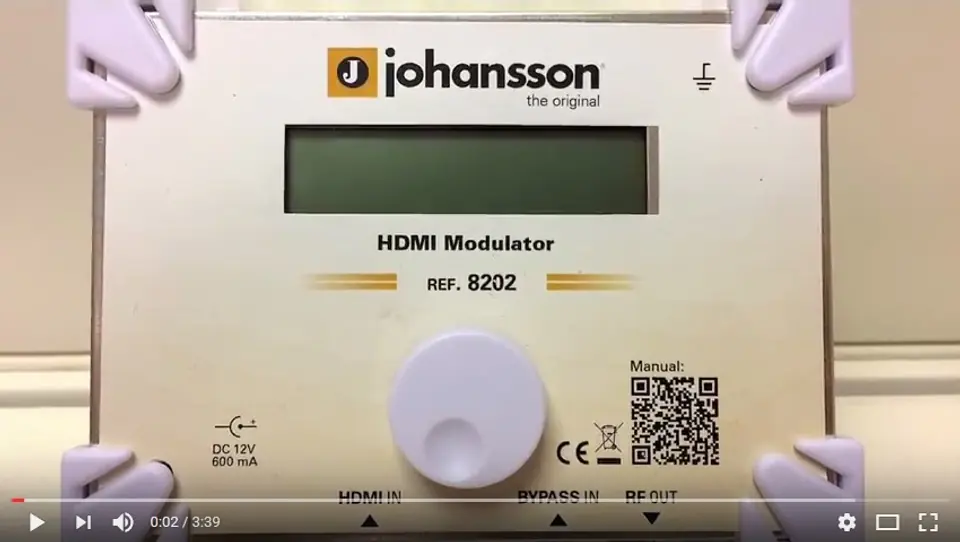

Video presenting Johansson 8202 modulator:

Specification:

inputinputsettingssettings

HDMI
Resolution	-	576i up to 1080p
Coding	-	H264/AVC
Audio encoding	-	MPEG1 Layer II / AAC
Connector Type	-	HDMI Type A
RF
Frequency	Mhz	5 - 1218
Loss at RF output	Db	2
RF output (RF + HDMI input signal with transponder modulation)
Frequency modulated channel	Mhz	174 - 1218
Output level	dBμV	55-99 (adjustable)
MER	Db	38
DVB-T
Modulation	Mbps	2 - 23
Constellation	-	COFDM (QPSK/16QAM/64QAM)
Band channel	Mhz	6.7 or 8
DVB-C
Modulation	Mbps	2 - 23
Constellation	-	16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Band channel	Mhz	2 to 8
Configuration
Basic configuration	-	Country | Output type | Output | channel frequency Output level | LCN | Channel name
Advanced Configuration	-	RF | Video & Audio | SID | PMT, VPID, APID | NIT, ONID | PDS | TS ID
Power supply and dimensions
Power	-	Input voltage: 12V DC | Power consumption: 5W Type. (6 W max.) | Socket Ø 2.1 mm.
Size / Weight	-	155 x 120 x 60 mm. | 0.6 kg
Accessory	-	12V power supply

Download:

- safety instruction >DOWNLOAD<
- user manual in ENGLISH  >DOWNLOAD<

Debugging the device:

1. Press and hold the rotating button
2. Turn on the unit
3. Wait for the debug code mode to appear on the screen
4. Release the rotating button
5. Enter code: 50
6. Set debug HW to "yes"
7. Save and exit
