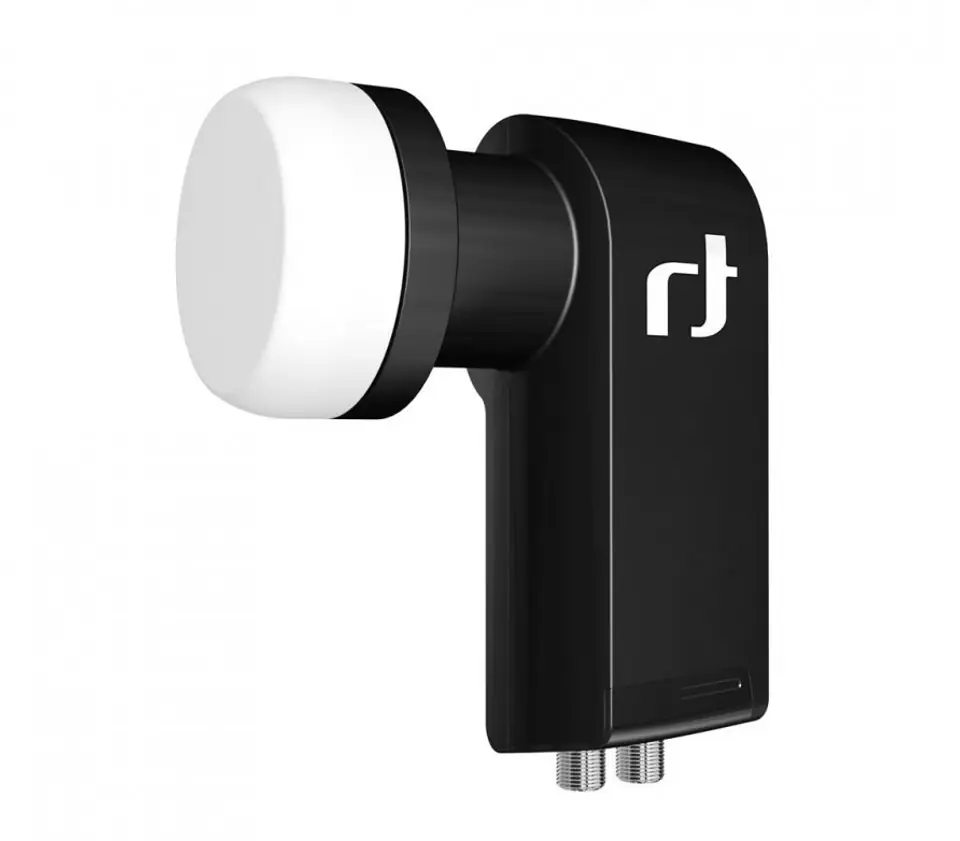

Inverto IDLP-TWL410-PREMU-OPN Low Noise Block downconverter (LNB) 10.7 - 12.75 GHz Black, White
€17.84
Shipping from warehouse: L1
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 77-189# / 5453002613290
Share this product:
Specification
| Conversion gain: | 55 dB |
|---|---|
| Cross-polarization isolation: | 22 dB |
| Gain ripple (±): | 0.6 dB |
| High band lo frequency: | 10.6 GHz |
| Image rejection: | 40 dBmW |
| Input frequency range: | 10.7 - 12.75 GHz |
| Low band lo frequency: | 9.75 GHz |
| Noise figure: | 0.2 dB |
| Operating temperature (t-t): | -35 - 60 °C |
| Output frequency range: | 950 - 2150 MHz |
| Output impedance: | 75 Ω |
| Package depth: | 91 mm |
| Package height: | 76 mm |
| Package weight: | 278 g |
| Package width: | 155 mm |
| Power consumption: | 120 mA |
| Product colour: | White, Black |
| Quantity: | 1 |
| Temperature drift (±): | 1 MHz |
| Voltage standing wave ratio (vswr): | 2.5 : 1 |
| Weight: | 218 g |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
