Technical Specifications
----------
Outputs: 2
VHF
----------
Frequency Range: 40-318MHz
Gain: 14 db +/-1 dB
Gain control: 16 dB
Noise Ratio: < 4.5dB
UHF
----------
Frequency Range: 470-862MHz
Gain: 24 db +/-1.5 dB
Gain adjustment: 12 dB
Noise Ratio: < 3.0dB
----------
Power supply: 230 V +/-10% AC, 50/60Hz
Working temperature: -5~60 degree C
Protection class: IP20

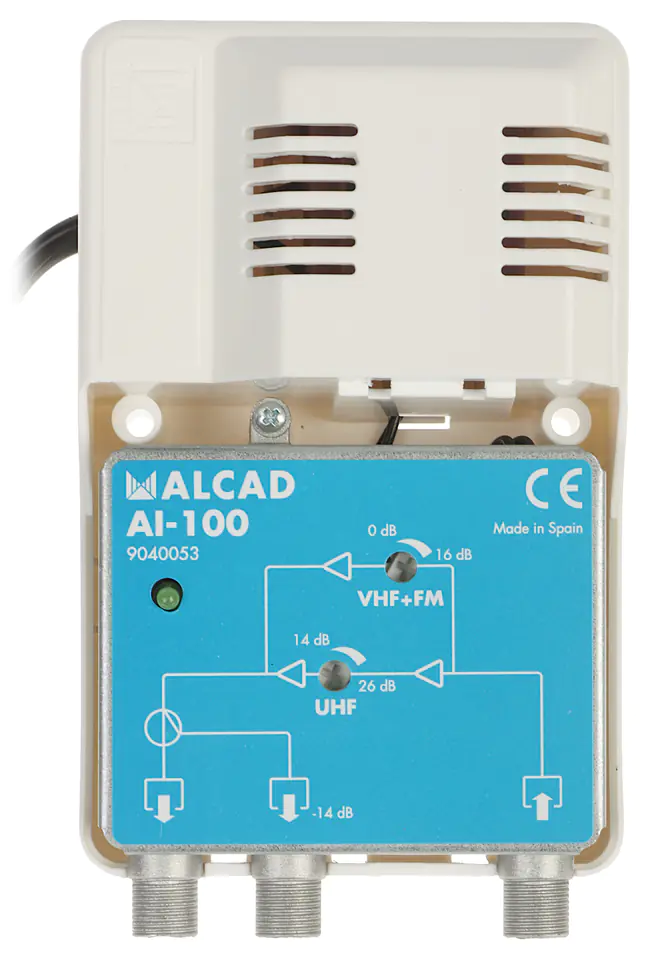

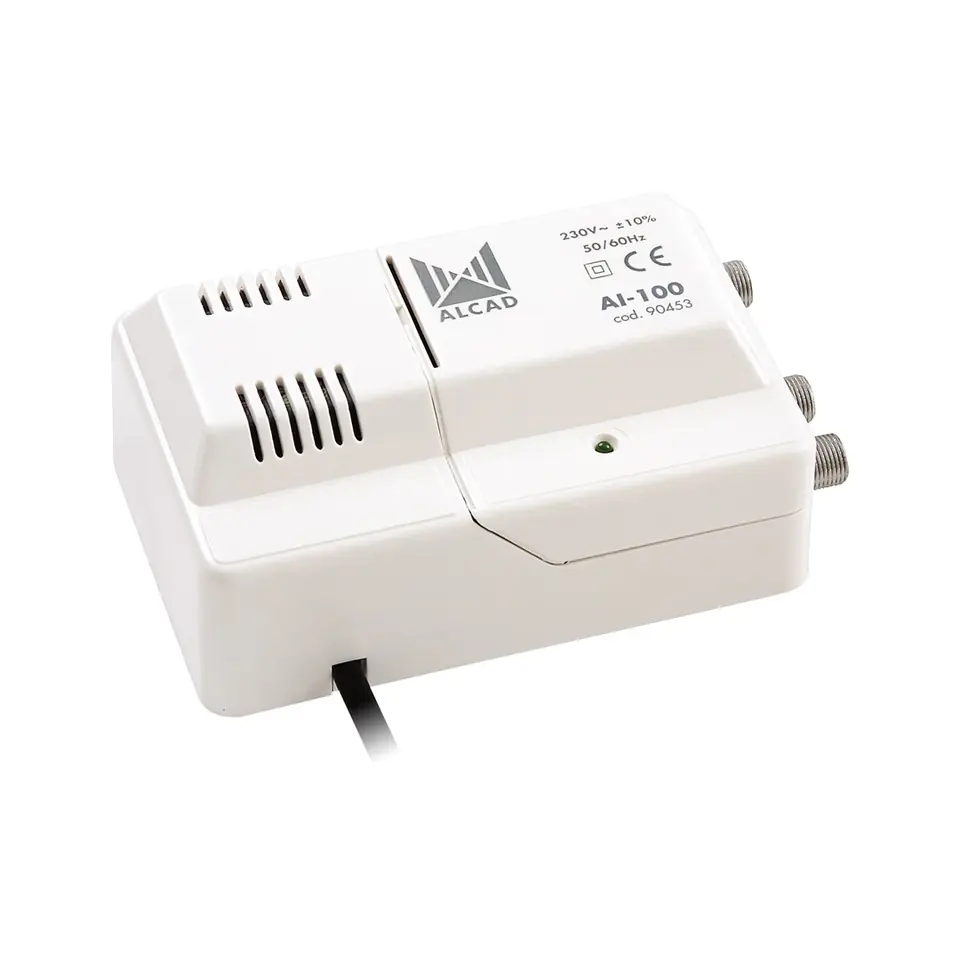

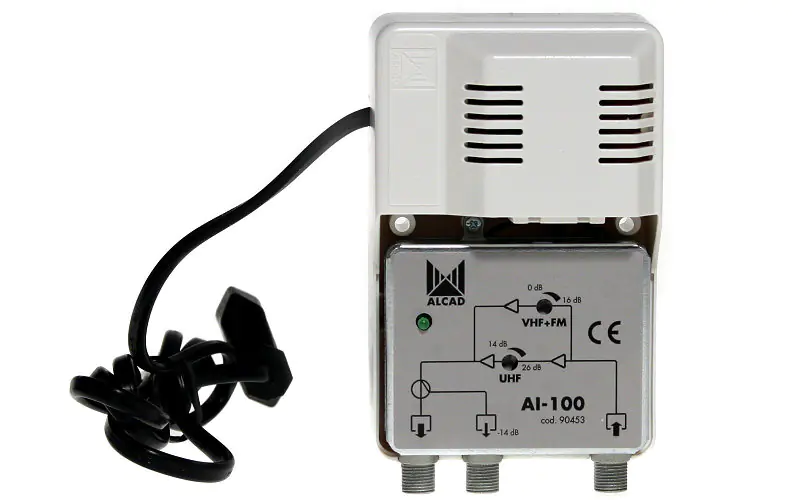

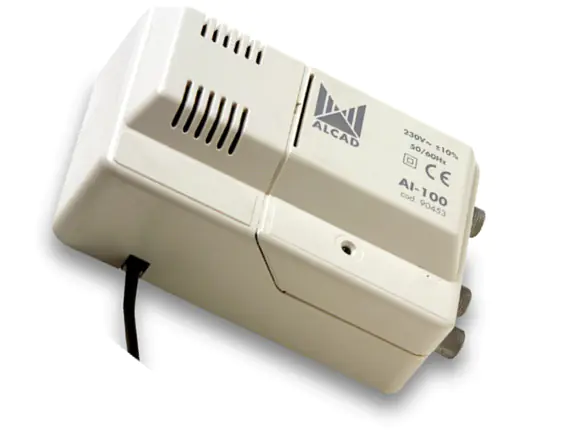

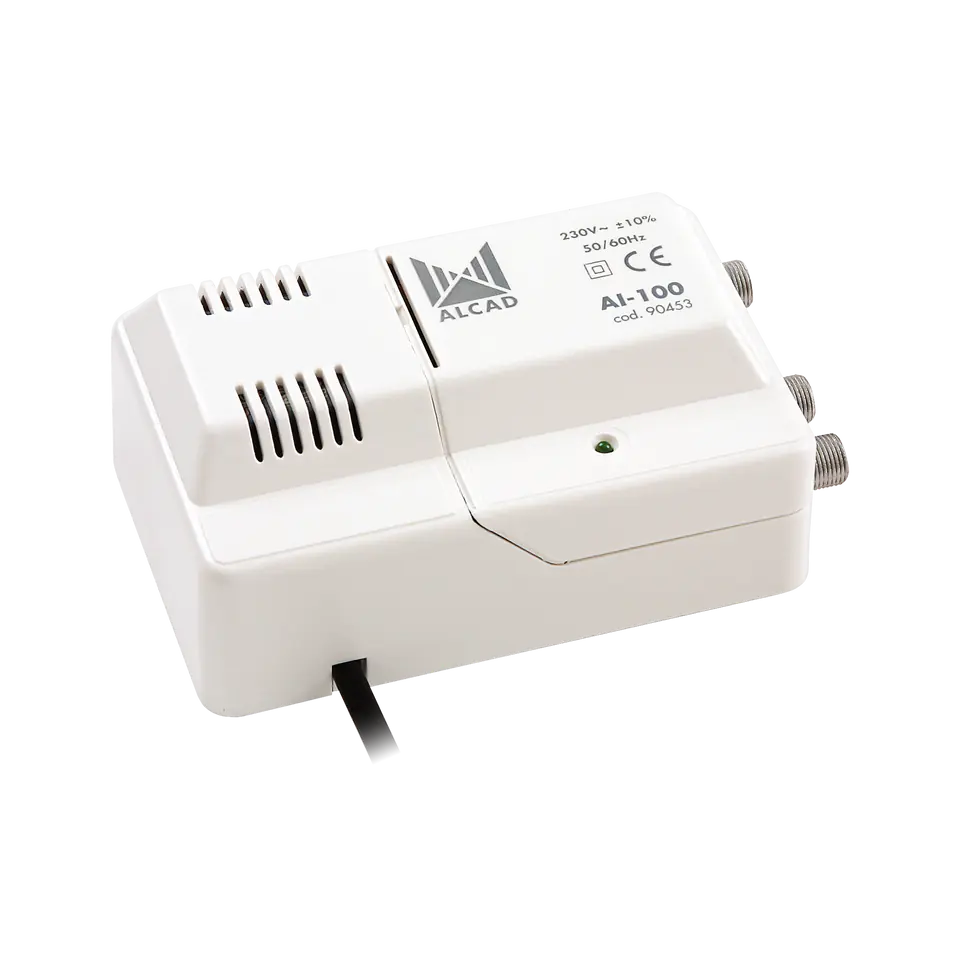

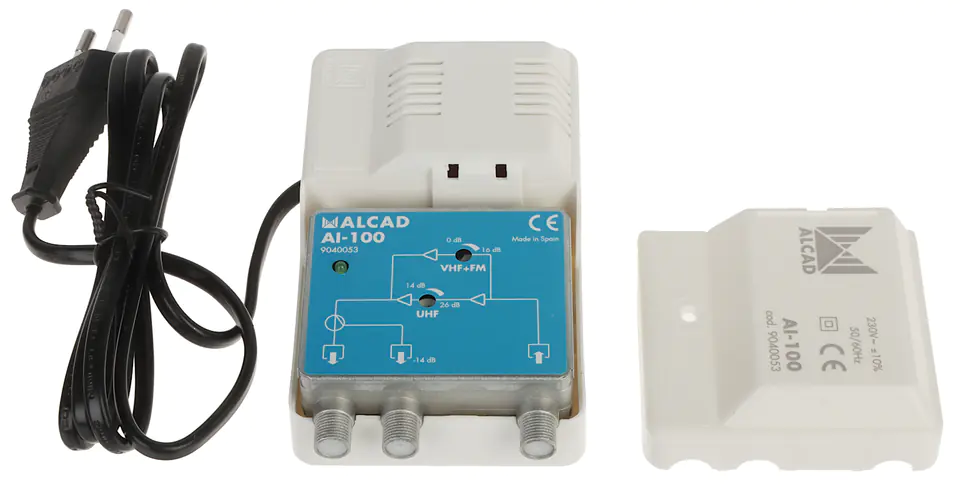

Internal antenna amplifier: 1+1 output: AI-100 ALCAD
PLN 77.35
Shipping from warehouse: D4
Estimated shipping: Fri, Nov 7 - Mon, Nov 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- inne
- Product code:
- AI-100 / 8425988904539
Share this product:

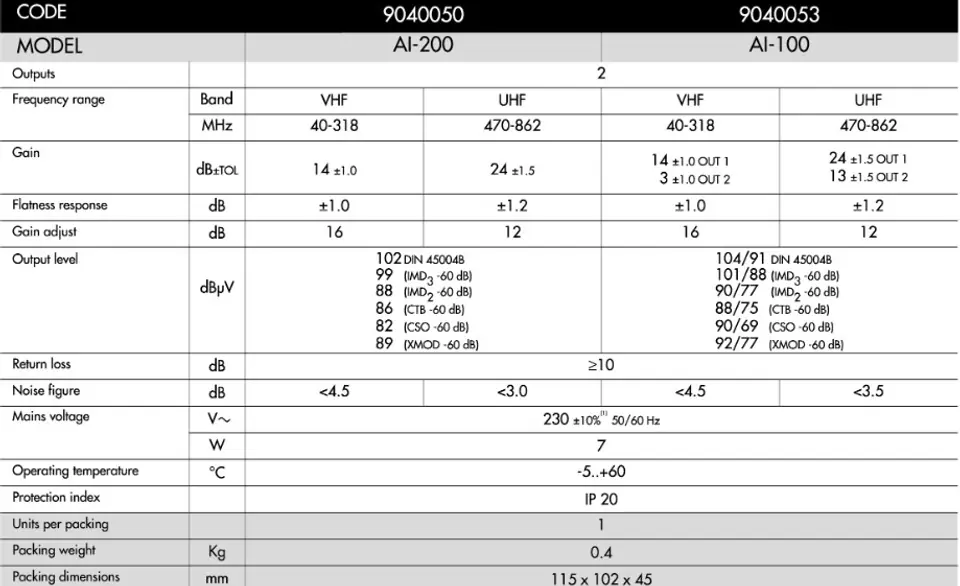

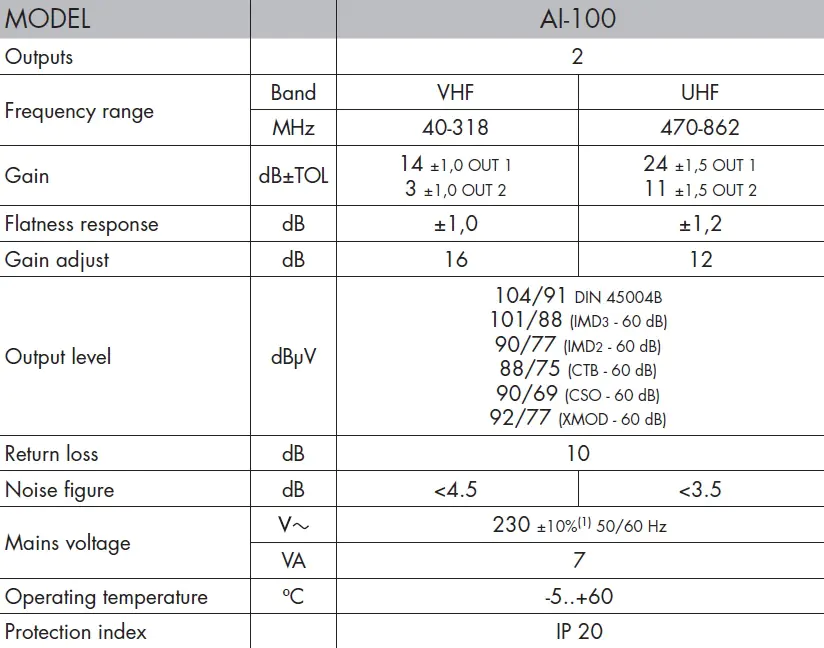

Specification
| Amplification: | 14 dB ± 2 dB @ VHF24 dB ± 2 dB @ UHF |
|---|---|
| Connector type: | "F" |
| Dimensions: | 118 x 72 x 44 mm |
| Frequency range: | 40 MHz ... 318 MHz - VHF, 470 MHz ... 862 MHz - UHF |
| Gain adjustment: | 16 dB |
| Ima3 60db: | .max. 101 dB |
| Input/output impedance: | 75 Ω |
| Maximum output level imd3=60 db din45004b: | 104 dB |
| Noise ratio: | 4.5 dB VHF3 dB UHF |
| Number of inputs/outputs: | 1/1+1 (1 x test: -14dB) |
| Operating temperature: | -5 °C ... 60 °C |
| Power: | 230 volts |
| Power consumption: | 7 VA |
| Producer / brand: | ALCAD |
| Scales: | 0.33 kg |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
