USB DVB-T/T2/C combo tuner for VU+ receivers

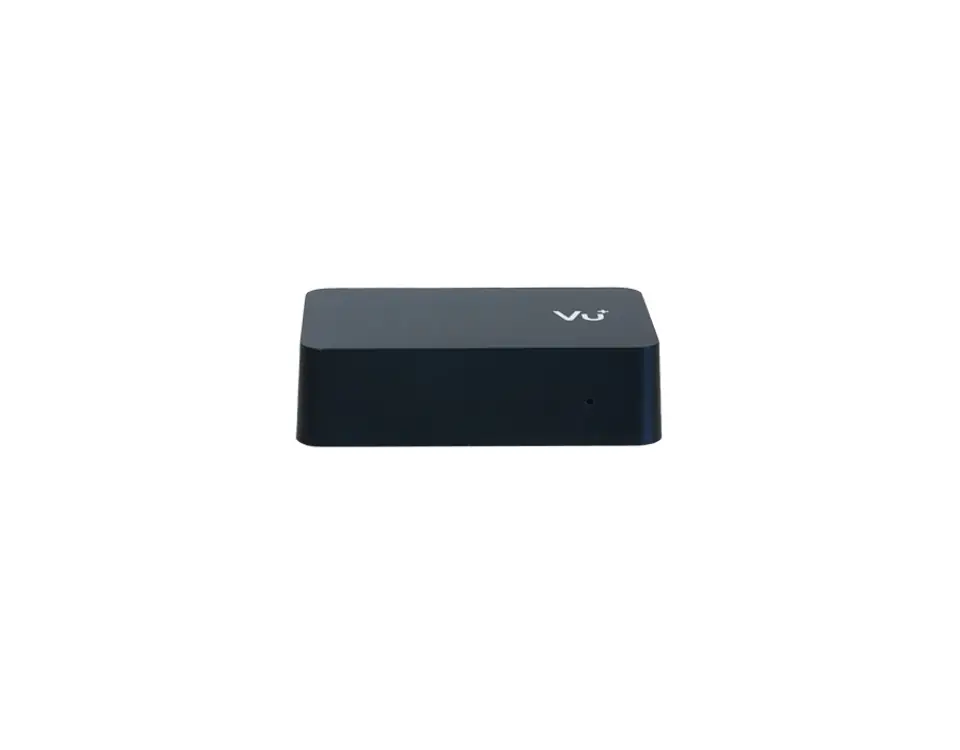

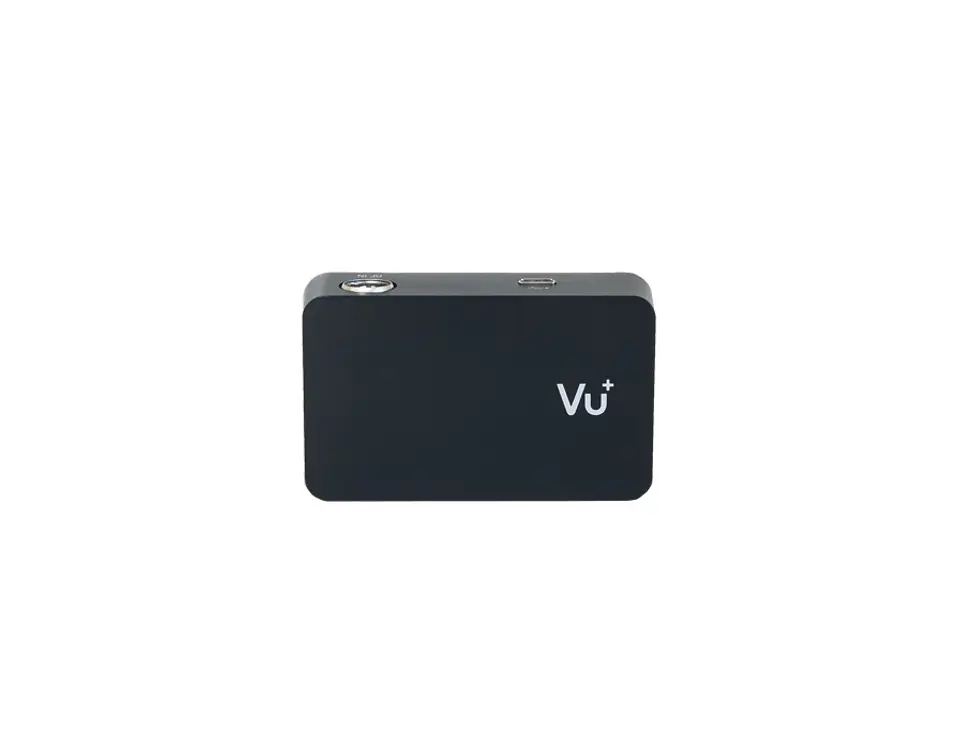

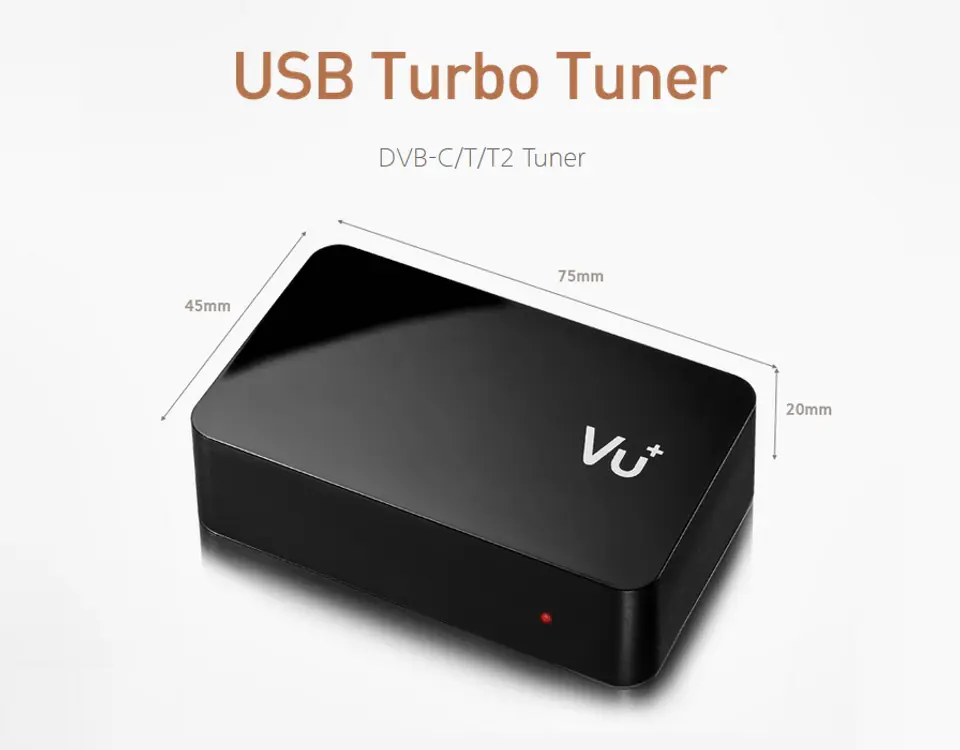

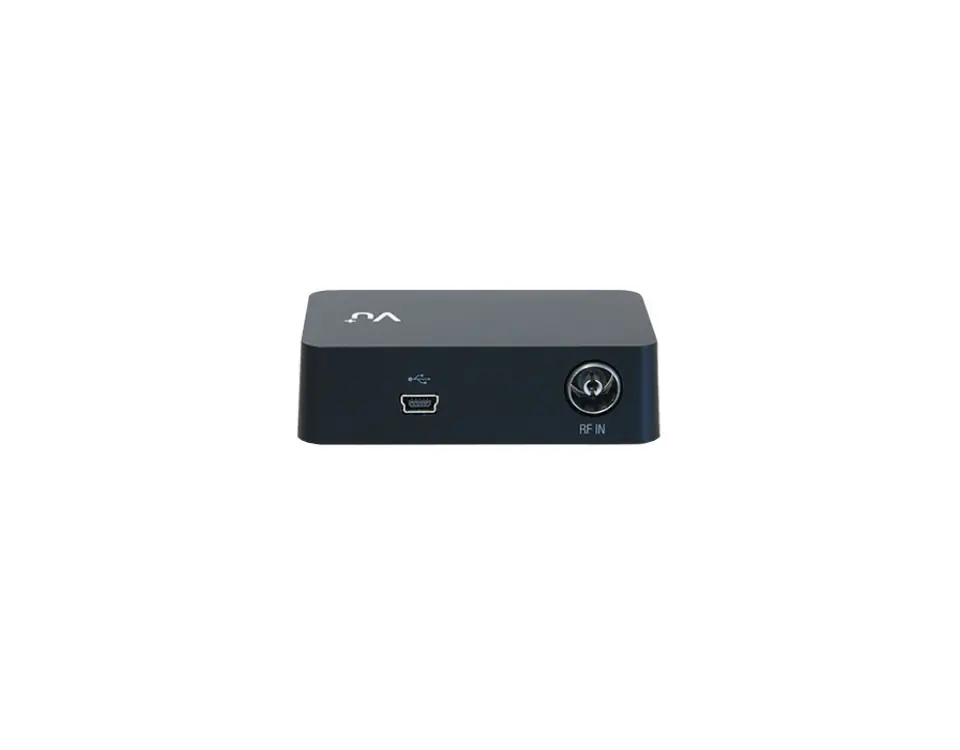

VU+ Turbo Combo DVB-C / T2 Hybrid USB Tuner
- Best DVB USB tuner in the hybrid TV tuner class
- High efficiency thanks to hybrid DVB-T2 / T / C demodulator
- High-Speed USB 2.0 interface
- Microsoft Media Center support (native)
- Support for versatile software, i.e. DVB Viewer
- Linux support (e.g. VDR or Enigma2)
Features (software):
- DVB-T / T2 / C HDTV tuner
- Possible recording of programs in MPEG / TS format
- Time shift
- Automatic scanning function (transponder/channel)
- Electronic Programme Guide (EPG)
- Teletext / subtitles
- On-screen display (OSD)
- Multi-language support
- Support the latest Linux drivers
Recommended requirements for Enigma2 decoders:
- Up-to-date software with appropriate DVB kernel drivers
- At least 128 MB NAND Flash / 384 MB RAM
- Suitable for all current VU+, Dreambox, Xtrend, etc. receivers
PC System Requirements:
- Microsoft Windows XP SP3/7/8
- 1.5 GHz processor (2.4 GHz or dual for HDTV)
- 256 MB RAM (1 GB for HDTV)
- Direct X 9.0c via graphics card
- Sound card / chip
- Available USB 2.0 port
Specification:
DVB-T2 (ETSI EN 302 755 V1.3.1-):
- Receiving frequency: 42~900MHz
- DVB-T2-COFDM demodulator and FEC decoder (LDPC / BCH)
- Supports up to 255 PLP pipelines
- FFT: 1K, 2K, 4K, 8K, 16K, 32K
- Modulation: QPSK, 16-QAM, 64-QAM, 256 QAM
- Bandwidth: 1.7 5, 6, 7, 8 MHz (and extends the bandwidth)
DVB-T (ETSI EN 300744):
- Receiving frequency: 42~900MHz
- DVB-T COFDM demodulator and FEC decoder (BCH)
- Modulation: QPSK, 16-QAM, 64-QAM
- FFT: 2 thousand, 8 thousand
- Bandwidth: 5, 6, 7, 8 MHz
DVB-C (ETSI EN 300 429):
- Receiving frequency: 48~870MHz
- A/C DVB-C and ITU J83 demodulation: 16QAM, 32QAM, 64QAM, 128QAM and 256QAM
- Transmission rate: 1~7.2Mbps
