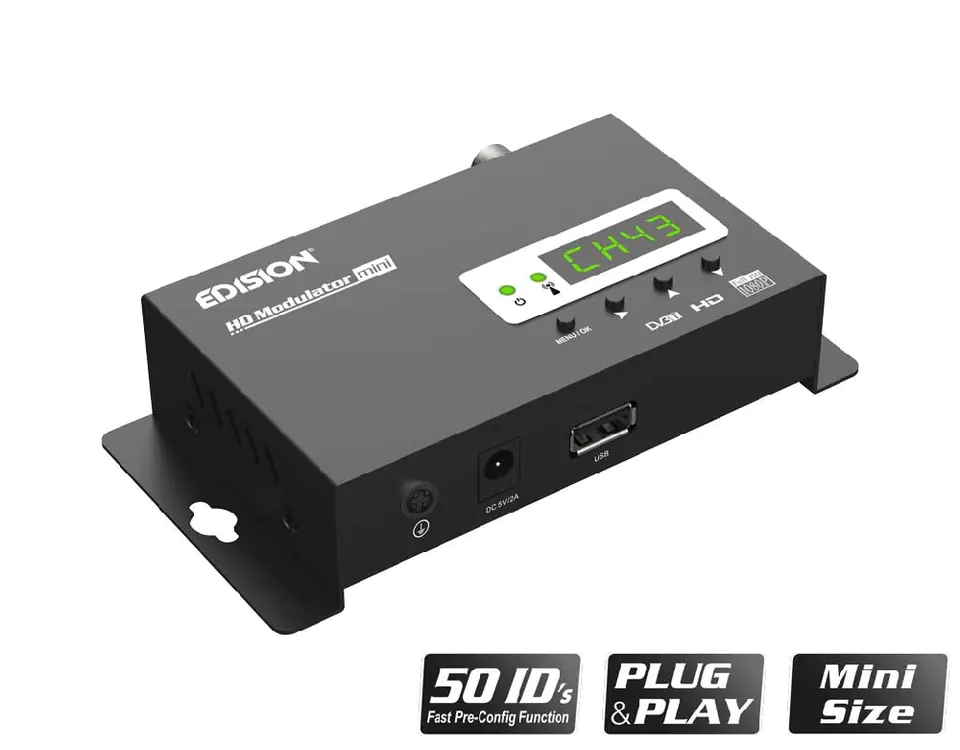

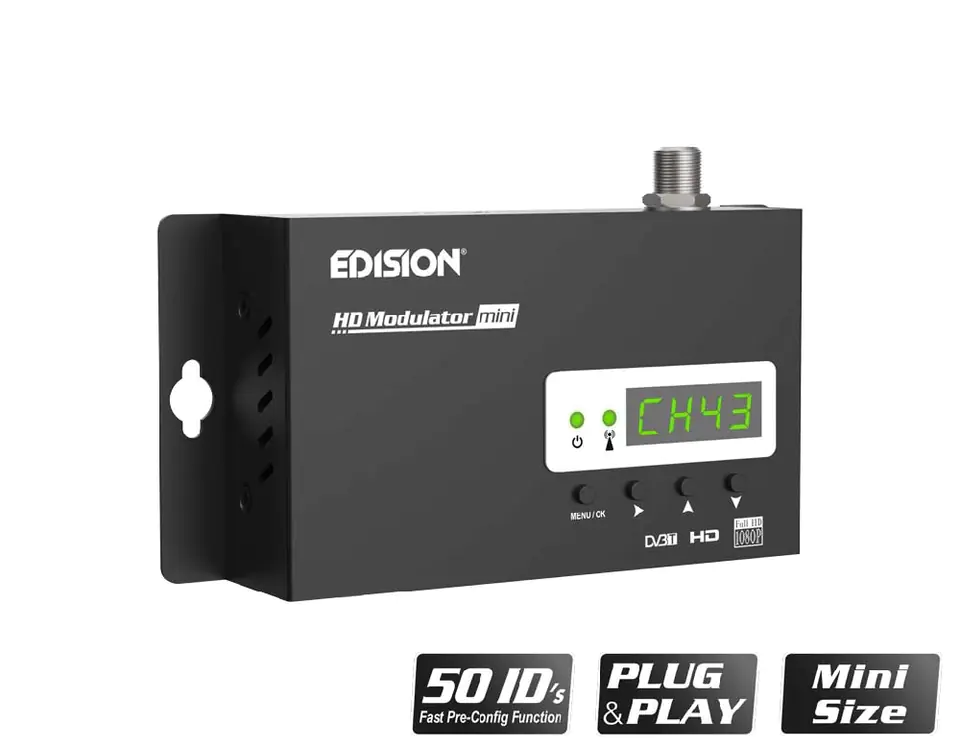

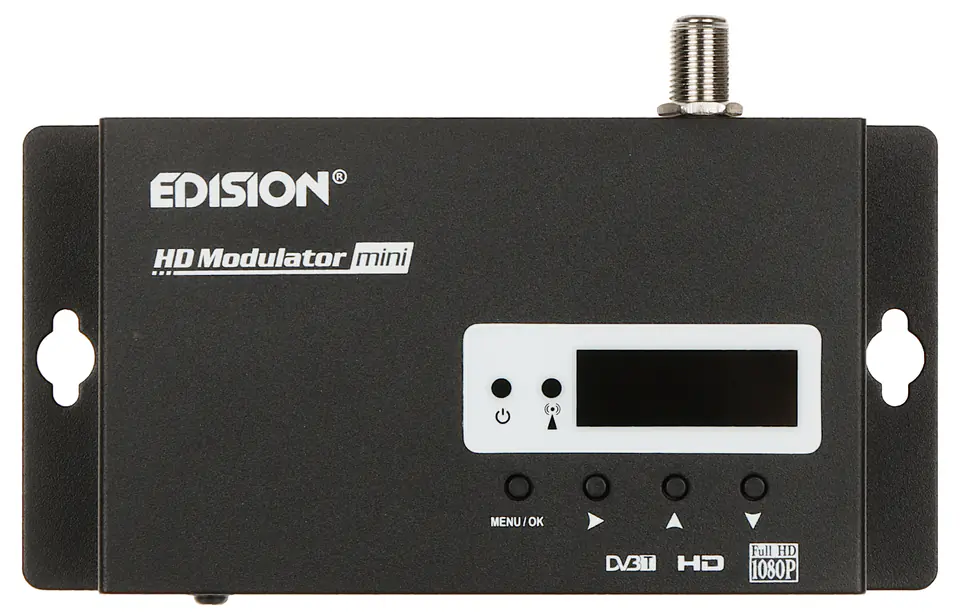

Digital HDMI modulator for DVB-T/MPEG4 EDISION HD Mini

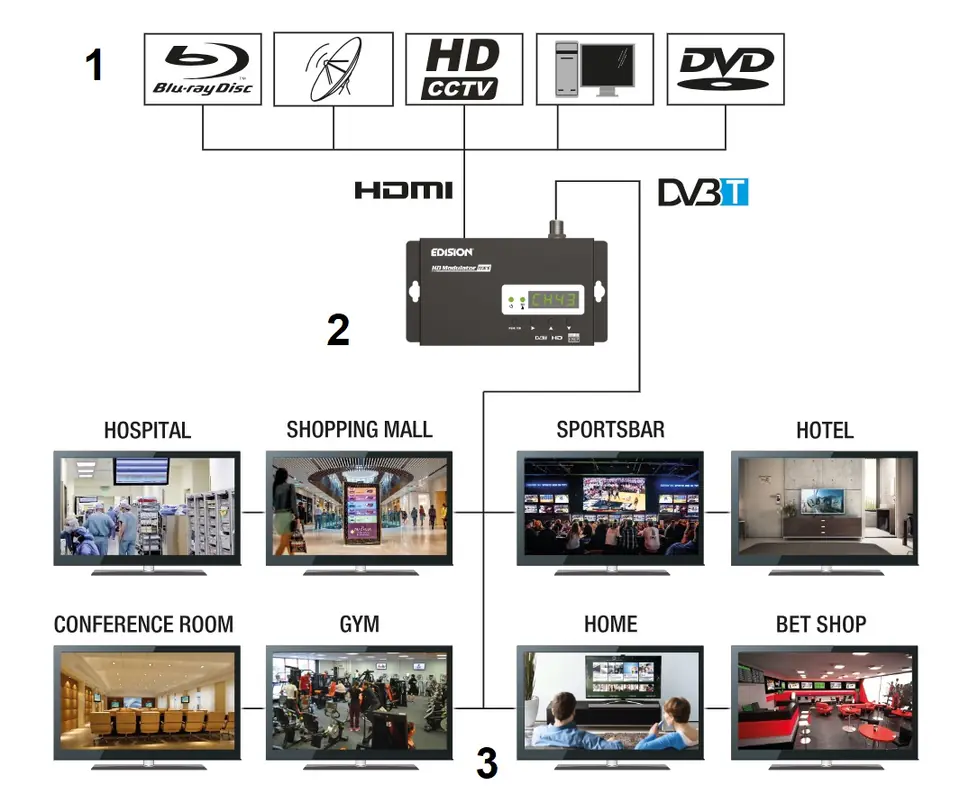

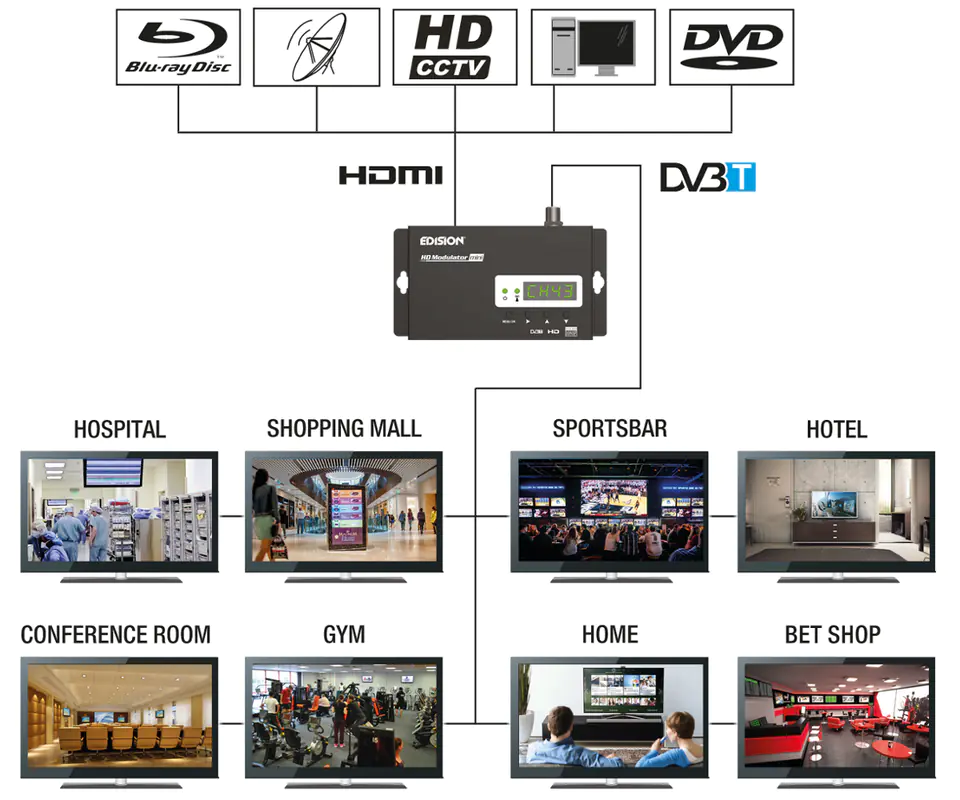

Digital single FULL HIGH DEFINITION modulator in mini size. With one input, the modulator can convert HDMI signals (e.g. from satellite receivers, PCs, notebooks, surveillance cameras, DVD/Blu-ray players, etc.) to DVB-T/MPEG4, up to FULL HIGH DEFINITION in the VHF/UHF band. Simple and quick configuration with ID Pre-Config function, making programming very simple and at the same time saving space with a very compact size, the installation of the modulator is possible even with minimal space.
Hospitals
- television for patients
- transmission from operating rooms
- student education
-monitoring
-Ads
Shops and galleries
- promotional channels
-Ads
Corporate TV
- company TV channels
-Video conferencing
-education
Schools and universities
- broadcast of lessons and lectures
- university television
-Feeds
- transmission from PCs
Sport
- TV in the gym
- transmission of sports events in high definition
-Ads
- Single digital HDMI modulator for DVB-T/MPEG4
- Input signal: HDMI
- Output signal: Digital terrestrial TV DVB-T/MPEG4
- Video resolution up to Full-HD 1080pp @ 30FPS
- 16:9 widescreen, 4:3 letter box, 4:3 pan-scan
- VHF (channels 5-12) and UHF (channels 21-69) frequency range
- RF output level: factory setting 90 dbμV, up to +6dbμV or -14dbμV (-2dbμV increment)
- Maximum MER output level> 35dB
- Transmission rate: up to 31 668 Mbps
- 7MHZ, 8MHZ band
- Video Encoder: MPEG1, MPEG2 MP@HL, MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @ level4.1, MP@level4.1
- Audio Encoder: MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
- CPU system: 200 MHz CPU 32 bits RISC
- DDRII 16bit 512Mbit (built-in) and NOR Flash 32Mbit
- Supports HDMI v1.4a
- USB Type USB 2.0 HOST

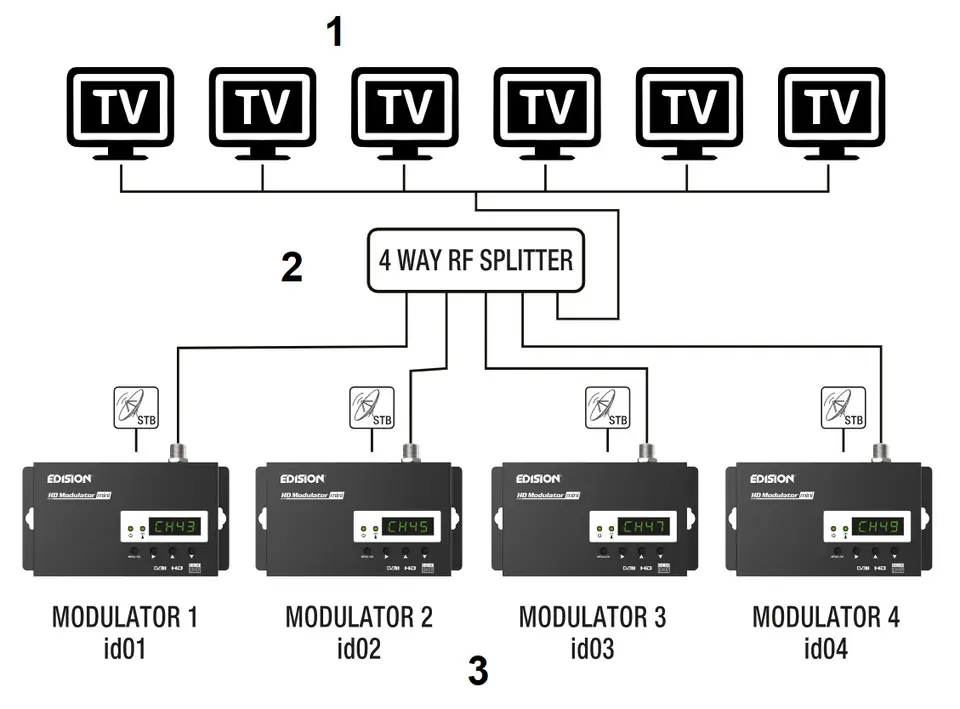

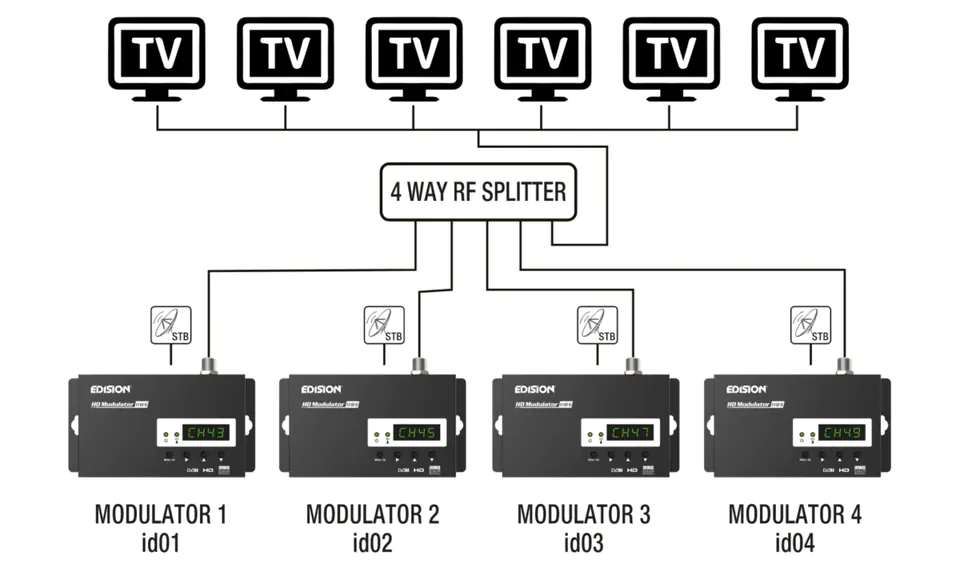

- Quick preconfiguration function / 50 identifiers can be selected
- USB backup and configuration function
- USB software update function

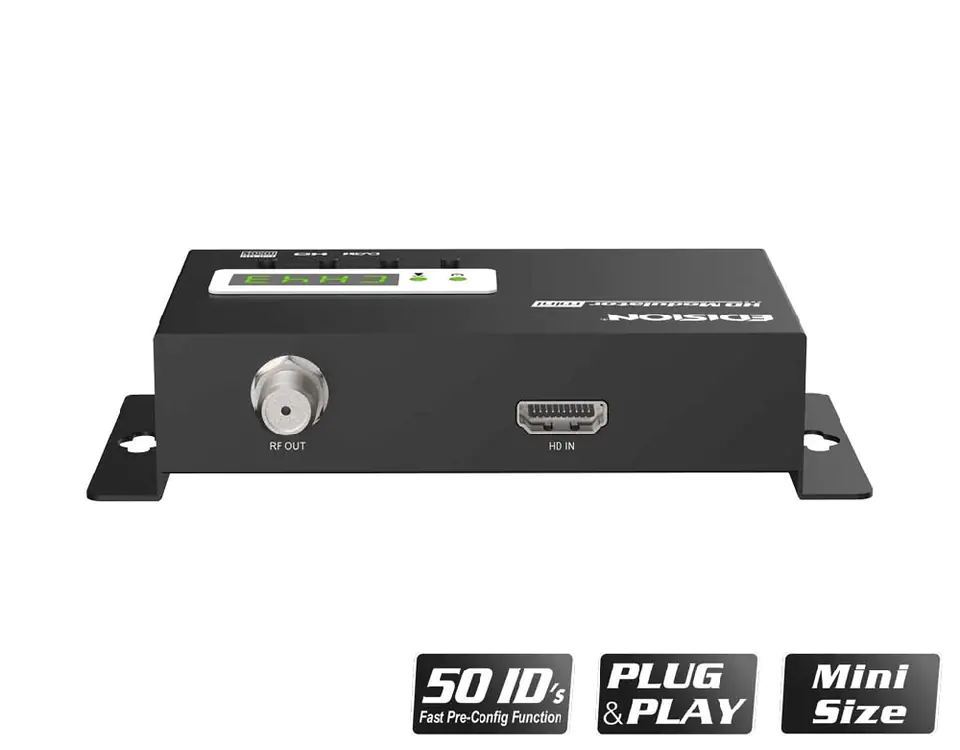

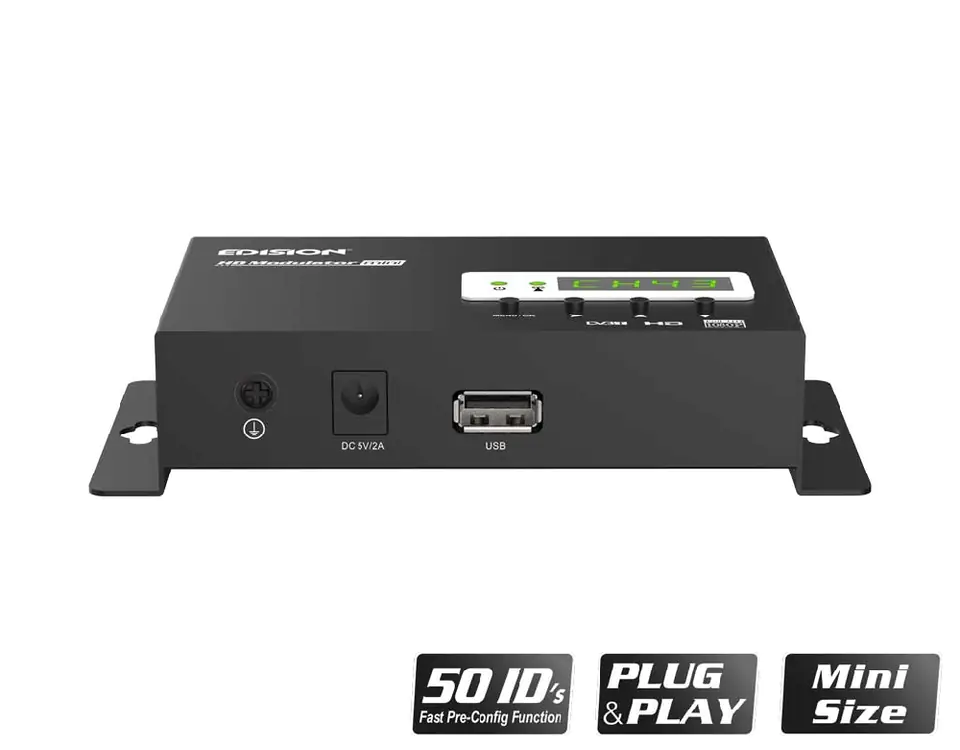

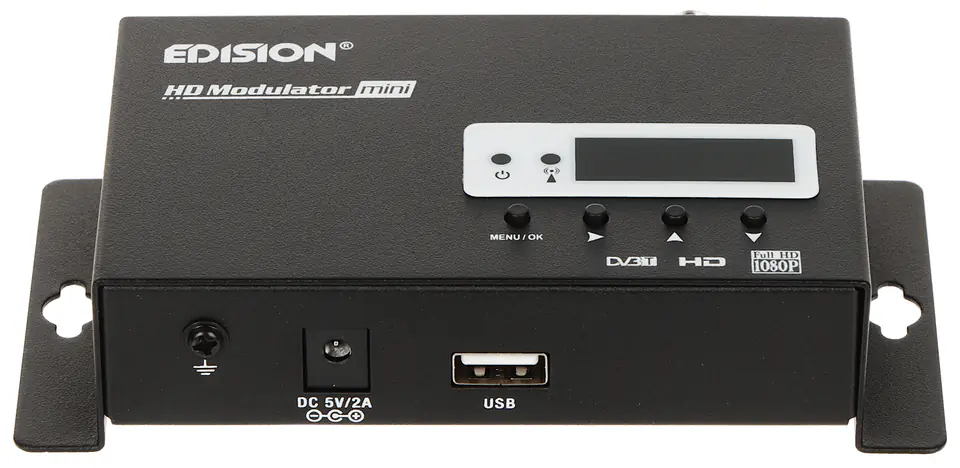

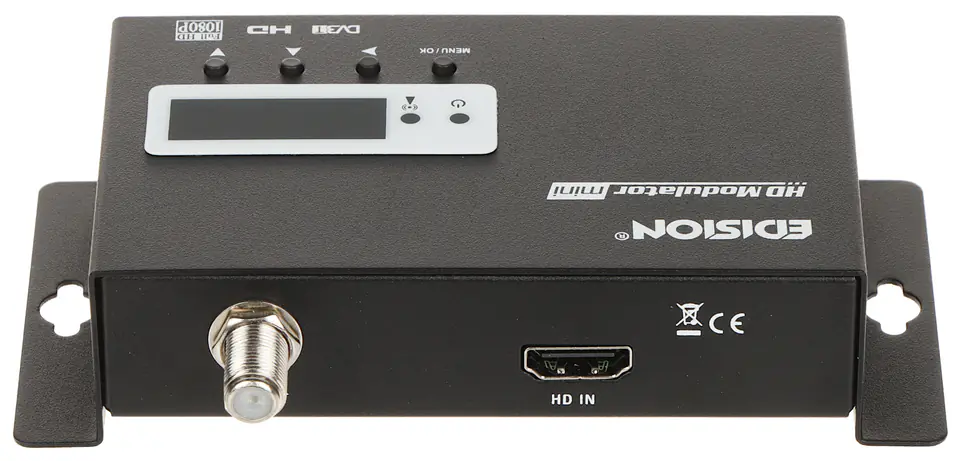

- Connections: HDMI input, RF output, USB, DC 5V, protective wire

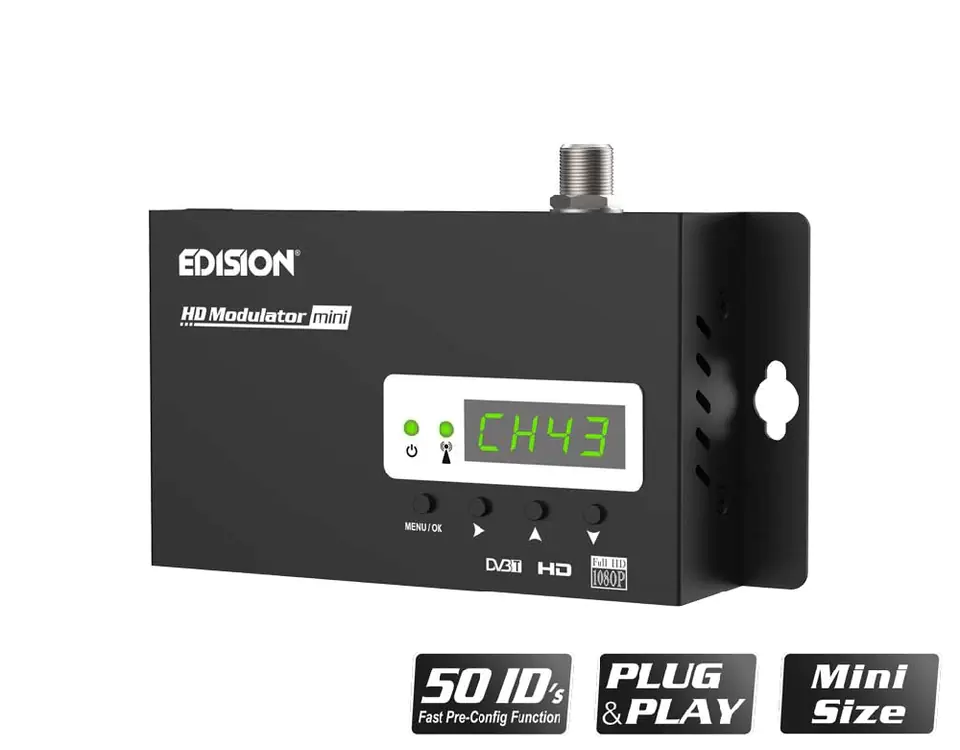

- 4-digit LED display
- 4 display buttons

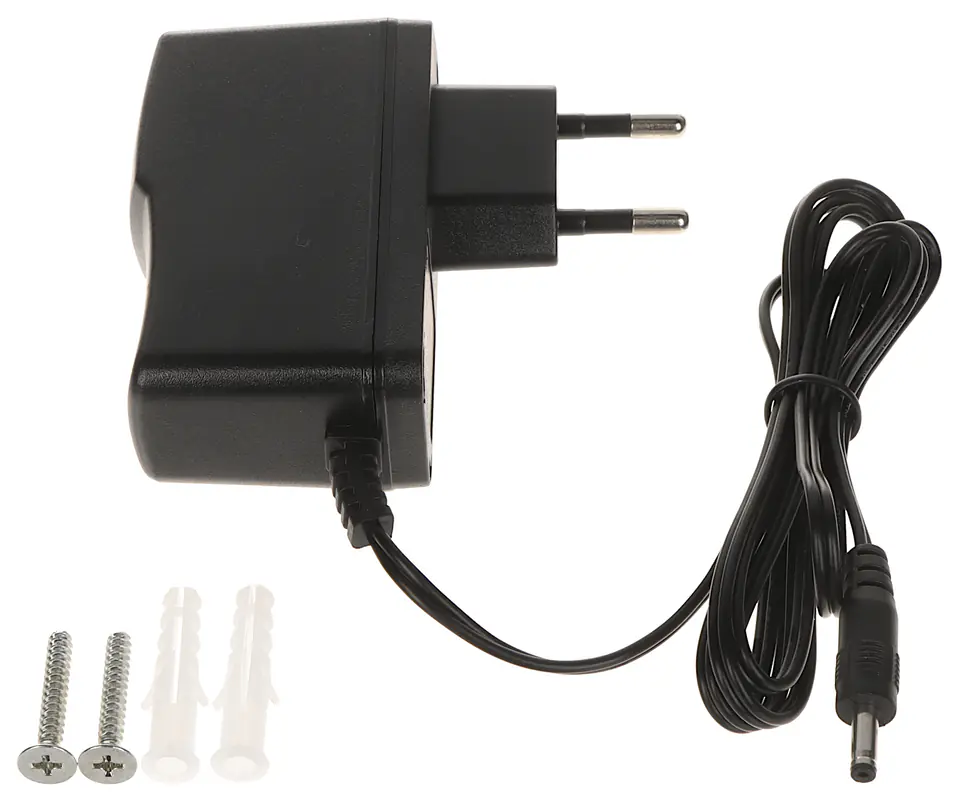

- External power supply: input: 100~240V AC, output: DC 5V/2.0A
- Low power consumption, maximum <10W
- Dimensions: 132x84x31 mm (mini size)
- Weight: 0.35 kg
-Black
- Warranty: 2 years
