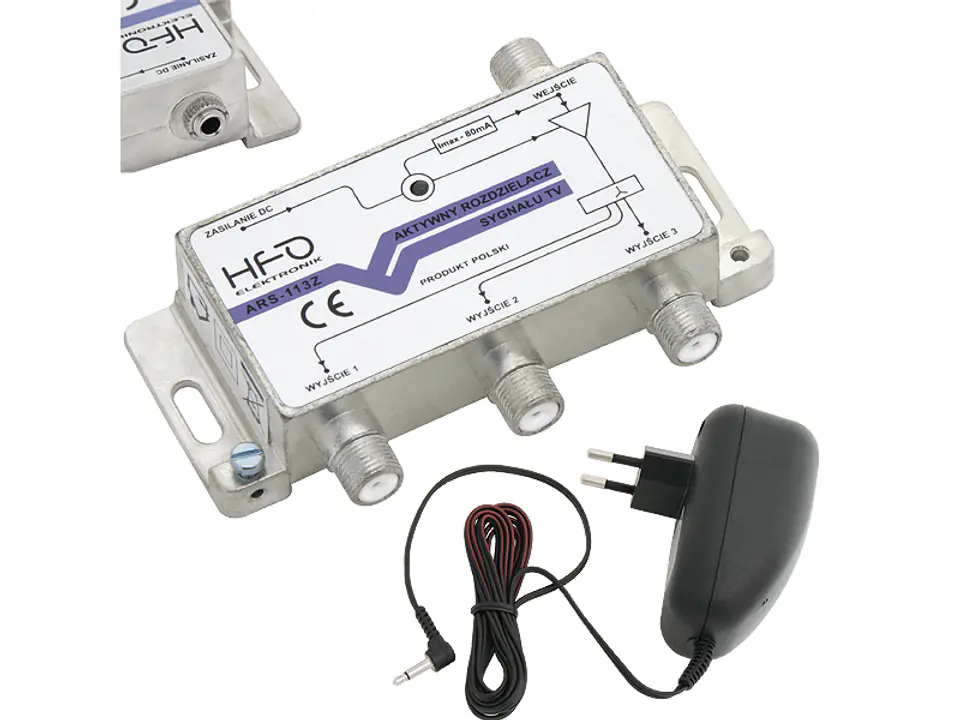

An active signal splitter with a slight gain can be used with virtually any type of TV antennas - its use does not cause a decrease in the signal level at the outputs. It can be used to power an antenna amplifier via a coaxial cable - thanks to this it is not necessary to use an additional power supply with a separator to power the antenna preamplifier. The device has a diode indicating the operating status and handles for fixing the device. The housing is made of light metal alloy providing high resistance to interference and weather conditions. A power supply is also included.
Specification:
- Sockets: 4 x "F" (1 x inputs, 3 x outputs)
- Max. gain level: 10dB (for outputs 1 and 2), 6.5dB (for output 3)
- Gain band: UHF and VHF (channels 6-60)
- Includes broadcasting band: MUX 1, MUX 2, MUX 3, MUX 8 and local multiplexes
- Power supply: 12V/330mA
- Dimensions: 35x70x95 mm
- Included: ARS113Z splitter + 12V/330mA power supply
