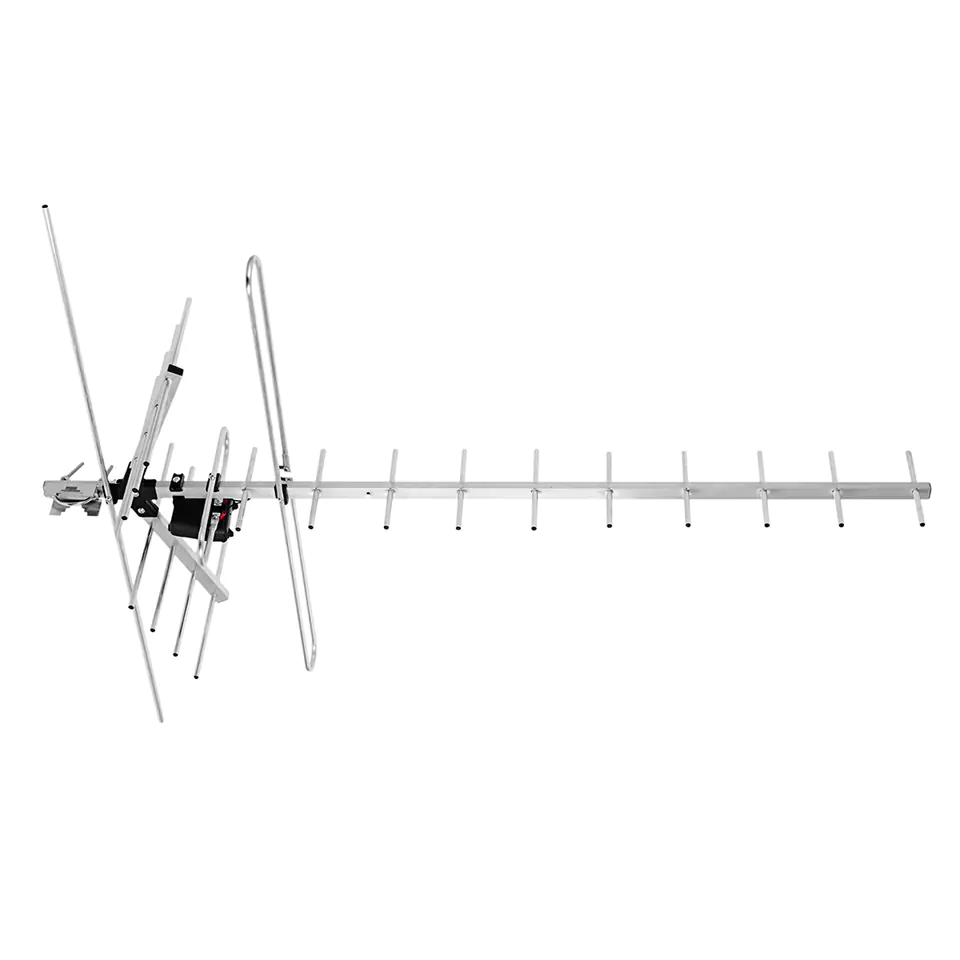

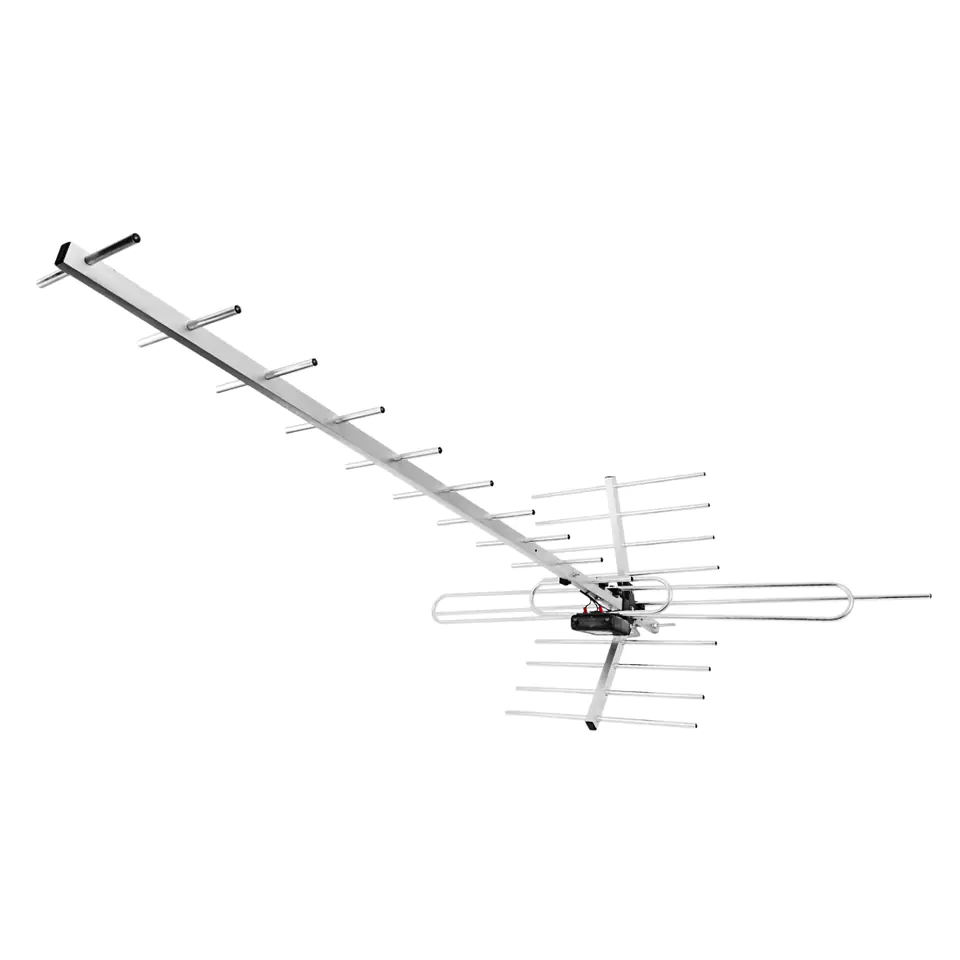

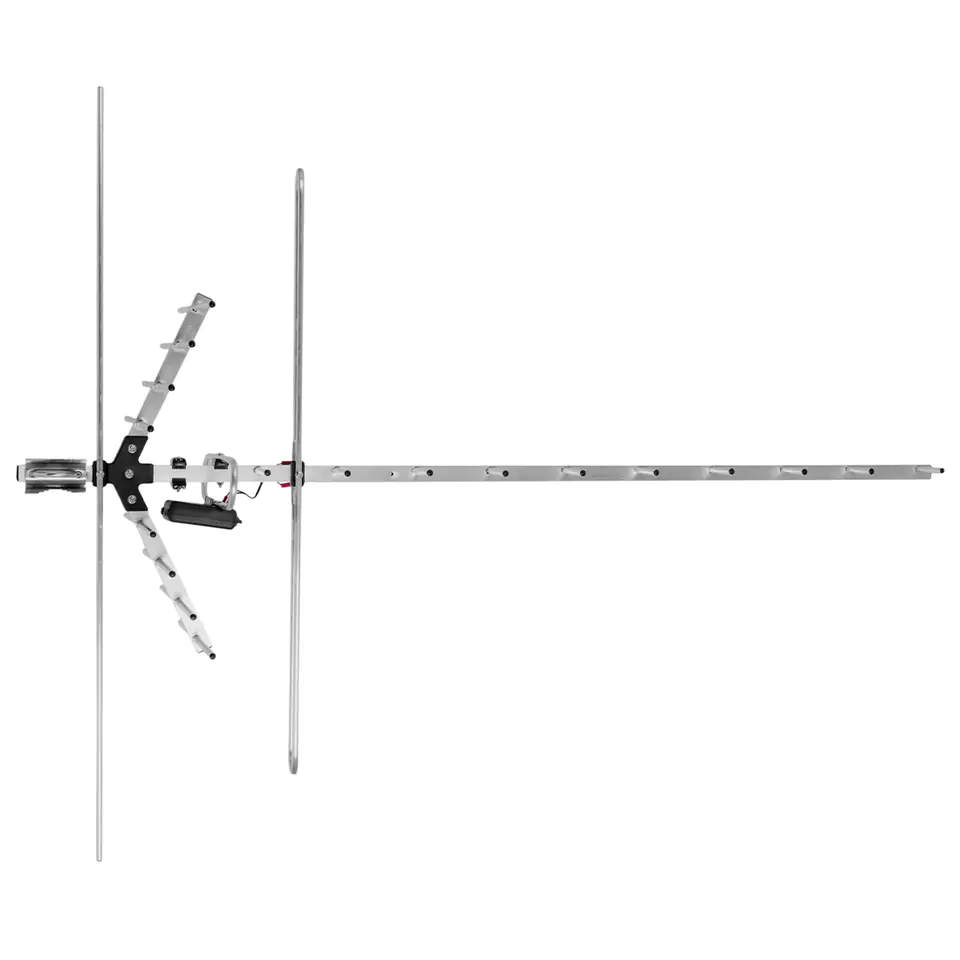

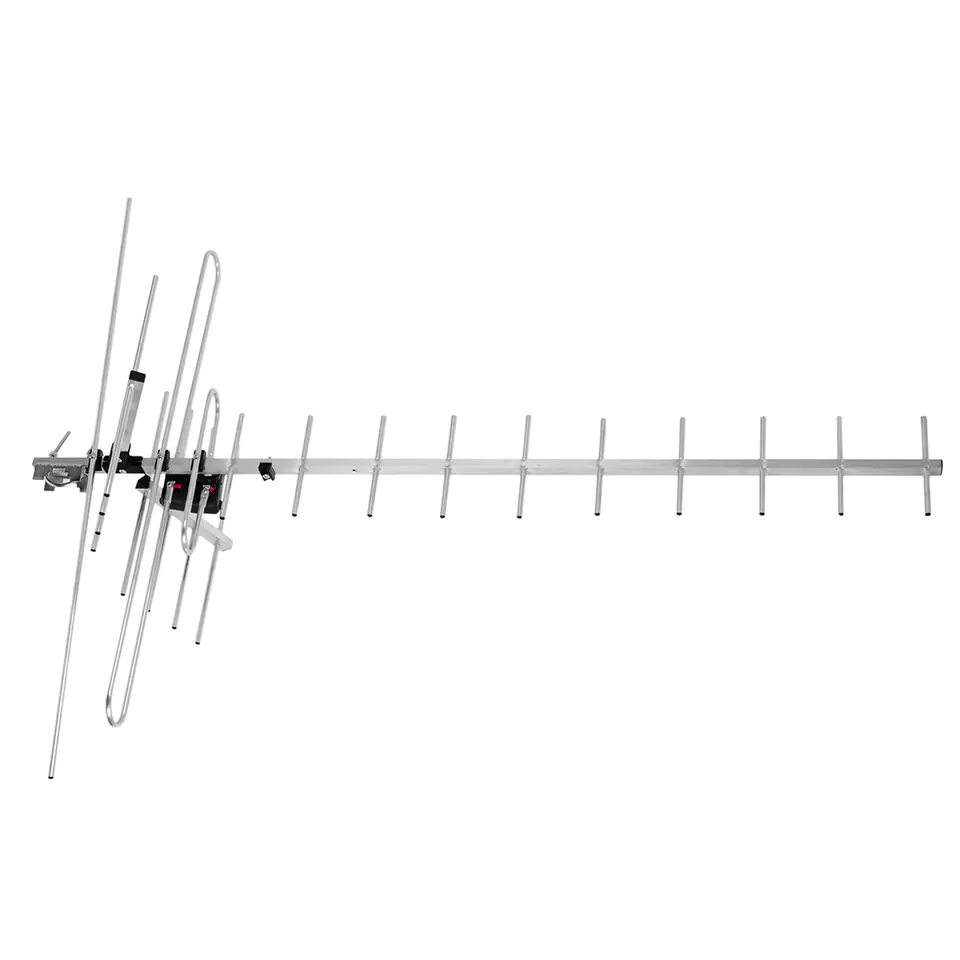

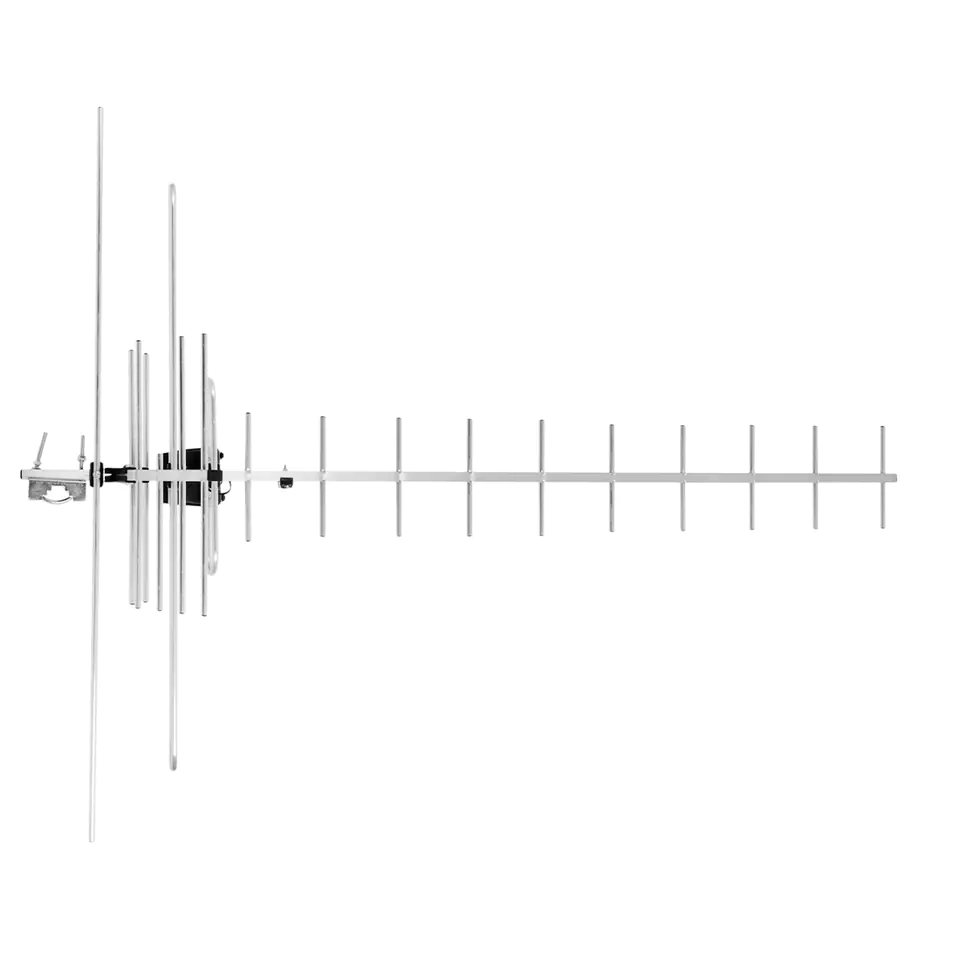

The yagi Combo Spacetronik SP-21HV antenna is an antenna designed to receive TV signals in the VHF range on channels 5-12 in vertical or horizontal polarization and UHF on channels 21-60 in horizontal polarization that meets the requirements of DVB-T reception.
The antenna sold by us allows you to receive TV signals broadcast on all MUX-1, MUX-2, MUX-3, MUX-8 multiplexes.
The antenna is equipped with a full-range antenna symmetrizer (K 1-60) as standard.
Method of mounting the antenna and the antenna cable of the instruction manual.
Technical data:
- channel - 5-12
- energy gain - 6-8dB
- output impedance-300Ohm
- polarization - vertical or horizontal
- channels - 21-60
- energy gain - 9-15dB
- output impedance-300Ohm
- polarization - horizontal
Remark:
In the event of a "freeze frame" effect, "boxing", it is recommended to use a SWA-9801 antenna amplifier and a 12V power supply , then the antenna gain increases to 47dB!
User manual to download >>HERE<<
DVB-T Antenna Yagi Combo SPACETRONIK SP-21HV
€22.17
Shipping from warehouse: D3
Estimated shipping: Tue, May 7 - Fri, May 10
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 5903031006445
Share this product:
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
