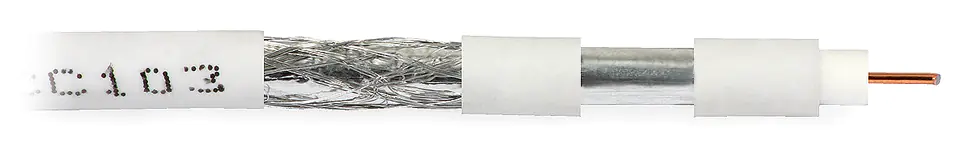

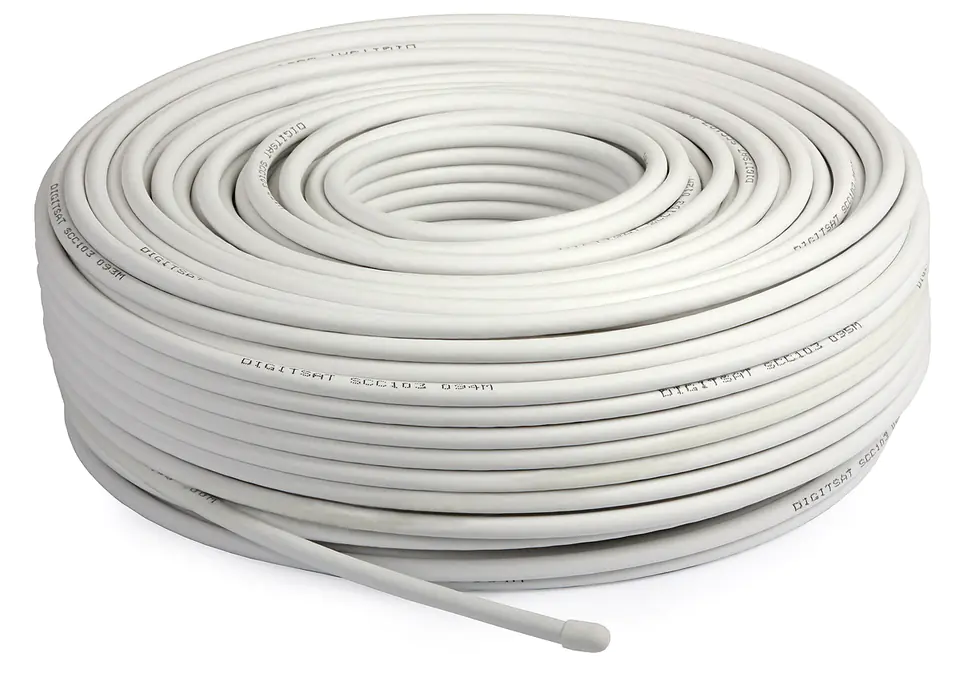

Digitsat Basic cables are designed for internal antenna installations. The SCC series has a steel copper-plated core. It is perfect for the construction of individual installations. These cables are characterized by relatively good electrical parameters.
| Coaxial cable SCC 103 Coaxial cable SCC 103 | |
| Rdzeń / Core | CCS 1.02mm |
| Dielectric | Gas injected |
| Screen /Screen | Braid / Screen 64 x 0.12mm + Foil / Foil |
| Coat /Sheath | PVC 6.8mm |
Tłumienie / Attenuation
| Częstotliwość / Frequency | Attenuation |
| 200 MHz | 9 dB |
| 1000 MHz | 21.5 dB |
| 2050 MHz | 29.5 dB |
