| Braid: | Al wire |
|---|---|
| Braid density: | 60 % |
| Cable attenuation over a distance of 100m: | 3.1 dB @ 50 MHz6.1 dB @ 200 MHz9.1 dB @ 450 MHz12.9 dB @ 860 MHz14.3 dB @ 1000 MHz17.1 dB @ 1350 MHz20.1 dB @ 1750 MHz23 dB @ 2150 MHz27.3 dB @ 3000 MHz |
| Capacity: | 54 pF/m ± 2 |
| Coating color: | Black |
| Coaxial cable: | CTF 167 |
| Dc conductor resistance: | 9 Ω/km |

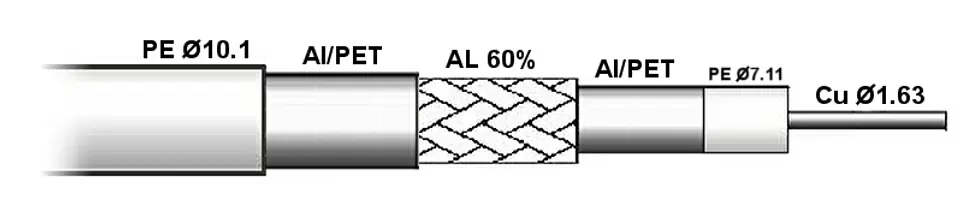

| Dielectric: | Ø 7.11 mm (physically foamed) |
| Impedance: | 75 Ω ± 3 Ω |

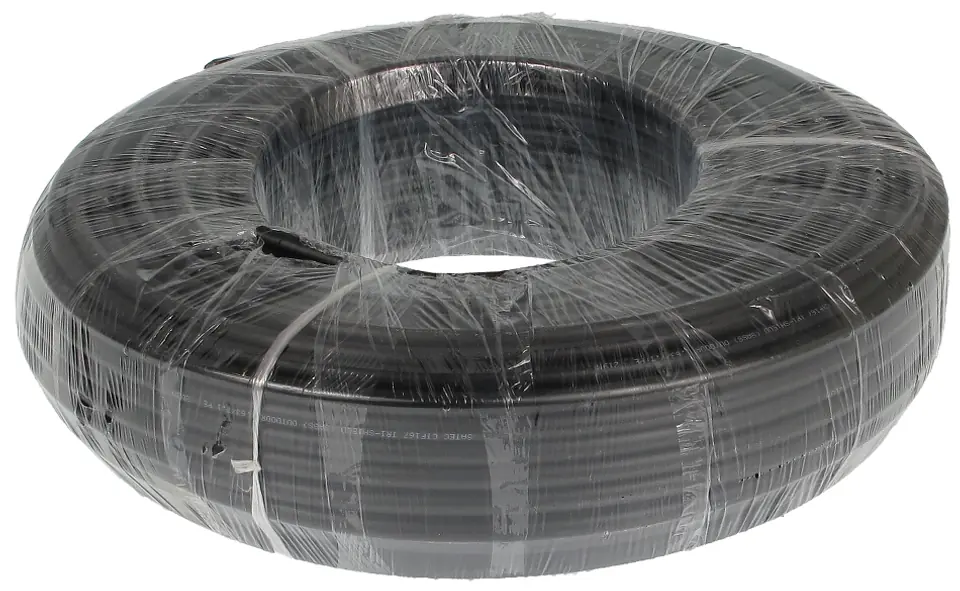

| In ": | 100 m . Price for 1m when buying the whole roll |
| Internal vein: | Ø 1.63 mm Cu Wire |
| Match damping: | 24 dB @470 MHz20 dB @1000 MHz18 dB @3000 MHz |
| Outer shell: | Ø 10.1 mm PE |
| Scales: | 35 kg/km |
| Screen: | 2 x Al/PET foil - Gelatinized |
| Shielding efficiency: | > 110 dB @ 30 ... 1000 MHz |
| Warranty: | 2 years |
| Wave shortening factor: | 85 % |
CTF-167/ZEL is a modern cable with an impedance of 75 Ω characterized by very good electrical and mechanical parametersPolyethylene (PE) used for coating is resistant to sunlight, UV and moisture
The cable is gel-filled, so it can be laid in the ground without additional covers
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
