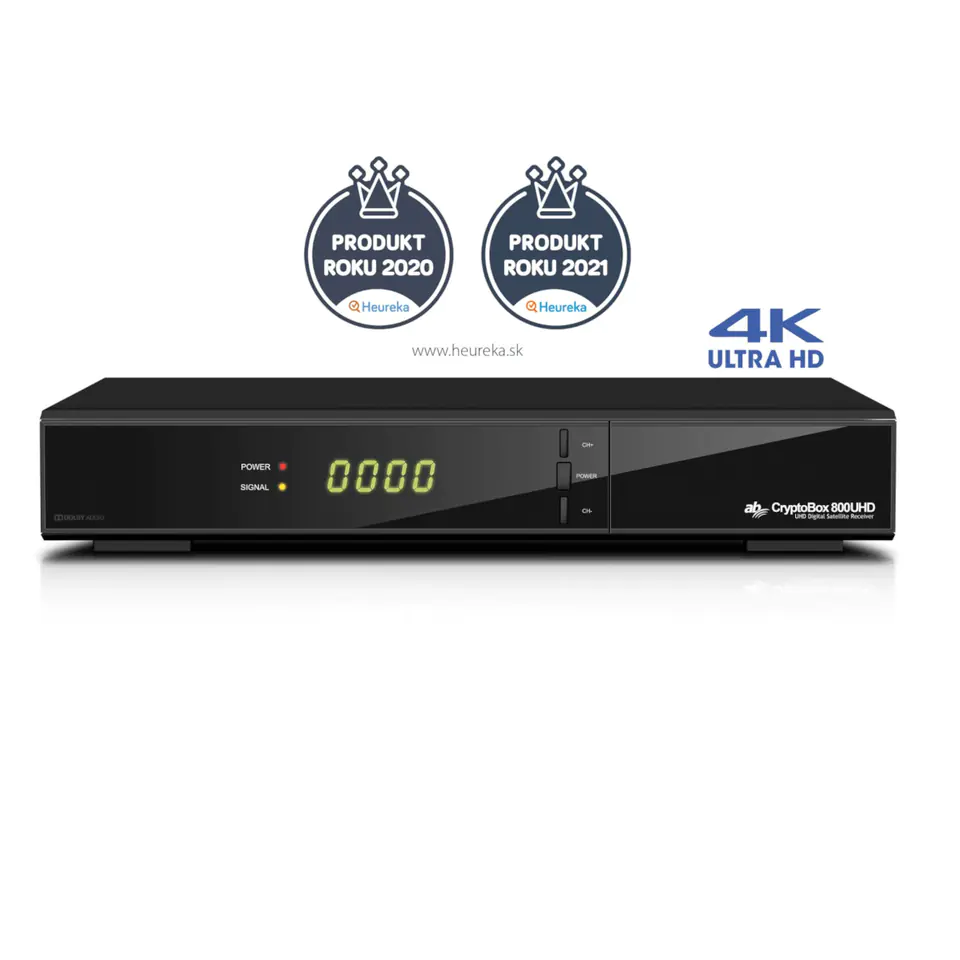

Tuner AB CryptoBox 800UHD 4K H.265 HEVC
Technical specification:
- Supported UHD 4K resolution and H.265 HEVC codec
- Retained functionality from the previous 700HD model
- Simple installation - setting the receiver in two steps
- FastScan - quick search for channels by operators, e.g. Canal+, Cyfrowy Polsat, SmartHD
- Time-shift recording and PVR to USB function
- Support for 3G USB modems
- Support for USB WiFI adapters (Ralink RT5370)
- PIG (image in graphic)
- FTP manager, games, weather and much more...
- Automatic PAL/NTSC conversion
- 26 favorite TV groups
- New 1GHz processor with ALIM 2661 chipset
- 16 MB flash memory
- 256 MB DDRIII memory
- 1x DVB-S2X satellite tuner
- 1x Universal Card Reader
- 1x HDMI port
- 1x RS232
- 2x USB 2.0 (1x front panel, 1x back panel)
- 1x LAN RJ 45
- 1x Optical S/PDIF Digital Audio Output
- 7 segment display
- 7-day electronic EPG guide
Tuner:
- Input impedance 75 Ω
- Input frequency 950~2150MHz
- QPSK speed 1 ~ 45 Mb
- 8 PSK 2~30
- Tuner ALI-3031B
- Demodulation QPSK.8PSK, 16APSK, 32APSK
Video:
- Supports H.265 and H.264 compression
- Video encoding provides VBR and CBR
- Low latency encoding
Audio:
- Support MPEG L1/L2
- Support Dolby Digital / Dolby Digital Plus audio
- AAC-LC, HE AAC V1 / V2, APE / FLAC / Ogg / AMR-NB / WB, G.711 (u / a), Dolby MS11, HE-AAC DD transcoding
Graphics and display:
- Support 4K Ultra-High Definition
- 4Kx2K@60fps, 10bit decoding supported
Video/Audio Decoder:
- Support H.265 4K *2K@60fps decoding
- Support simultaneous multi-channel decoding
- DRA decoding support
- Dolby Digital / Dolby Digital Plus Decoder-Conv,
- Dolby True HD / DTS / DTS HD Core decoding; Supported By Dolby Digital / DTS
Other:
- Support PVR, Timeshift
- Support http/https, RTSP, RTMP, HLS network protocol
- Weather forecast, show weather information for preset city
- Supports media playback, multi-screen transcoding, etc.
- Support Ethernet network driver, WiFi 5370/7601/8188 via USB2.0
- RSS news support
- Support for multiple FORMATs PAL, NTS
- Supports adjusting image dimensions depending on screen size
- ACM
- T2MI
- PLSN
- Multistream
Device parameter:
- Input voltage AC100 ~ 240 V, 50/60 Hz
- Temperature 0~40°C
- Size 180 * 128 * 35mm
- Dolby Digital & Dolby Digital Plus License
- CE License
Presentation of AB CryptoBox 800UHD:
