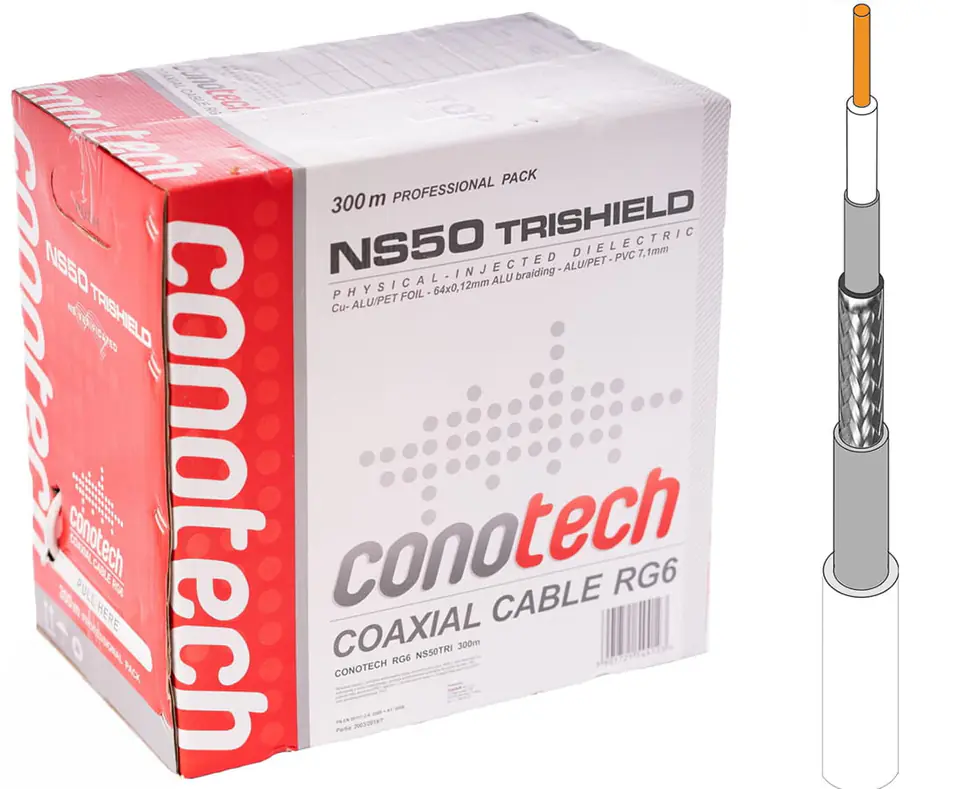

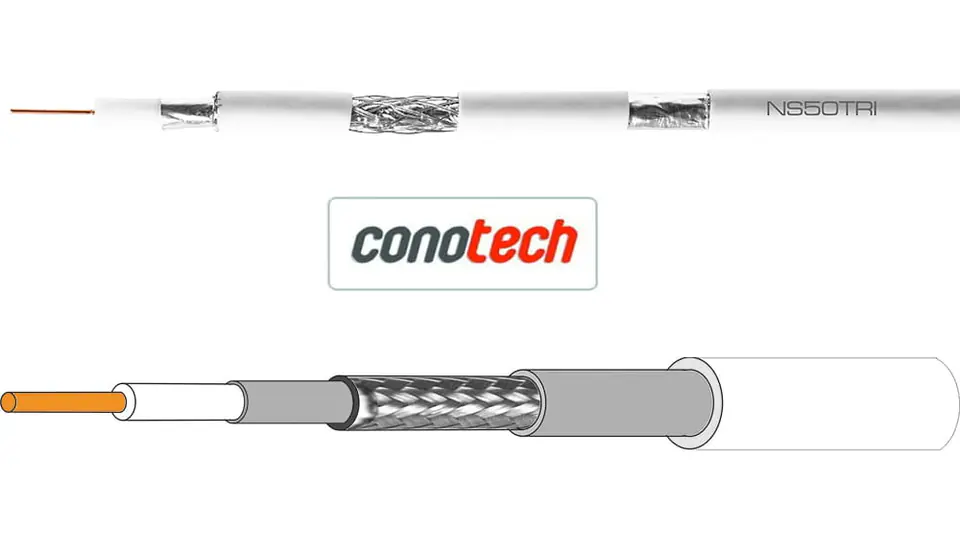

Triple shielded coaxial cable type RG6, with an inner vein made of copper wire with a diameter of 0.80 mm. The conductor was wrapped in polyethylene physically foamed with nitrogen (N), characterized by particularly effective dielectric insulation. Shielding of the cable is made in accordance with the Trishield standard, in which triple core protection is used, consisting of a layer of AL/PET aluminum foil, an aluminum braid with a coverage factor of 85% and another layer of AL/PET aluminum foil. The outer shell is made of pvc in white, with a diameter of 6.8 mm, which performs a protective function against mechanical damage and allows quick and comfortable cable routing.
Coaxial cable (also called coaxial or coaxial) enables the transmission of digital and sine wave signals in the range of 20 Hz - 15 GHz. Its use is used to create wired connections in ICT installations. The cable is dedicated to indoor SMATV systems, individual and multiswitches. It can be successfully implemented to receive DVB-T digital terrestrial television, FM/DAB radio and DVB-S/S2 satellite television. It is also used in CCTV installations.
General specification of the antenna cable:
Type: RG-6
Inner conductor: copper (CU), ø 0.80 ± 0.02 mm
Conductor insulation: physically nitrogen-foamed polyethylene (FPE), ø 4.80 ± 0.02 mm
Screen 1: Aluminium/PET (AL/PET) film, 0.04 mm
Braid: aluminum wire with optical coating 85%, 64x0.12 mm
Screen 2: Aluminium/PET (AL/PET) film, 0.04 mm
Outer sheath: PVC, white
Wire diameter: ø 6.8 mm
Impedance: 75 ± 3 Ω
Operating temperature: -20 C ÷ +70 C
Laying temperature: 0 C ÷ +70 C
Minimum bending radius [x cable diameter]: >8
Purpose: internal
Compliance with standards: 2011/65/EU;2015/863 (RoHS 3)

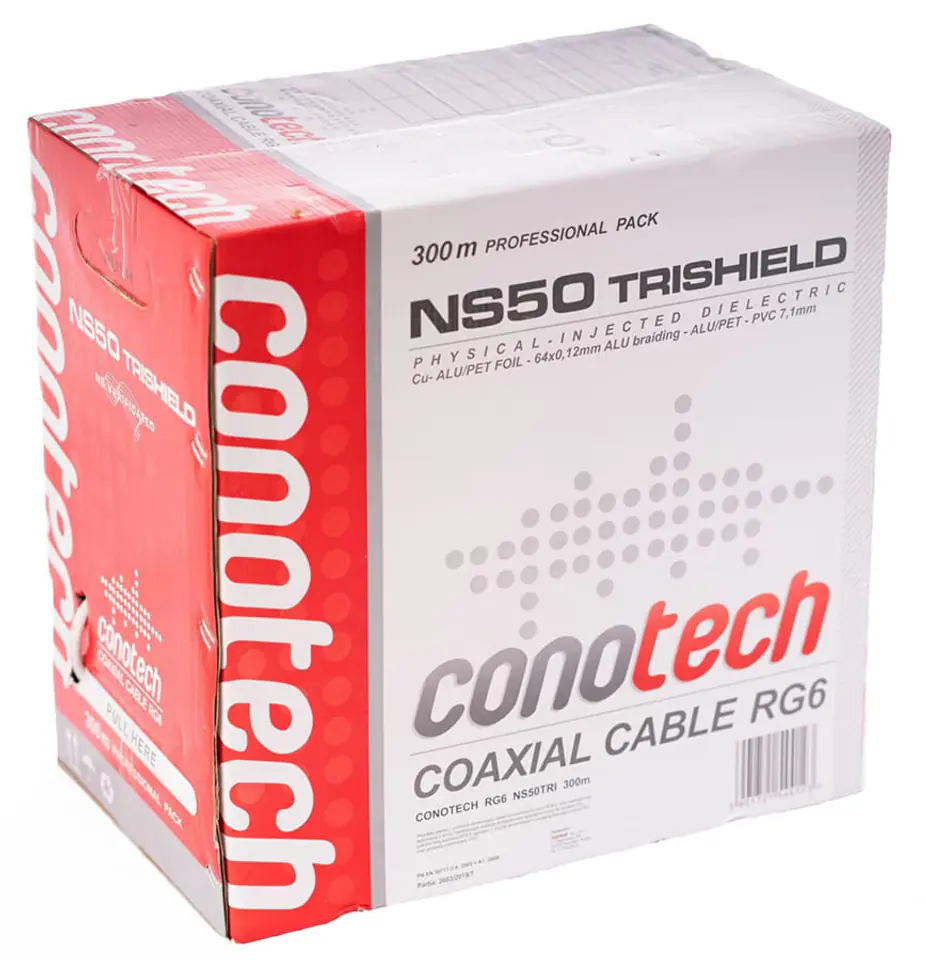

Length: 1 running meter
Brand: CONOTECH
