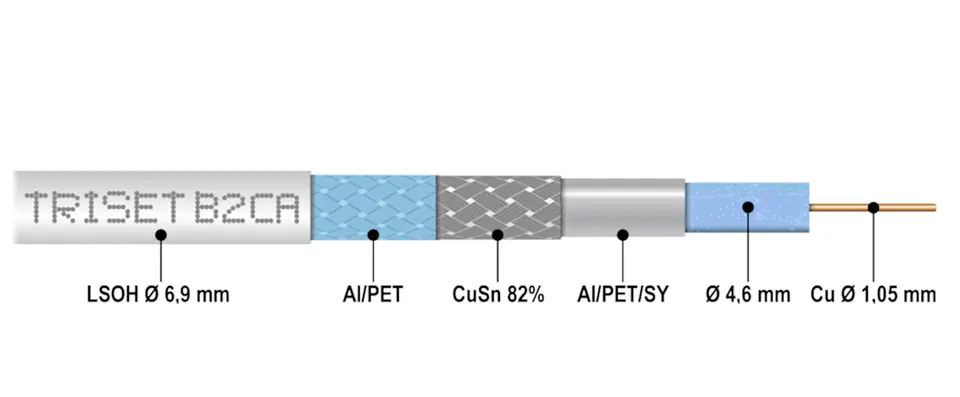

| Braid: | 82 % - Cu + Sn wire |
|---|---|
| Capacity: | 52 pF/m |
| Coating color: | white |
| Coaxial cable: | TRISET |
| Dc conductor resistance: | 20 Ω/km |
| Dielectric: | Ø 4.6 mm (physically foamed) |
| Impedance: | 75 Ω |

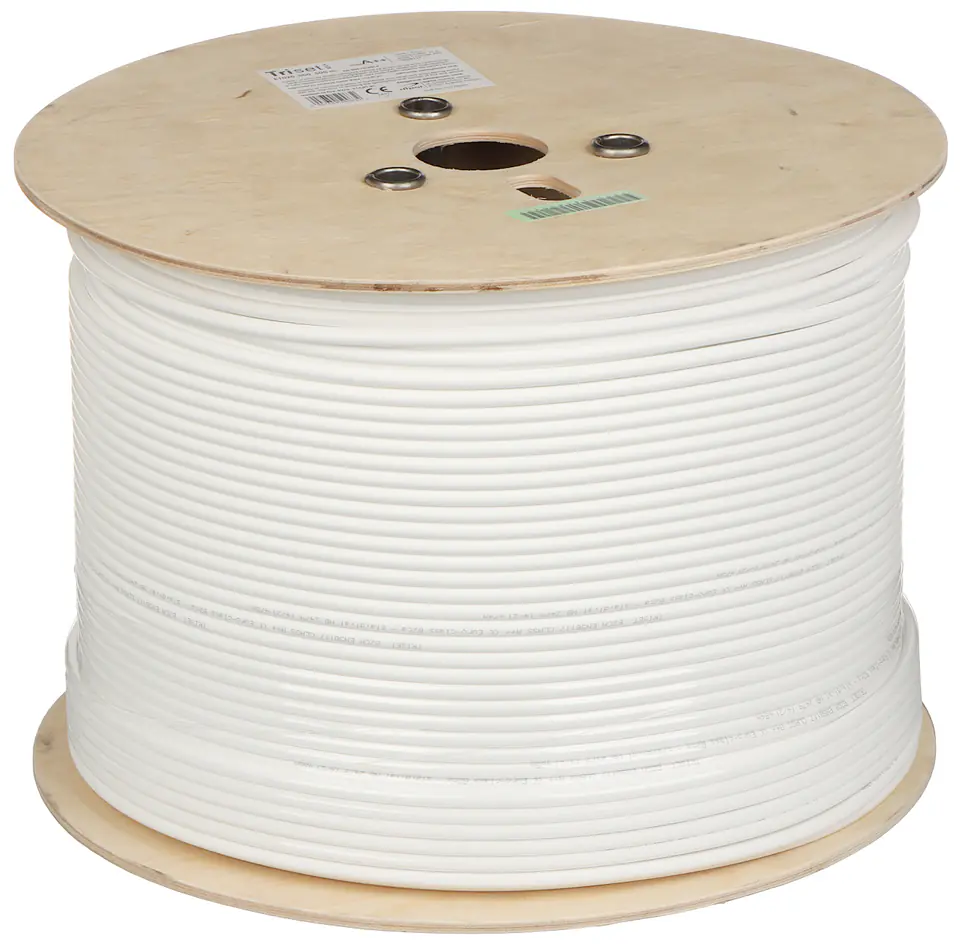

| In ": | 500 m . Price for 1m when buying the whole roll |
| Internal vein: | Ø 1.05 mm Cu Wire |
| Minimum bending radius: | 35 mm |
| Outer shell: | Ø 6.9 mm PVC LSZH |
| Scales: | 54 kg/km |
| Screen: | Triple Film - Al/PET/SY Film - Al/PET Shielding class A++ |
| Selected features: | low attenuation excellent fit high shielding efficiency The cable meets the EN50117 standard and complies with the A++ class standard throughout the transmission band Reaction to fire class according to CPR - B2ca-s1a, d1, a1 |

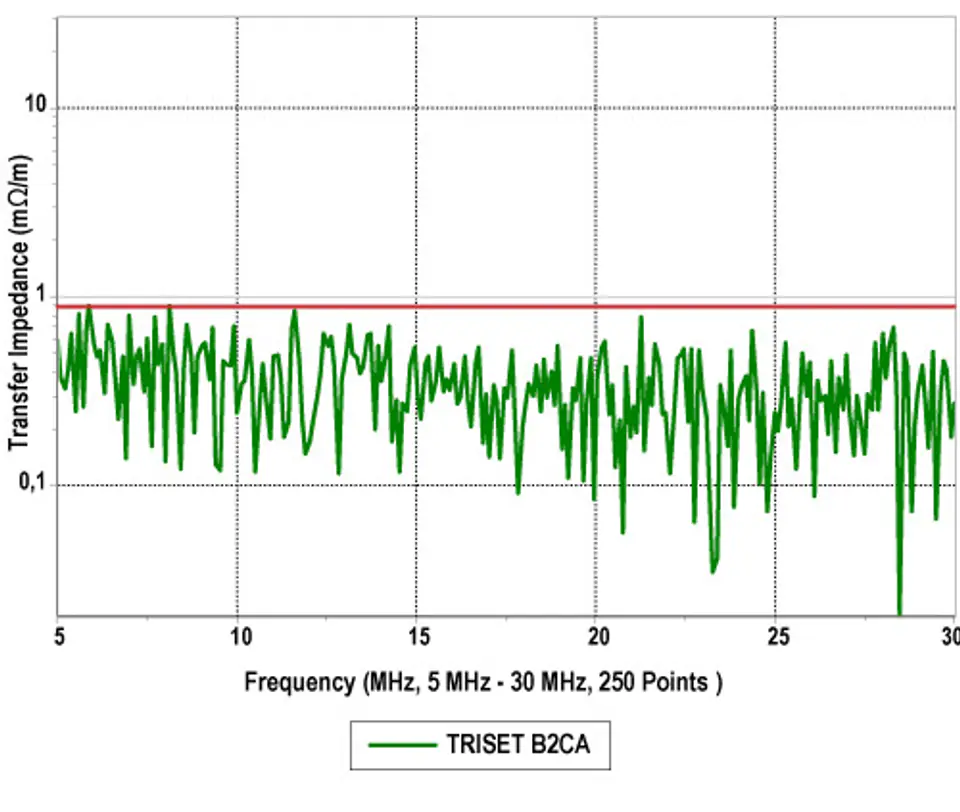

| Shielding efficiency: | > 105 dB @ 30 ... 1000 MHz> 95 dB @1 ... 2 GHz> 85 dB @2 ... 3 GHz |
| Warranty: | 2 years |
| Wave shortening factor: | 85 % |
High-quality coaxial cable used in individual and MATV systems, recommended especially for cable operators and installers as well as for complex multiswitch installations. To facilitate work, a length marker has been printed on the cable every 1 m
The cable meets the EN50117 standard and complies with the A++ class standard throughout the transmission band
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
