Digitsat Premium TCC 113 cable designed for indoor use. The product is packed in a convenient PULL BOX to prevent tangling and dirt of the cable - just pull the tip to measure the desired length.
Copper conductor 1,13 braid 144 wires
The cable meets the requirements of the Regulation of the Minister of Transport, Construction and Maritime Economy in the law on technical conditions for equipping buildings and their location.

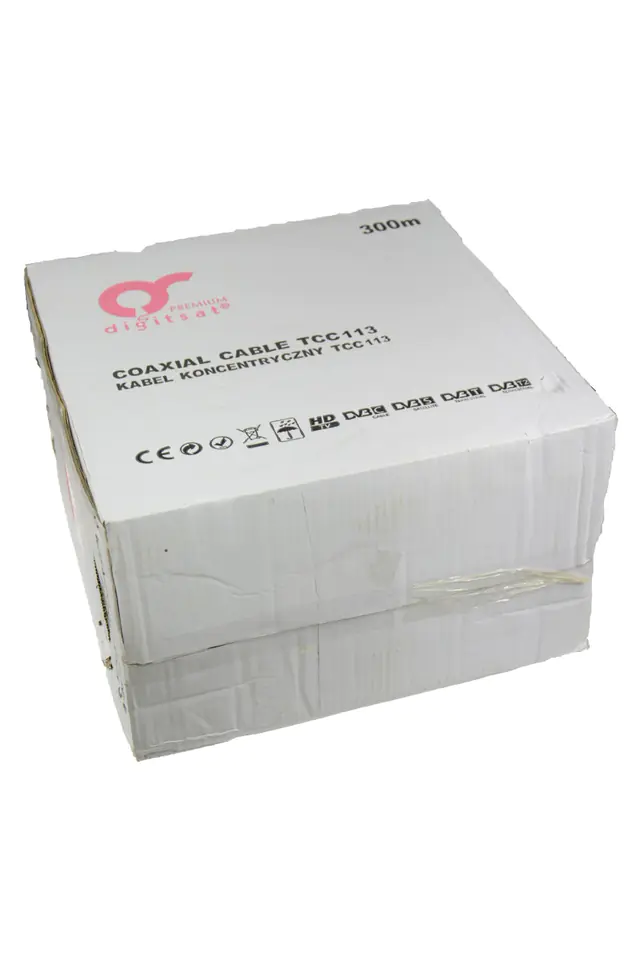

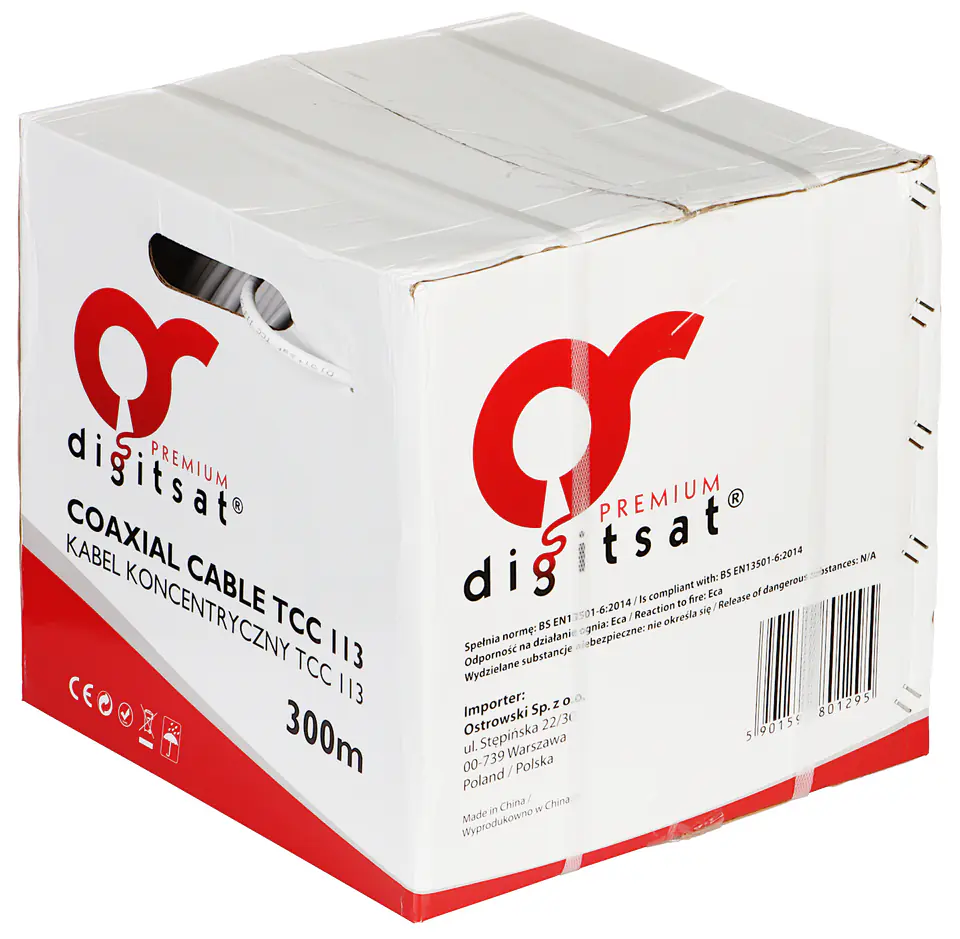

PULL BOX - 300mb.
RoHS and CE compliant.
Specifications:

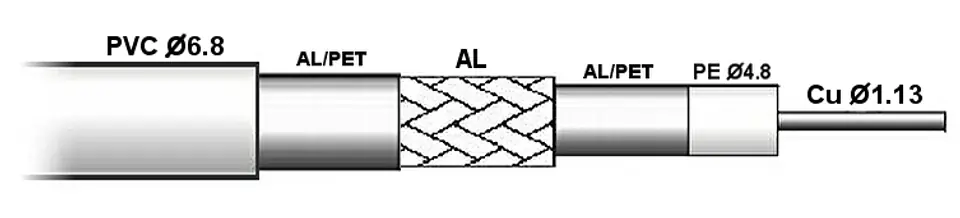

Core: Cu 1.13mm
Dielectric / Dielectric: Gas foamed / Gas injected
Screen /Screen: AI/PET foil 0.04mm
Coat /Sheath: 6,8mm white PVC
Attenuation:
200 MHz 8 dB
1000 MHz 19 dB
2000 MHz 28 dB
COAXIAL CABLE TCC-113-TRISHIELD/300
€140.74
Shipping from warehouse: D3
Estimated shipping: Thu, May 2 - Mon, May 6
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- TCC-113-TRISHIELD/300 / 5901592801295
Share this product:
Specification
| Braid: | 144 x 0.12 mm Al/PET Wire |
|---|---|
| Braid:: | 144 x 0.12 mm Al/PET Wire |

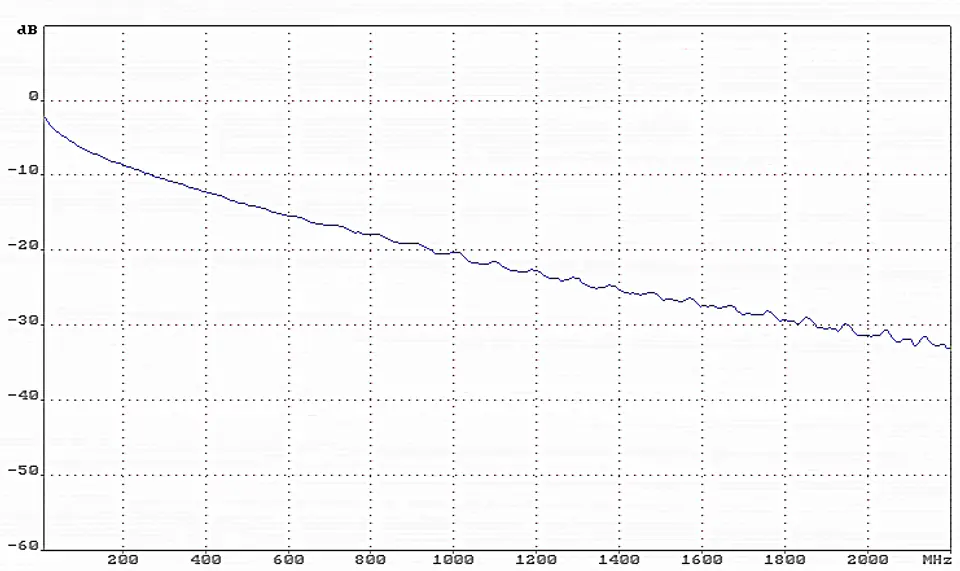

| Cable attenuation over a distance of 100m: | 6.2 dB @ 50 MHz9.1 dB @ 230 MHz14.1 dB @ 470 MHz19.2 dB @ 860 MHz20.2 dB @ 1000 MHz24.8 dB @ 1350 MHz28.1 dB @ 1750 MHz31.8 dB @ 2000 MHz32.7 dB @ 2150 MHz |
| Cable attenuation over a distance of 100m:: | 6.2 dB @ 50 MHz9.1 dB @ 230 MHz14.1 dB @ 470 MHz19.2 dB @ 860 MHz20.2 dB @ 1000 MHz24.8 dB @ 1350 MHz28.1 dB @ 1750 MHz31.8 dB @ 2000 MHz32.7 dB @ 2150 MHz |
| Coating color: | white |
| Dielectric: | Ø 4.8 mm (physically foamed) |
| Dielectric:: | Ø 4.8 mm (physically foamed) |
| Impedance: | 75 Ω |
| Impedance:: | 75 Ω |
| In ": | 300 m . Price for 1m when buying the whole roll |
| In the episode:: | 300 m . Price for 1m when buying the whole roll |
| Internal vein: | Ø 1.13 mm Cu Wire |
| Internal vein:: | Ø 1.13 mm Cu Wire |
| Outer shell: | Ø 6.8 mm PVC |
| Outer shell:: | Ø 6.8 mm PVC |
| Screen: | Dual Al/PET |
| Screen:: | Dual Al/PET |
| Shell color:: | white |
| Shielding efficiency: | > 95 dB |
| Shielding efficiency:: | > 95 dB |
| Warranty: | 2 years |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
