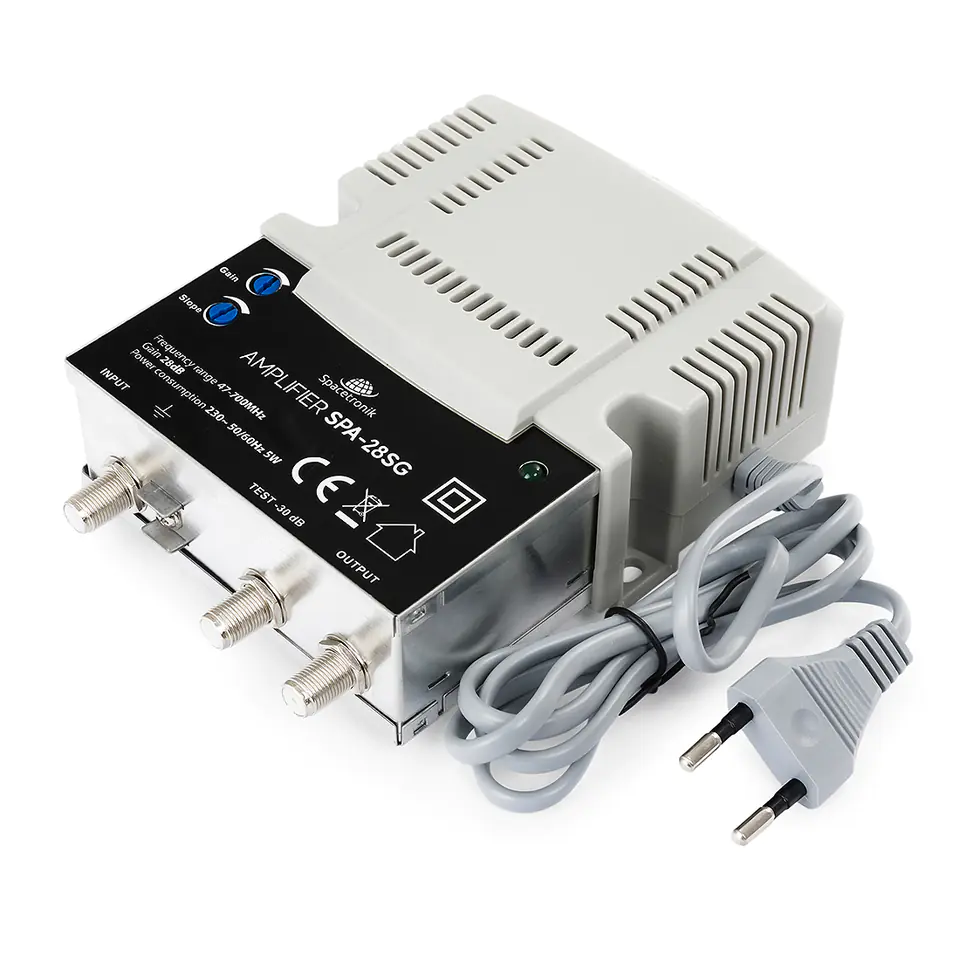

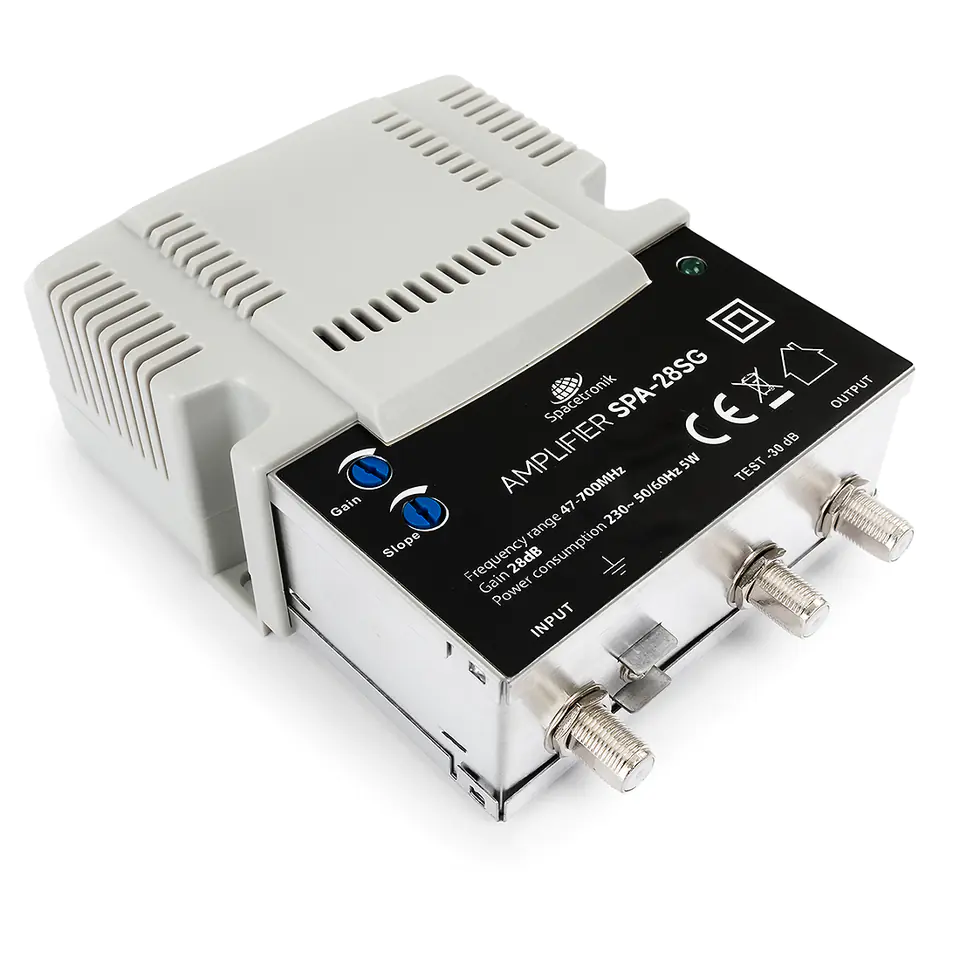

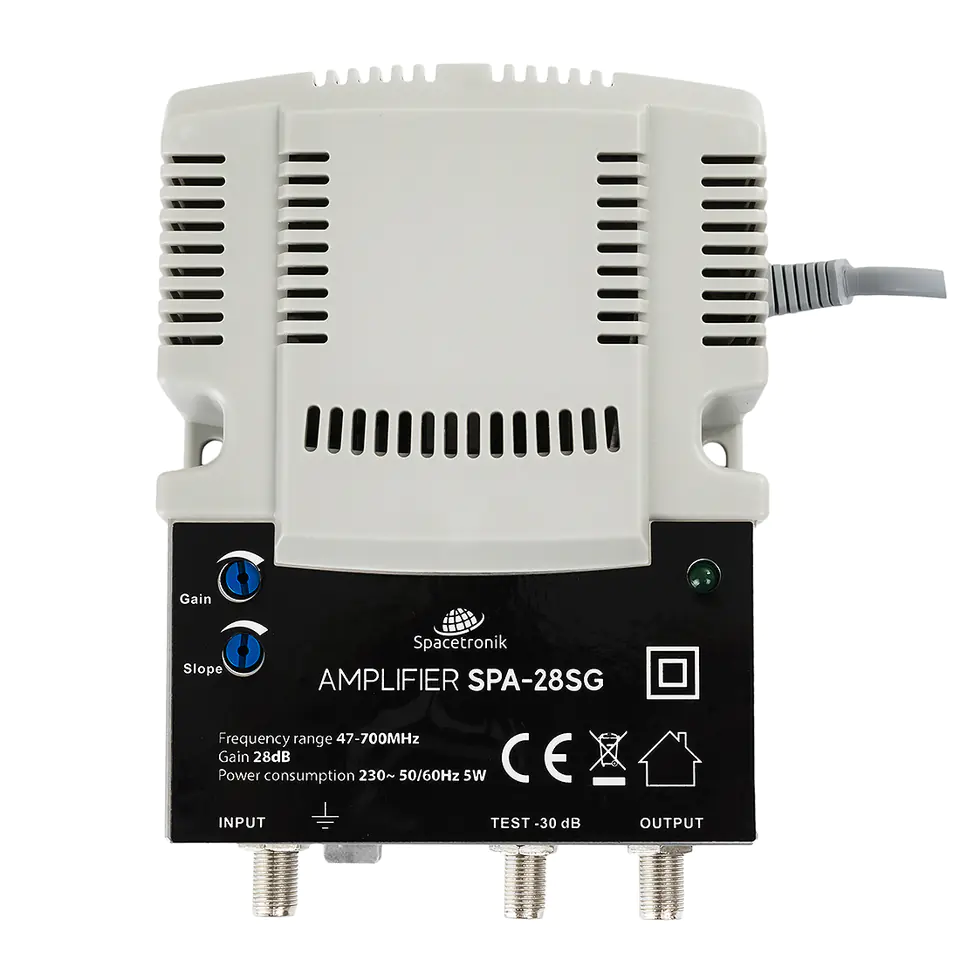

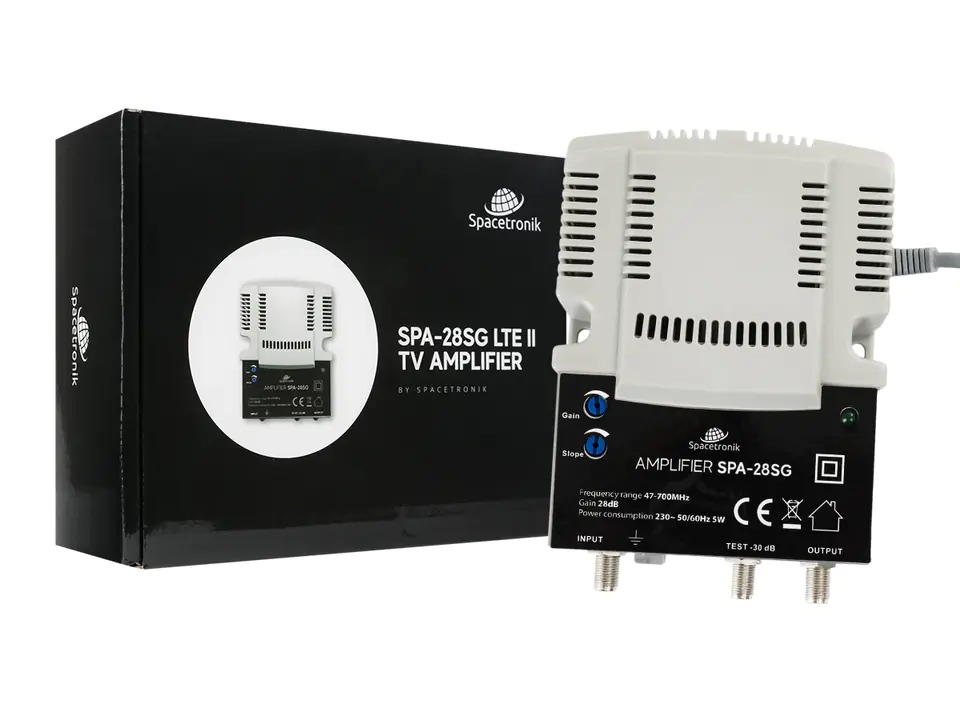

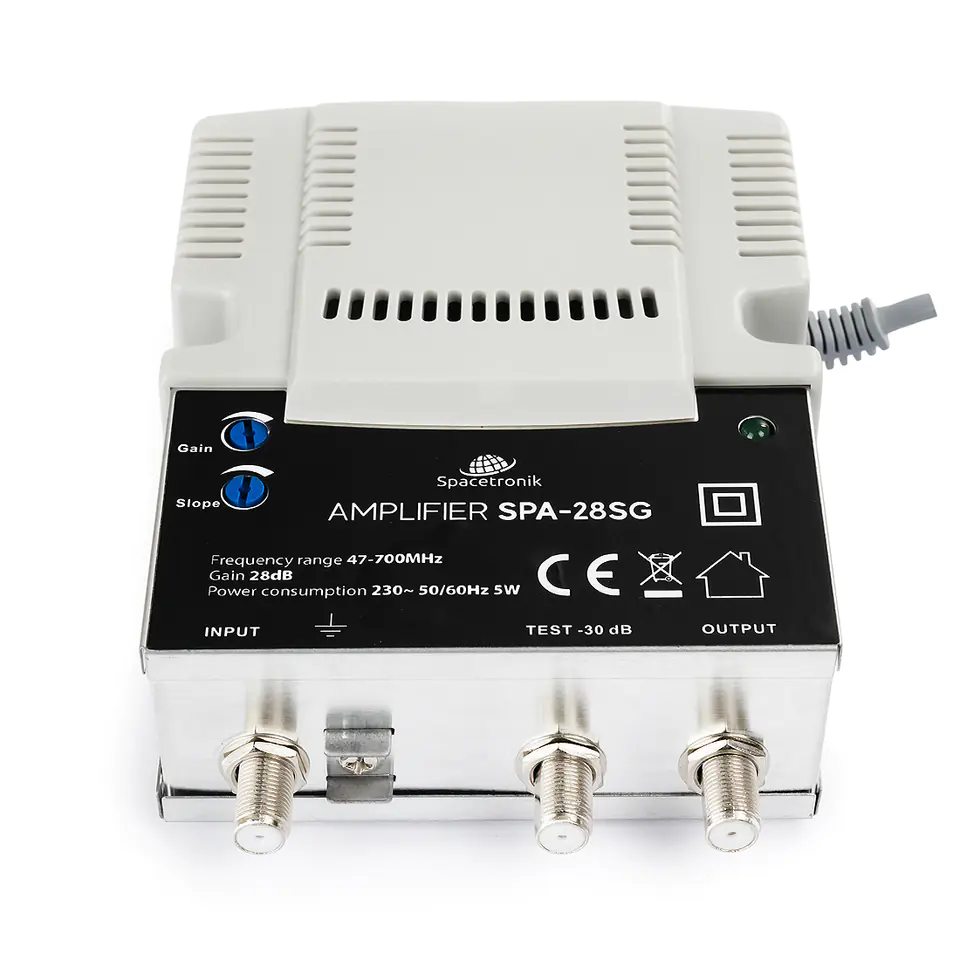

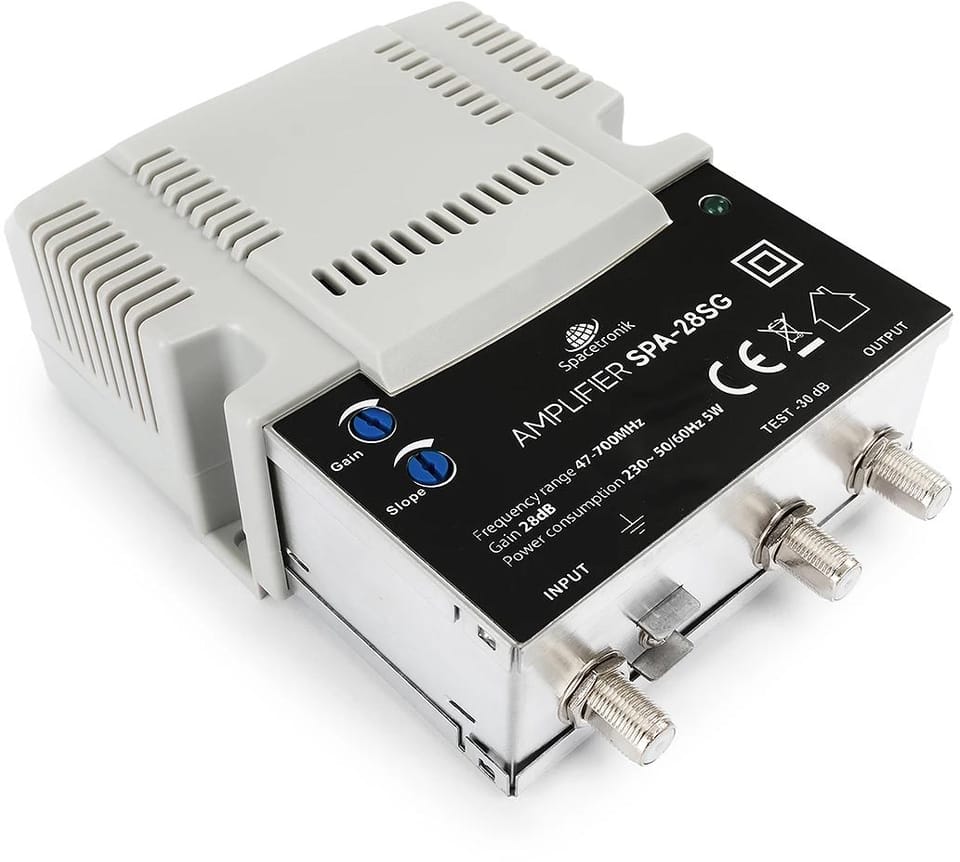

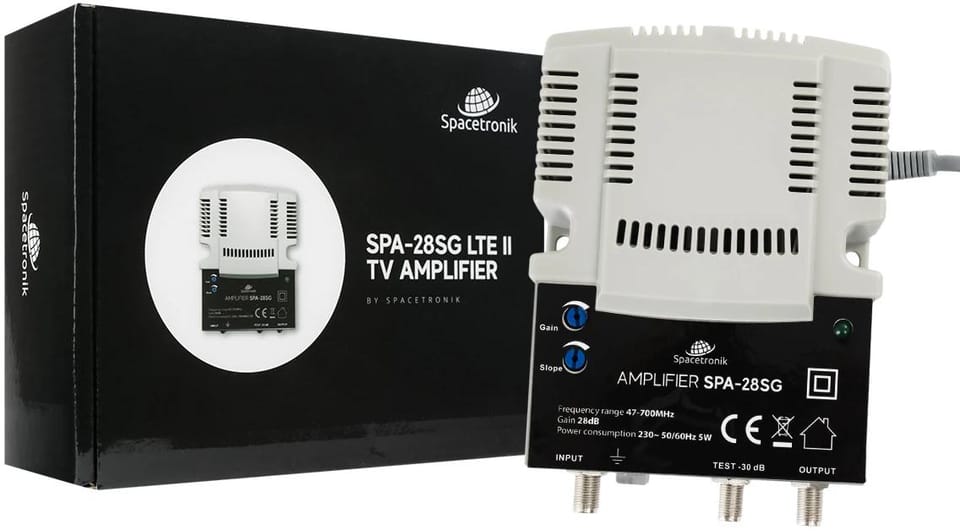

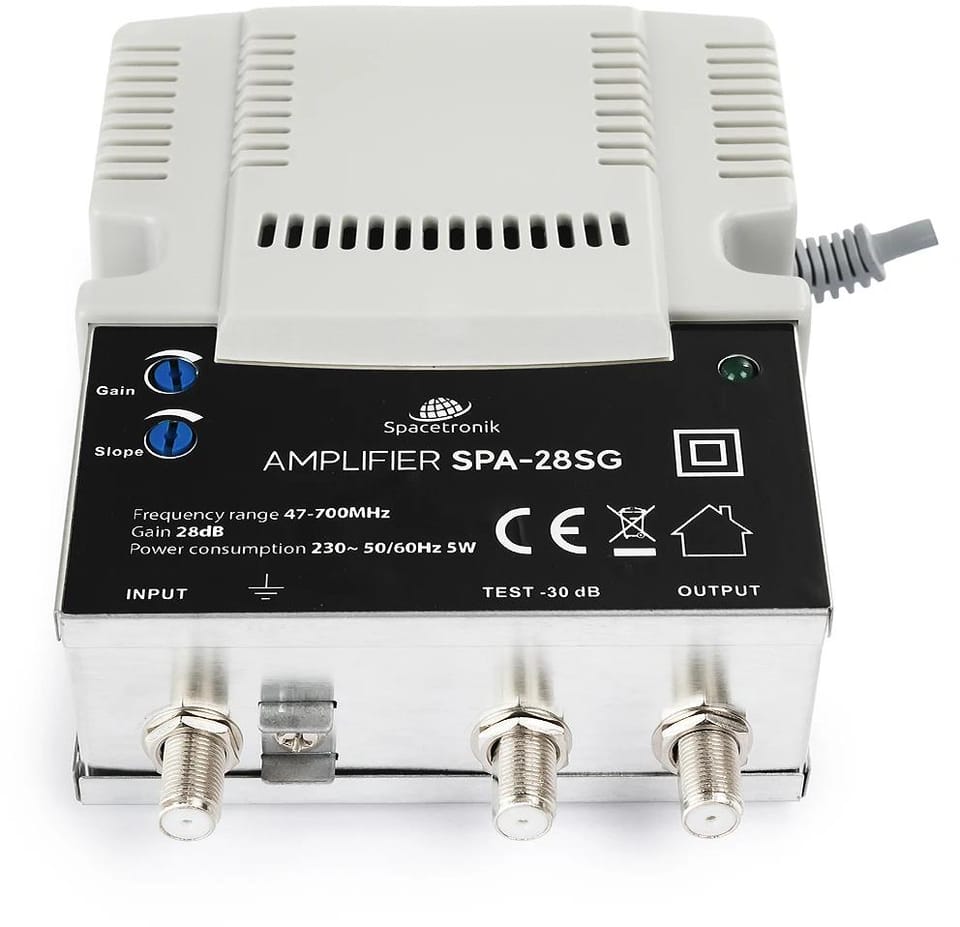

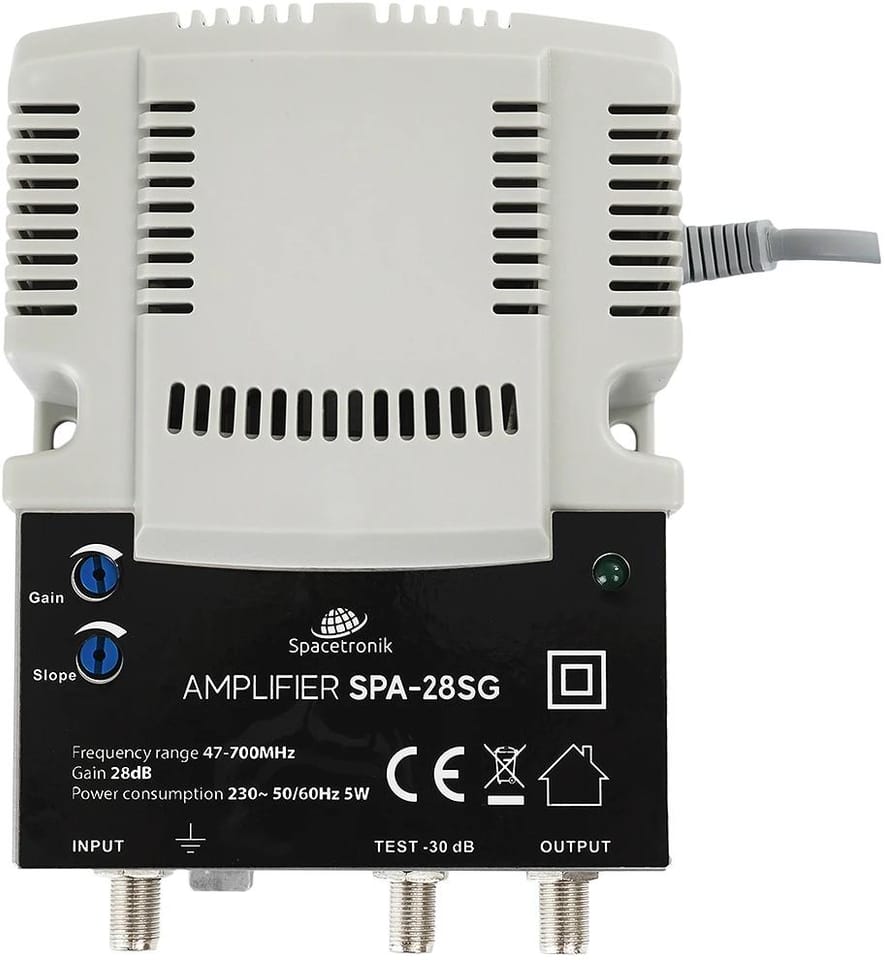

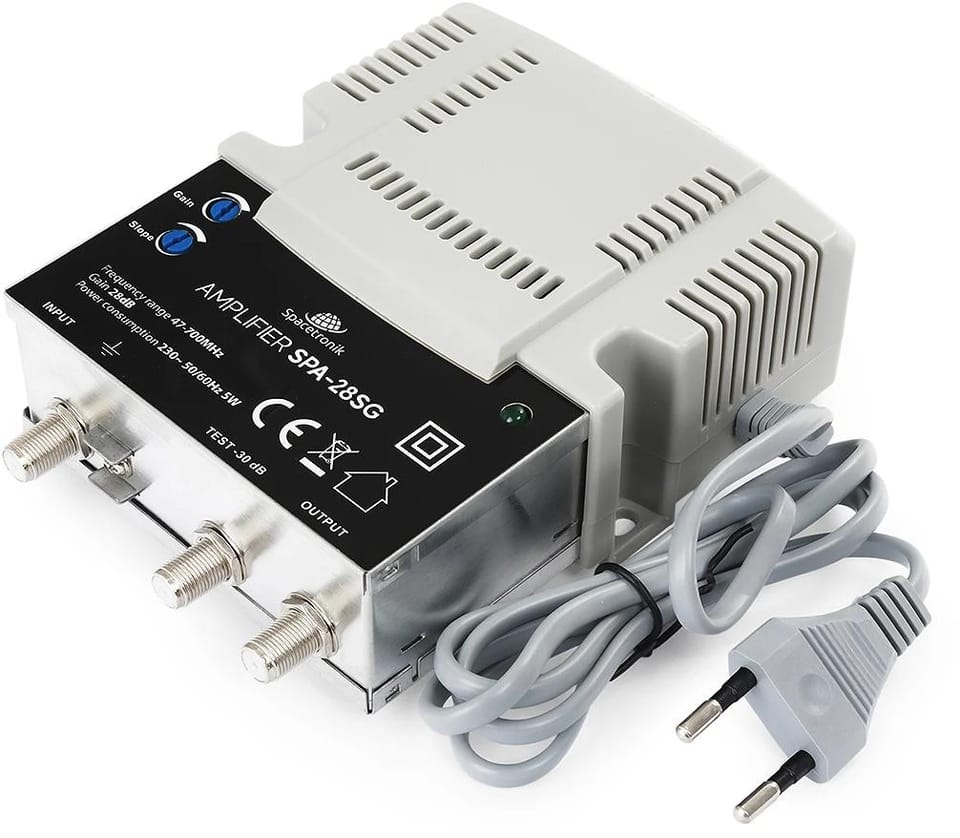

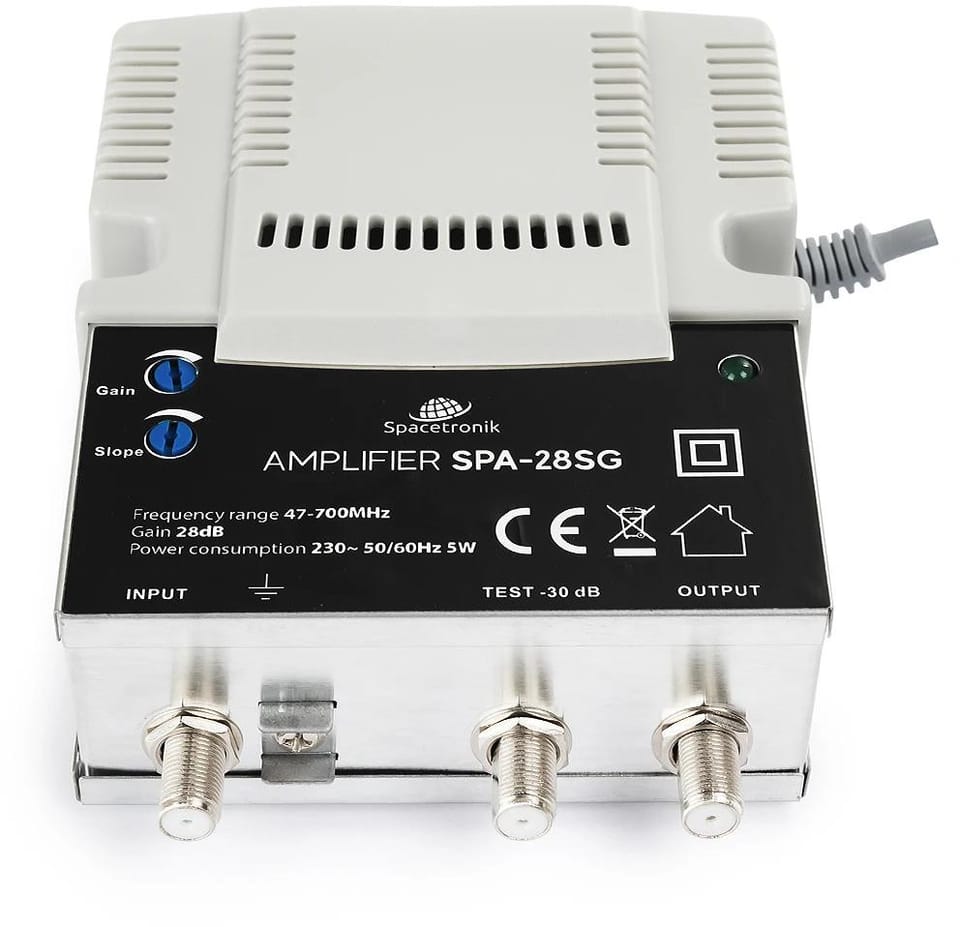

Adjustable terrestrial and cable TV signal amplifier Spacetronik SPA-28SG LTE II
SPA-28SG gainattenuation twooutputsThe device allows you to amplify the signal to adjustable up to 28dB. In addition, the "Slope" 18dB adjustable allows to compensate for differences in attenuation of coaxial cables at higher frequencies (correction of anachylation of characteristics). Built-in power supply.
Frequency range: 47-700MHz LTEII
Gain: 28dB
Flatness: +/- 0.5dB
Gain adjustment: 20dB
Slope adjutment: 18dB
Maximum output level: 117dBμV
Input and output return loss: 101dBμV
Noise figure: 6dB
Test point: -30dB
Supply voltage, power consumption: 187-250V~50/60Hz 5W
Operating temperature: -20°C ~ +50°C
Dimension/Weight: 107x148x53mm/0.6kg
