Broadband board amplifier for antenna box

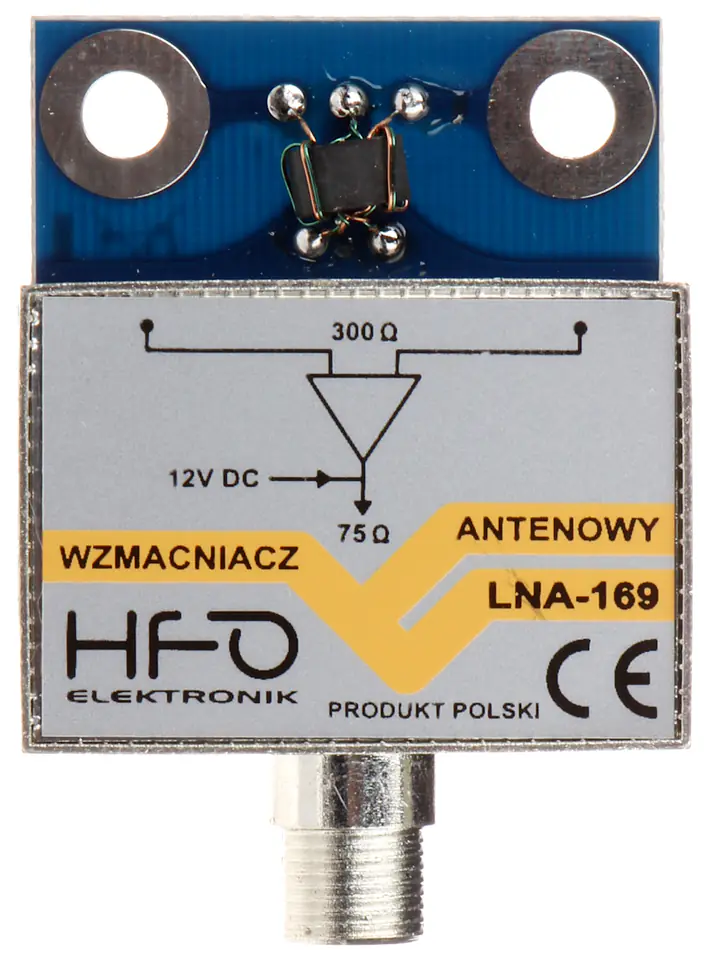

ANTENNA PREAMPLIFIER: LNA-169 6-60 24dB
This product is not available
- Availability:
- expected delivery
- Product code:
- LNA-169 / 5900000010564
Share this product:
Specification
| Amplification: | 12 ... 24 dB |
|---|---|
| Amplification:: | 12 ... 24 dB |
| Channels: | 6 - 12 21 - 60 |
| Channels:: | 6 - 12 21 - 60 |
| Dimensions: | 55 x 40 x 12 mm |
| Dimensions:: | 55 x 40 x 12 mm |
| Input/output impedance: | 300 Ω / 75 Ω |
| Input/output impedance:: | 300 Ω / 75 Ω |
| Maximum output level: | 98 dB |
| Maximum output level:: | 98 dB |
| Noise: | 3.5 dB @ 174 ... 230 MHz 3.0 dB @ 470 ... 790 MHz |
| Noise:: | 3.5 dB @ 174 ... 230 MHz 3.0 dB @ 470 ... 790 MHz |
| Number of inputs [type of connectors]: | 1 pc (antenna terminals) |
| Number of inputs [type of connectors]:: | 1 pc (antenna terminals) |
| Number of outputs [type of connectors]: | 1 pc (F connector) |
| Number of outputs [type of connectors]:: | 1 pc (F connector) |
| Power: | 12 V / 55 mA after antenna cable |
| Power:: | 12 V / 55 mA after antenna cable |
| Reinforcement k21 - k50: | 22 dB ... 24 dB |
| Reinforcement k21 - k50:: | 22 dB ... 24 dB |
| Reinforcement k51 - k60: | 24 dB ... 12 dB |
| Reinforcement k51 - k60:: | 24 dB ... 12 dB |
| Reinforcement k6 - k12: | 15 dB ... 17 dB |
| Reinforcement k6 - k12:: | 15 dB ... 17 dB |
| Scales: | 0.024 kg |
| Scales:: | 0.024 kg |
| Scope: | 174 MHz ... 790 MHz |
| Scope:: | 174 MHz ... 790 MHz |
| Warranty: | 2 years |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
