ANTENNA AMPLIFIER MX-062 FM / VHF / UHF 12V TERRA

Name: ANTENNA AMPLIFIER MX-062 FM / VHF / UHF 12V TERRA
Brand: Terra
SKU: 520259
Price: 33.21 EUR
Availability: InStock

€33.21

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Wed, May 15 - Mon, May 20

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:
Product code:: MX-062 / 5902887050077

Specification

Amplification::	FM : 30 dB VHF : 30 dB UHF : 34 dB

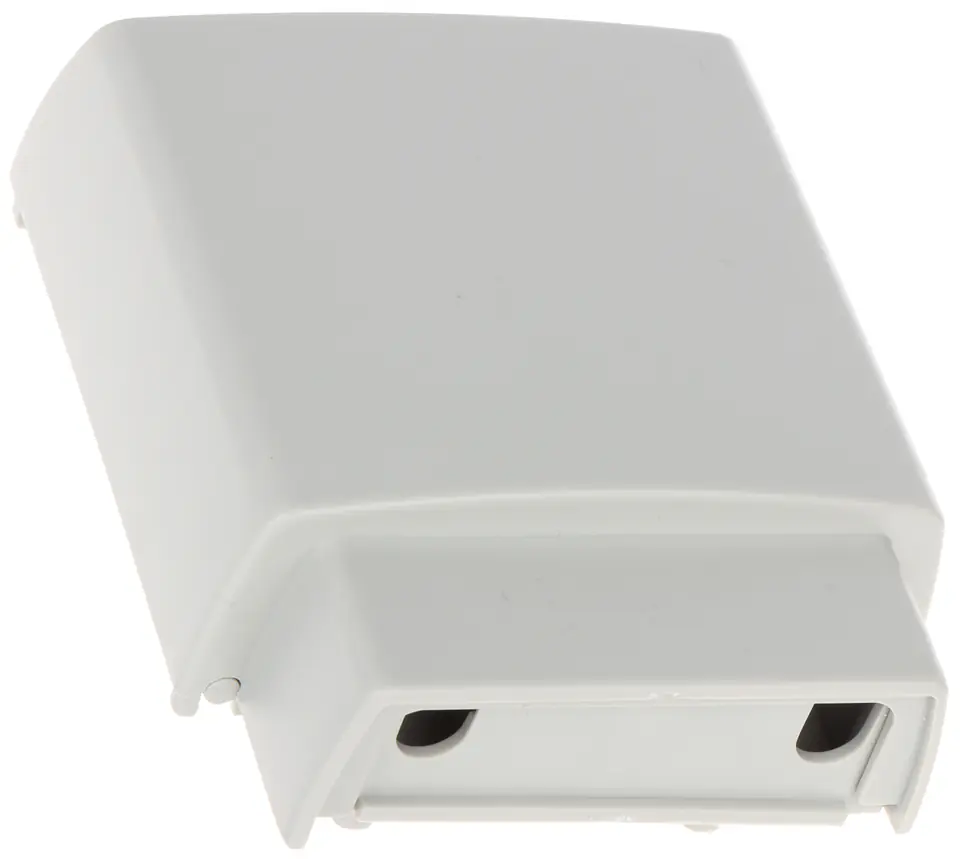

Case::	cast housing mounted inside a compact plastic housing
Connector type::	"F"
Dimensions::	107 x 89 x 43 mm

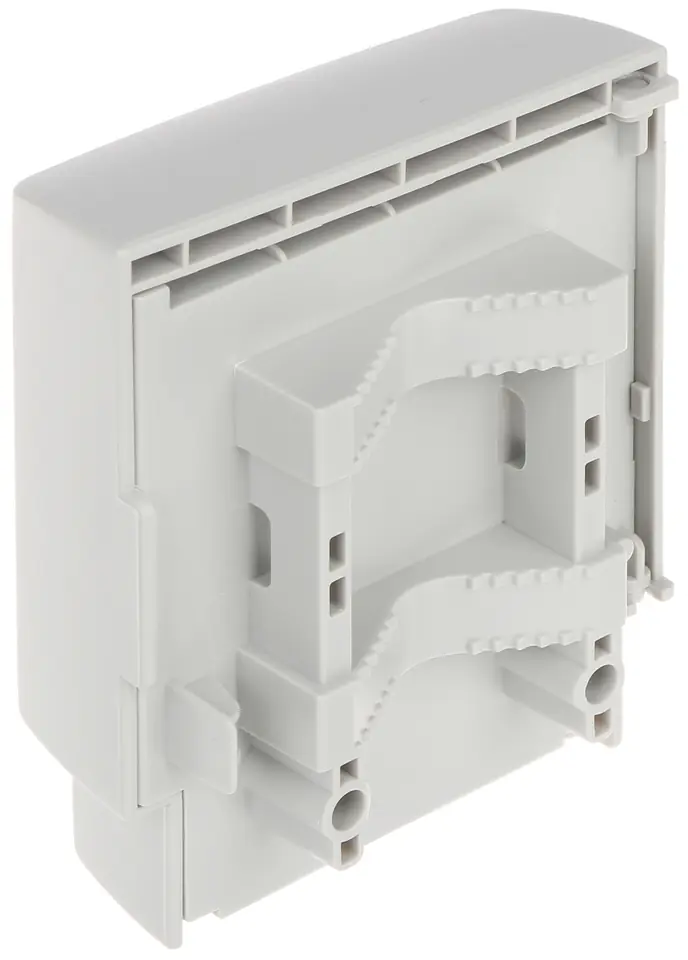

Fixing::	on the mast or wall
Frequency range::	FM: 88 MHz ... 108 MHz VHF : 174 MHz ... 230 MHz UHF : 470 MHz ... 862 MHz
Ima3 60db::	105 dBμV
Input/output impedance::	75 Ω
Manufacturer / brand::	TERRA
Mismatch suppression::	> 10 dB
Noise ratio::	FM : 6 dB VHF : 6 dB UHF : 3 dB
Number of inputs/outputs::	3 / 1
Operating temperature::	-20 °C ... 50 °C
Power::	12 VDC / 80 mA
Scales::	0.176 kg
Warranty::	2 years

Terra MX-062 mast amplifier is a device dedicated to individual installations or small SMATV systems with several outlets, e.g. in single-family housesThe maximum signal output level of 105dBμV (IMD3=60dB, DIN45004B) allows it to be safely distributed to several outlets

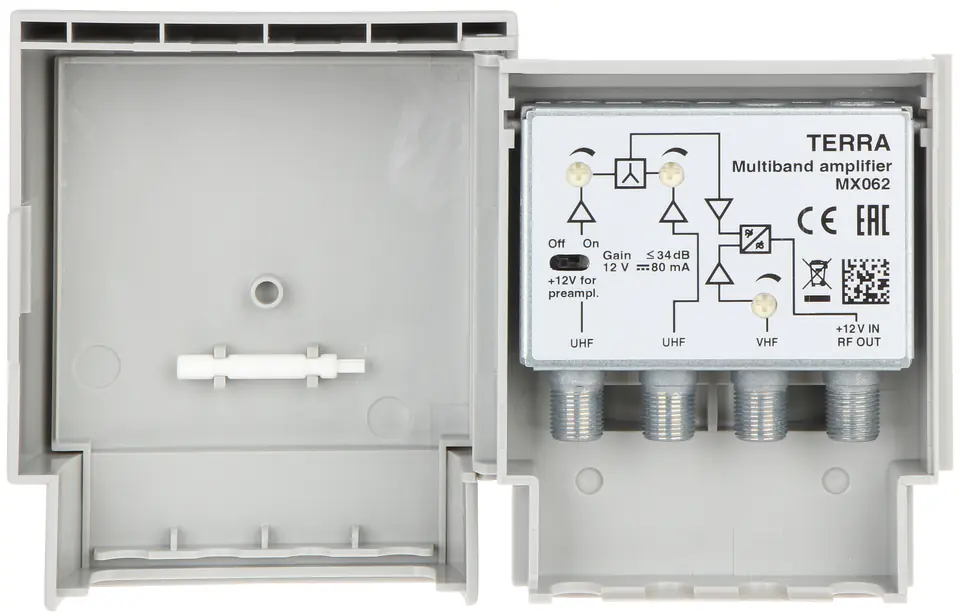

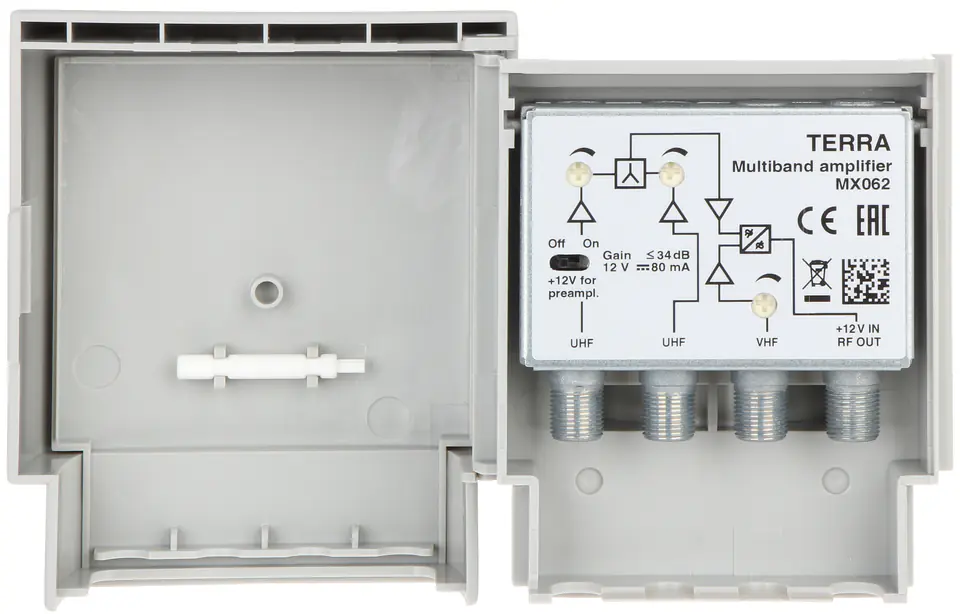

The amplifier has 1 FM+VHF input and 2 UHF inputsThe amplifier is characterized by a low noise level

The On/Off switch allows you to send a voltage of 12 V and a current of up to 60 mA to an antenna preamplifierThe amplifier can be powered from a typical power supply with a 12V/100mA separator. It is also possible to power supply from amplifiers supplying power via coaxial cable

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
