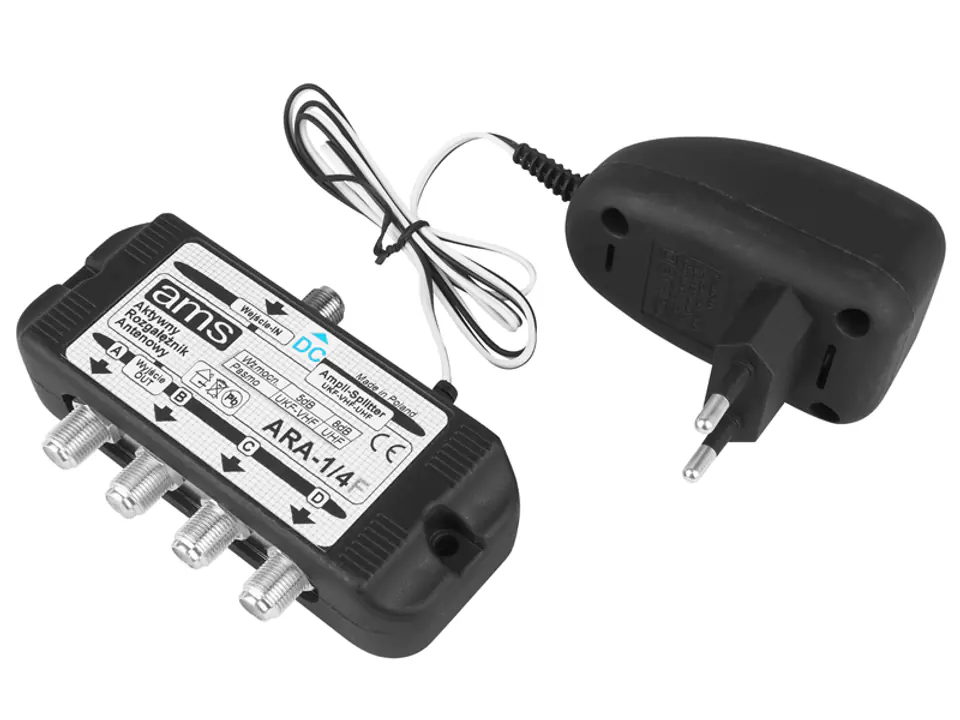

Antenna amplifier AMS ARA-1/4F.
The ARA-1/4F splitter is powered from an external stabilized power supply. It is not intended for outdoor operation. It can not be installed in conditions of high humidity and near radiators and other heat sources. It is required to provide ventilation. Due to the possibility of damage, do not connect the power until all connections are made correctly.
| 1 | Liczba wejść |
|---|---|
| 4 | Liczba wyjść |
| Pasmo: 1-69Częstotliwość: 40-862 MHz | Zakres częstotliwości |
| 5 dB (40 MHz) - 8 dB (862 MHz) | Wzmocnienie |
| < 2 dB | Współczynnik szumów |
| 82 dBuV | Maksymalny poziom wyjściowy |
| 90 x 40 x 25 mm (szer. x dł. x wys.) | Wymiary |
