ANTENNA AMPLIFIER AB-011 DVB-T 5V

This product is not available
Availability:
expected delivery
Product code:
AB-011 / 5907634554440

Specification

Amplification::14 dB / 27 dB (switch)
Case::cast housing mounted inside a compact plastic housing
Connector type::"F"
Dimensions::108 x 90 x 44 mm

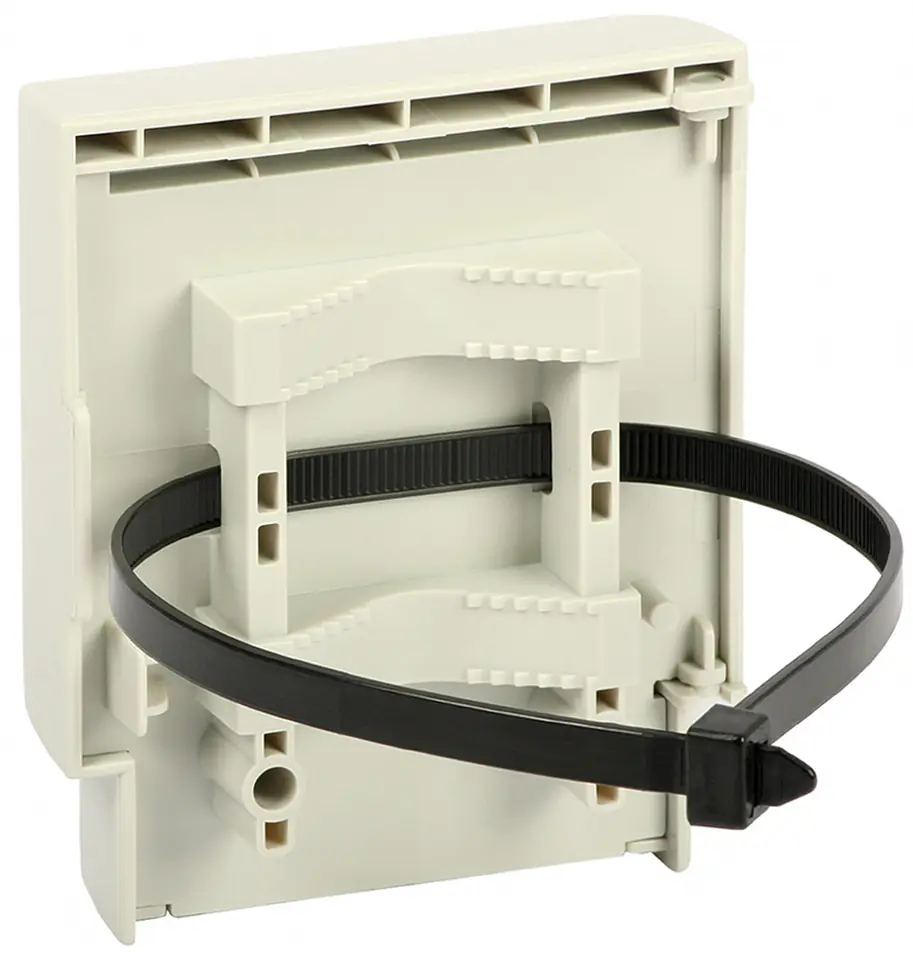

Fixing::on the mast or wall
Frequency range::470 MHz ... 862 MHz
Ima3 60db::108 dBμV
Input/output impedance::75 Ω
Mismatch suppression::> 10 dB
Noise ratio::< 1 dB
Number of inputs/outputs::1 / 1
Operating temperature::-20 °C ... 50 °C
Power::4.5 V ... 12 VDC
Scales::0.170 kg
Warranty::2 years

Terra AB-011 mast amplifier is a device dedicated to individual or small SMATV systems with several outlets, e.g. in single-family housesThe maximum signal output level of 108dBμV (IMD3=60dB, DIN45004B) allows it to be safely distributed to several outlets

The amplifier is also characterized by a very low noise level not exceeding 1dBA significant feature of the AB-011 amplifier is the low power consumption of 0.3W associated with the use of a specially designed 5V power supply system.

5V voltage is exposed at the antenna input of digital terrestrial television receiversThe ab-011 amplifier is used in place of standard amplifiers powered by 12V avoids placing additional power supplies in the installation

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
