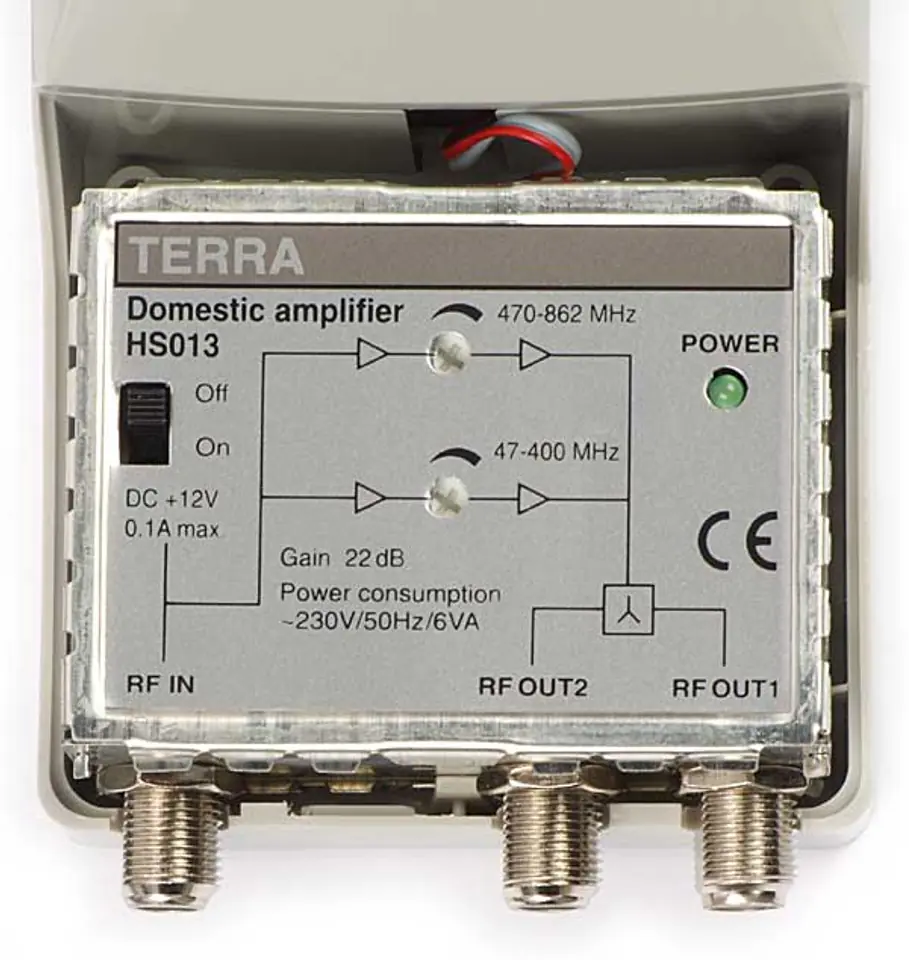

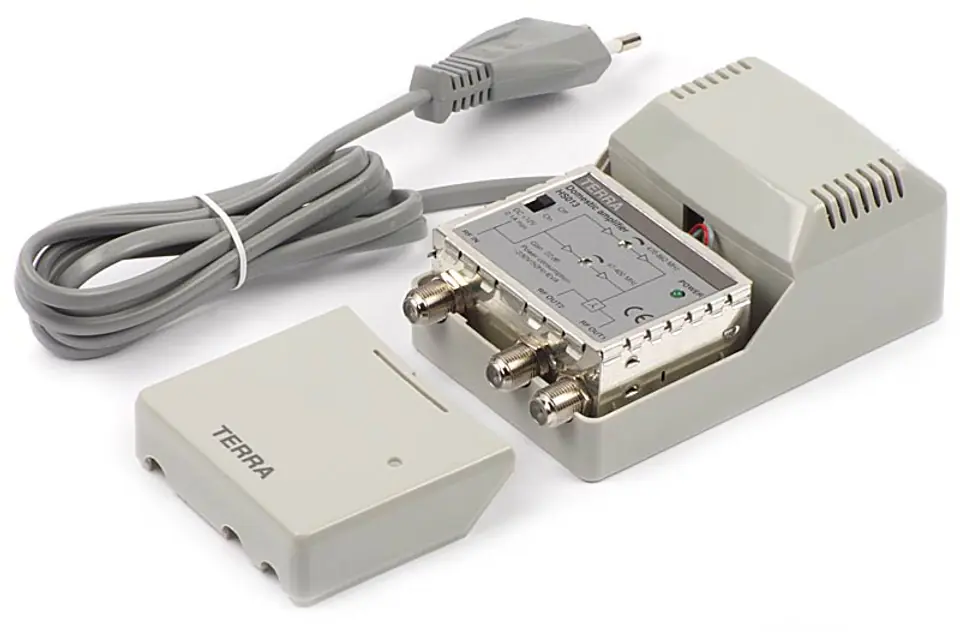

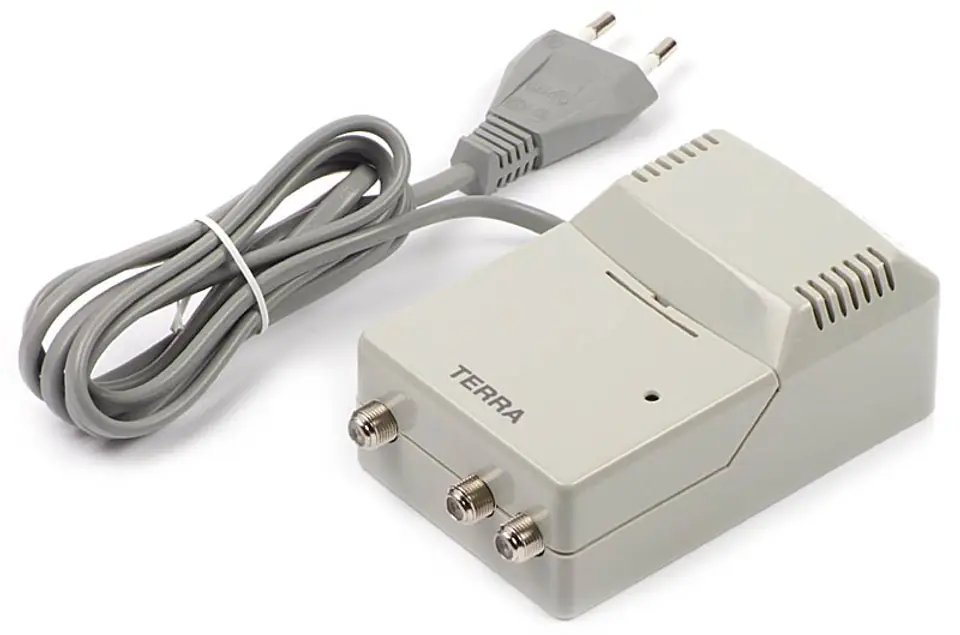

HS013 amplifier (1 input/2 output) for FM/VHF/UHF band dedicated to small and medium-sized RTV installations. Gain 22 dB, switch 12 V DC.
Amplifier for small and medium-sized DVB-T/T2 installations tested in thousands of locations
- Antenna preamplifier power supply
- Maximum gain 22 dB
- Gain adjustment in the range of 12dB for UHF
- Maximum output signal level 105 dBμV
- Low self-noise
- Built-in splitter
The new Terry amplifier is the equivalent of the well-known CA-215 R90461. Both amplifiers have very similar parameters.
Item Type: Home Amplifier
Brand TERRA
Type RTV/CATV
Internal use
FM/VHF/UHF band
Number of inputs 1
Number of outputs 2
DC Switch 0/12 V YES
Gain adjustment YES
Frequency 47...400/470...862
Gain dB 22
Gain control dB 0...12 for UHF, 0...15 for VHF
V/A DC 12/0.1 preamplifier power supply
Max. output level IMD3=60 dB (DIN45004B) dBμV 105
IMD2=60 dB (EN50083-3) dBμV 95
VHF dB <4.5 own noise
UHF dB <3
Signal connector type F
Power supply V AC 230/50-60 Hz
Power consumption W 4
Operating temperature °C -20...+50
Dimensions mm 78x118x47
Weight kg 0.36
