Amplifier for antennas ASR-PAD 820 Telkom Telmor

----------
Features
----------
Possibility of amplifying RTV signals from ASR classic antenna
Wide range of permissible supply voltages
Low self-noise
High resistance to intermodulation
Low power consumption

----------
Technical Specifications
----------
Operating bandwidth: FM/ VHF/ UHF
Operating Frequency Range: 174-862MHz
Gain: 20 dB +/-2 dB
Maximum output signal level: 100 dBuV
Noise Ratio: 2.5dB
Input/output impedance: 300 Ohm / 75 Ohm
Power supply: 5...12 VDC
Current consumption: 30 mA +/-3 mA
Connector type output: "F" female
Net Weight : 0.05 kgs

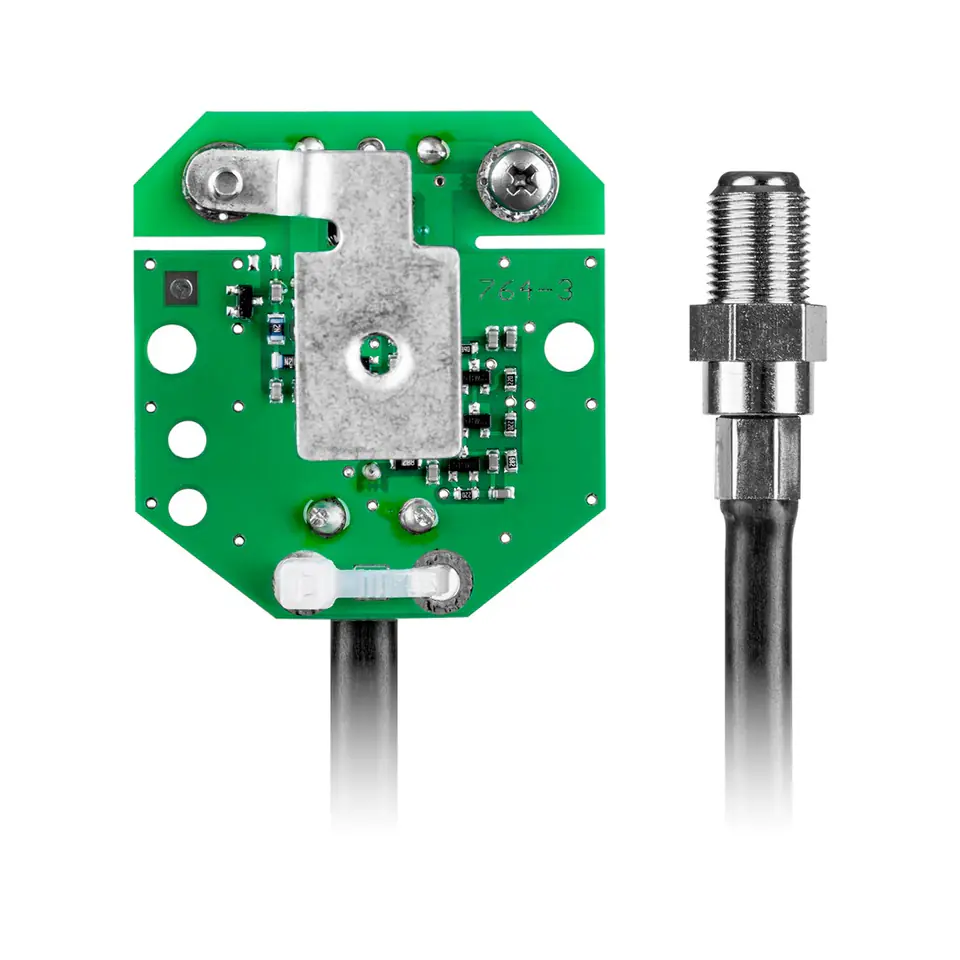

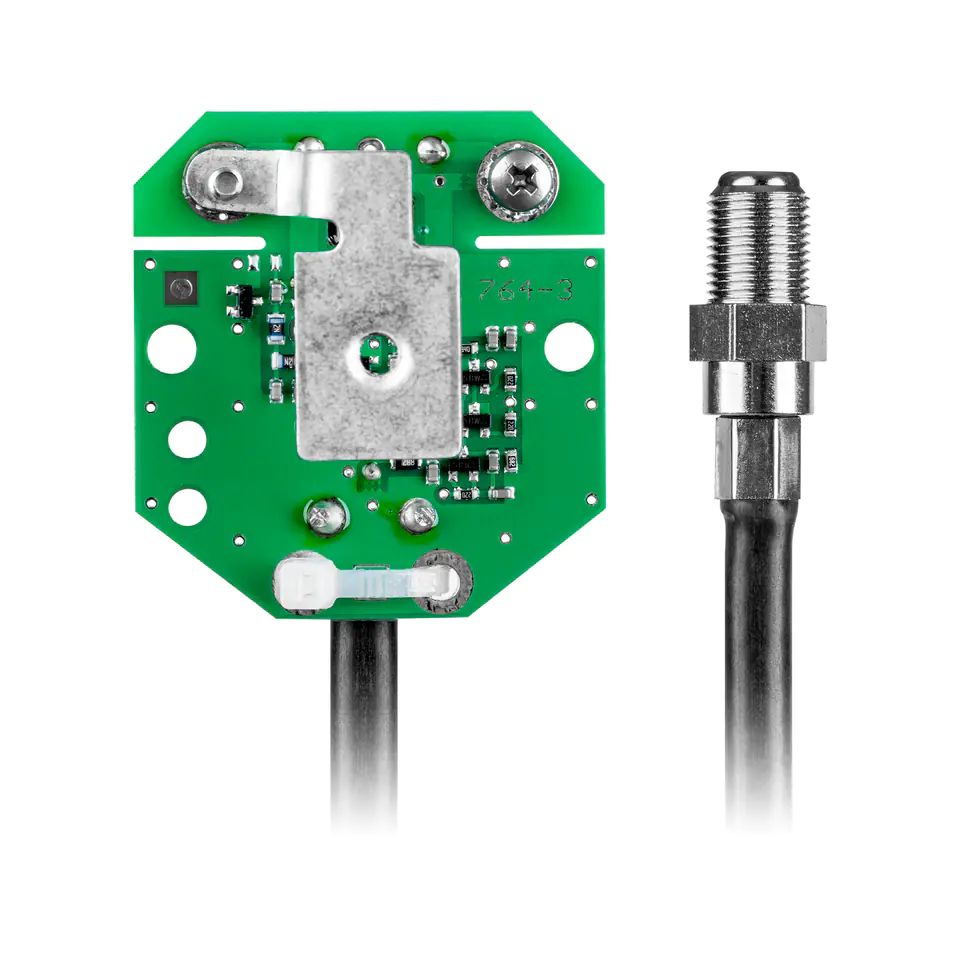

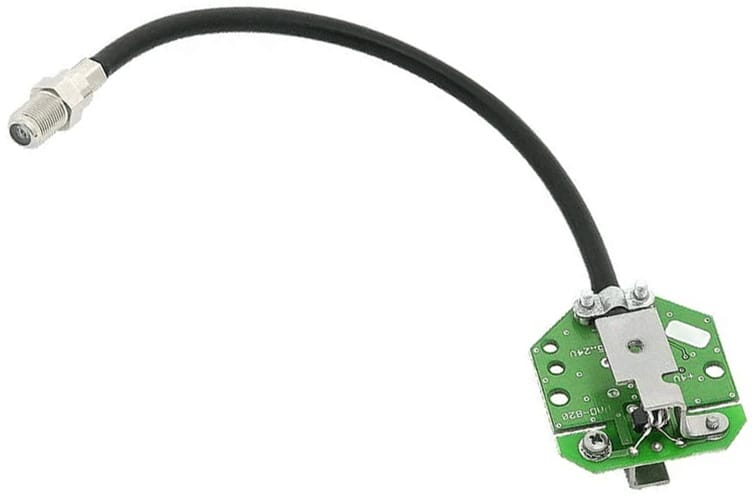

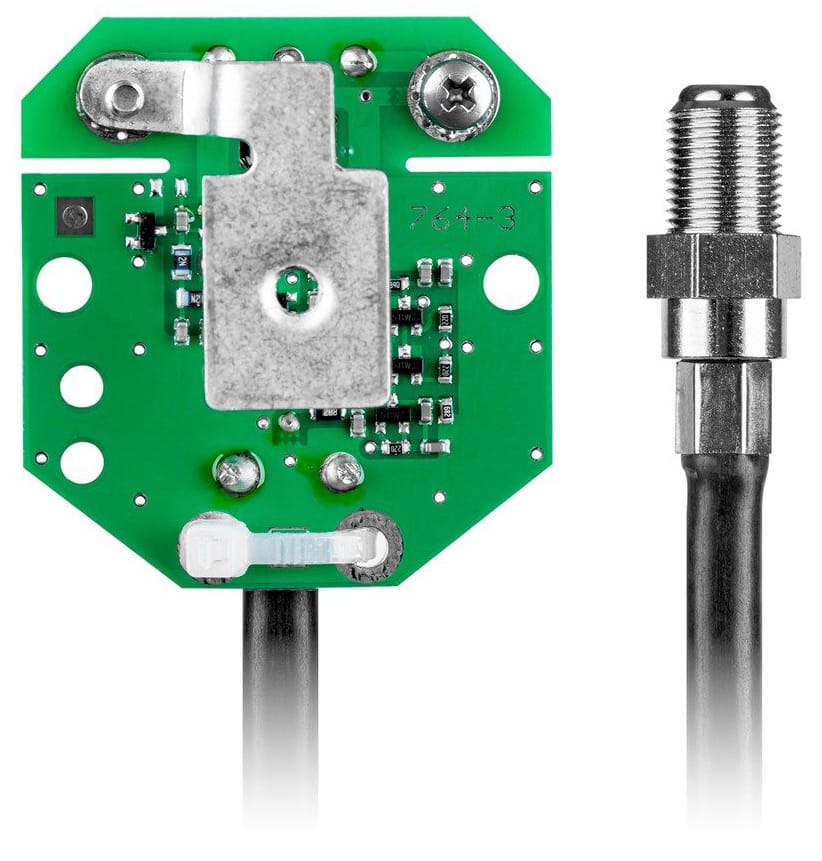

The PAD-820 antenna preamplifier is designed to amplify weak terrestrial TV signals received by the receiving antenna of ASR series. ASR series antennas have a built-in PAD preamplifier. The purchase of a new one is only required in case of damage to the original one.
The PAD-820 preamplifier is designed for use in ASR antennas only. The device is powered via a coaxial cable from the output side. Due to the wide range of permissible supply voltages 5-12V, the amplifier in question can be powered directly from a tuner or TV set (the above devices must be able to expose DC 5V voltage), or through an external power separator (with a power supply) type ZZA-7.
