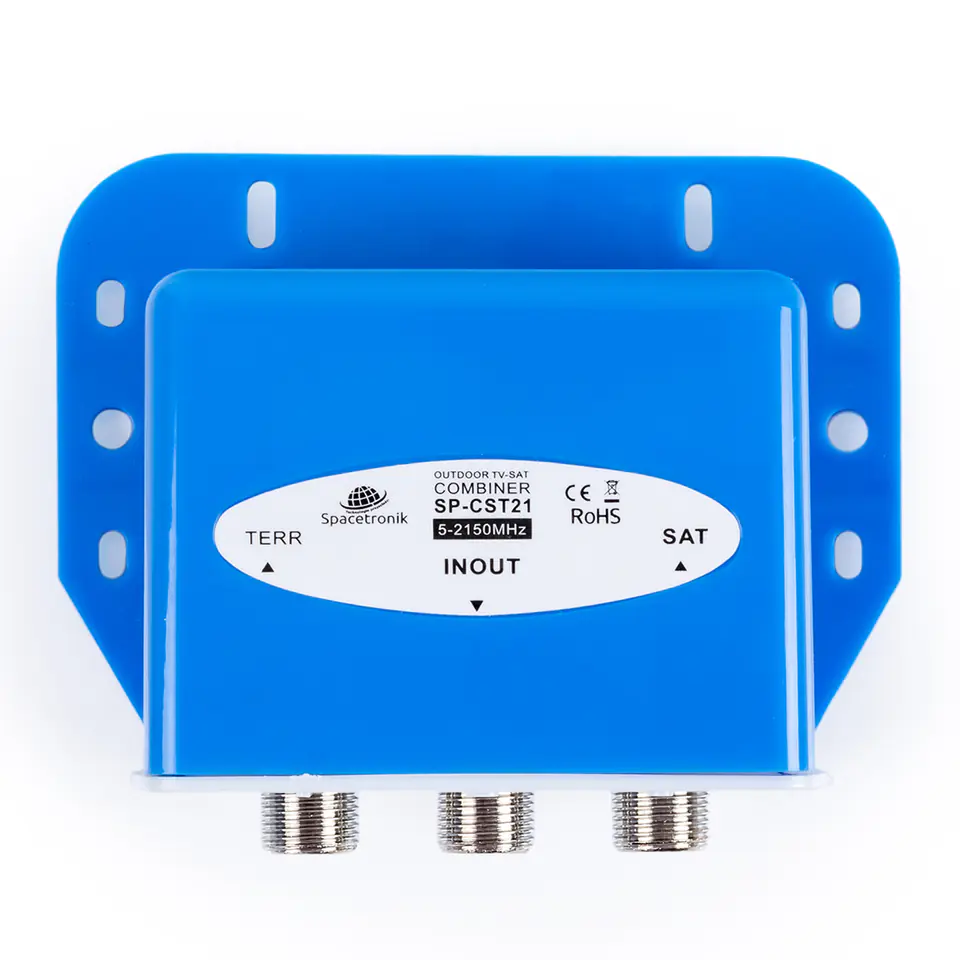

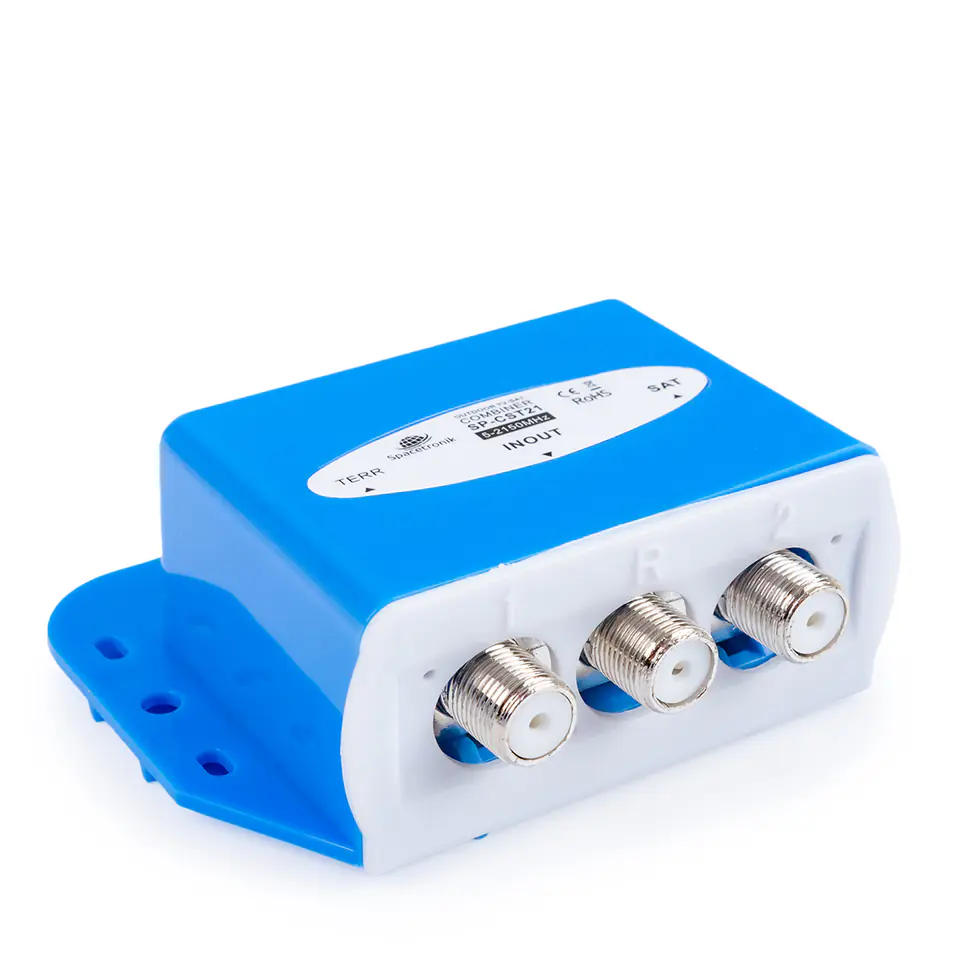

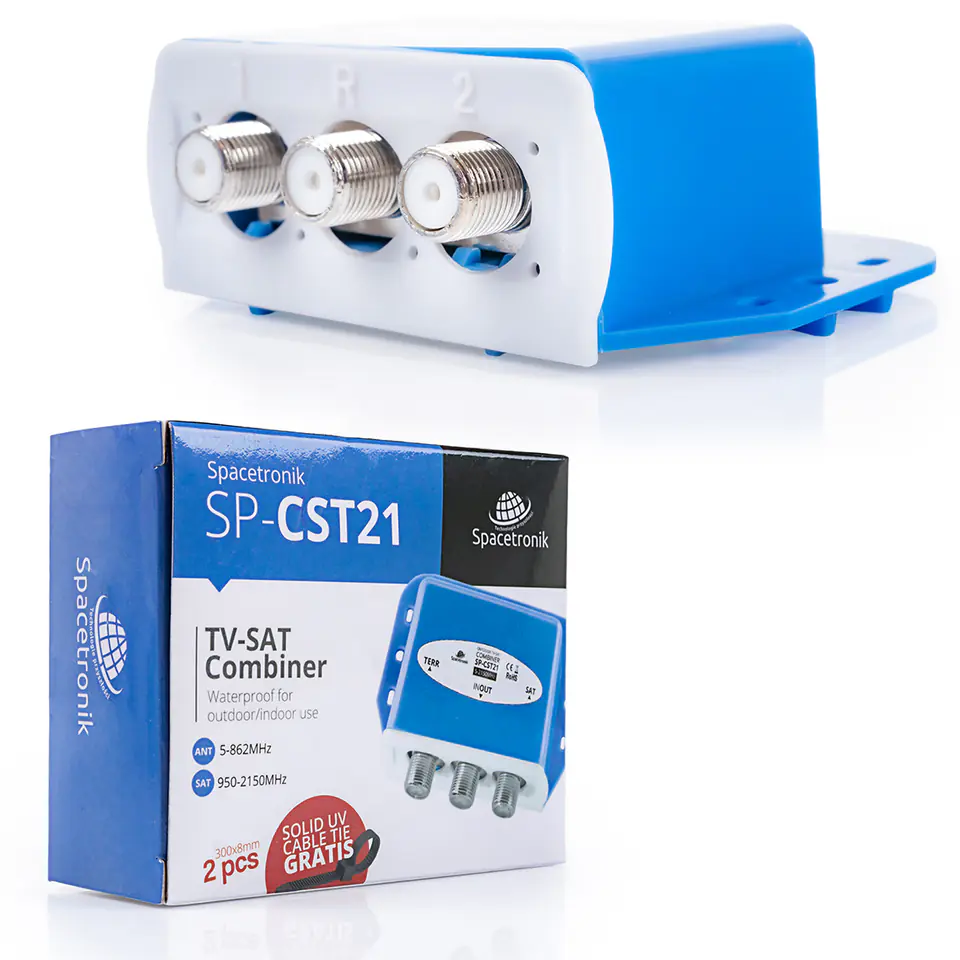

Terrestrial TV DVB-T (5-862MHz) adder with SAT signal (950-2150MHz) Combiner Spacetronik SP-CST21

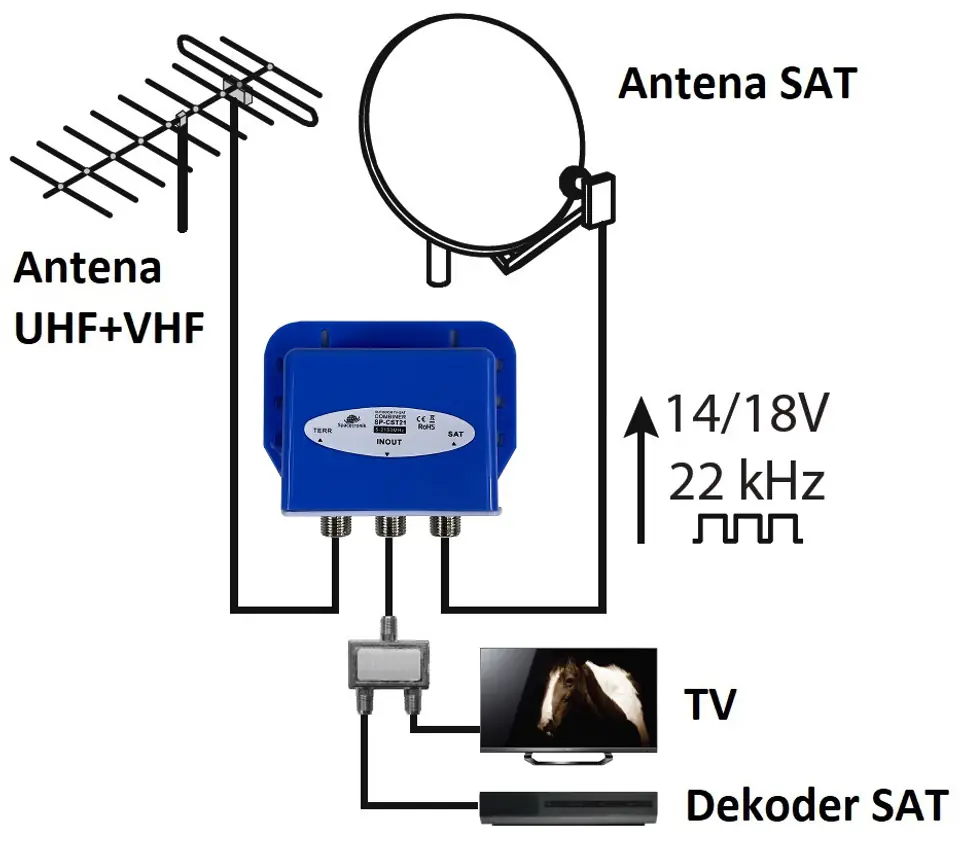

Spacetronik SP-CST21 allows you to sum up signals from a satellite dish, e.g. a single LNB converter with a signal from a terrestrial antenna. The signal prepared in this way is sent via one antenna cable, e.g. to the RTV-SAT end socket, or the 1/2 splitter where the reverse process is carried out and we can connect a satellite decoder and, for example, a TV with DVB-T. Example of using SP-CST21 in the installation:

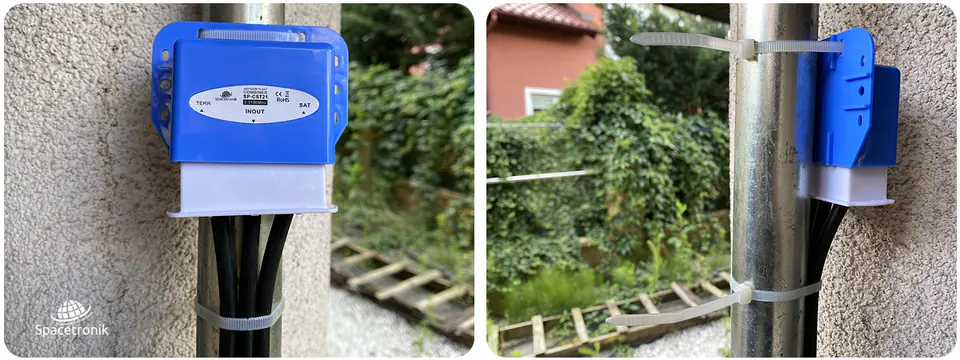

External housing for mounting the adder on the mast, antenna holder complete with cable tiesSP-CST21 features:
- Robust zinc-cast housing, tinned
- Lightweight and compact size
- Supported frequency range: 5-2150MHz
- Female connector F 75 Ohm
- Power supply transition DC max: 24 V DC 500 mA
Technical parameters:
- TV frequency range 5-862 MHz
- SAT frequency range 950-2150 MHz
- TV attenuation: <2.0 dB
- SAT attenuation: <3.0 dB
- passage for DC in SAT track
