| Cable length:: | 3 m |
|---|---|
| Case:: | self-extinguishing plastic |
| Dimensions:: | 447 x 57 x 43 mm |
| Leakage current:: | < 0.5 mA |
| Level of protection:: | ≤ 1.3 kV |
| Maximum discharge current:: | 6.5 kA (L/N) - 8/20 μs |
| Maximum load power:: | 2300 watts (Printing) |
| Nominal discharge current:: | 2 kA (L/N) - 8/20 μs |
| Number of ac sockets:: | 5 sockets with protective contact 16A/250V - (Schuko) |
| Rated load current:: | 10 A (total) |
| Response time:: | < 25 ns |
| Scales:: | 0.65 kg |
| Selected features:: | Easy-to-read LCD display with backlight showing detailed information about the system status, Supply voltage measurement: 80 V ... 250 V @ 50Hz, Supply current measurement : 0.01 A ... 10 A @ 50/60 Hz, Power measurement : 1 W ... 2500 W, Energy measurement : 1 Wh ... 9999 Wh Resetting Energy Meter Setting Alarm When Power Consumption Exceeds |
| Switch:: | Double-track switch - illuminated |
| Voltage:: | 230 V AC / 50 Hz |
| Warranty:: | 2 years |

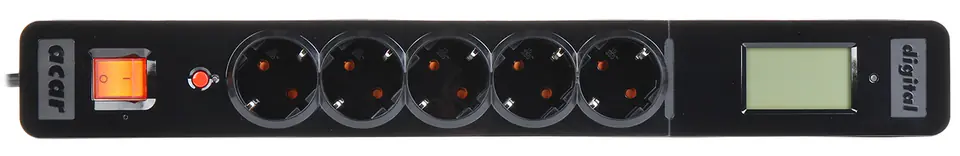

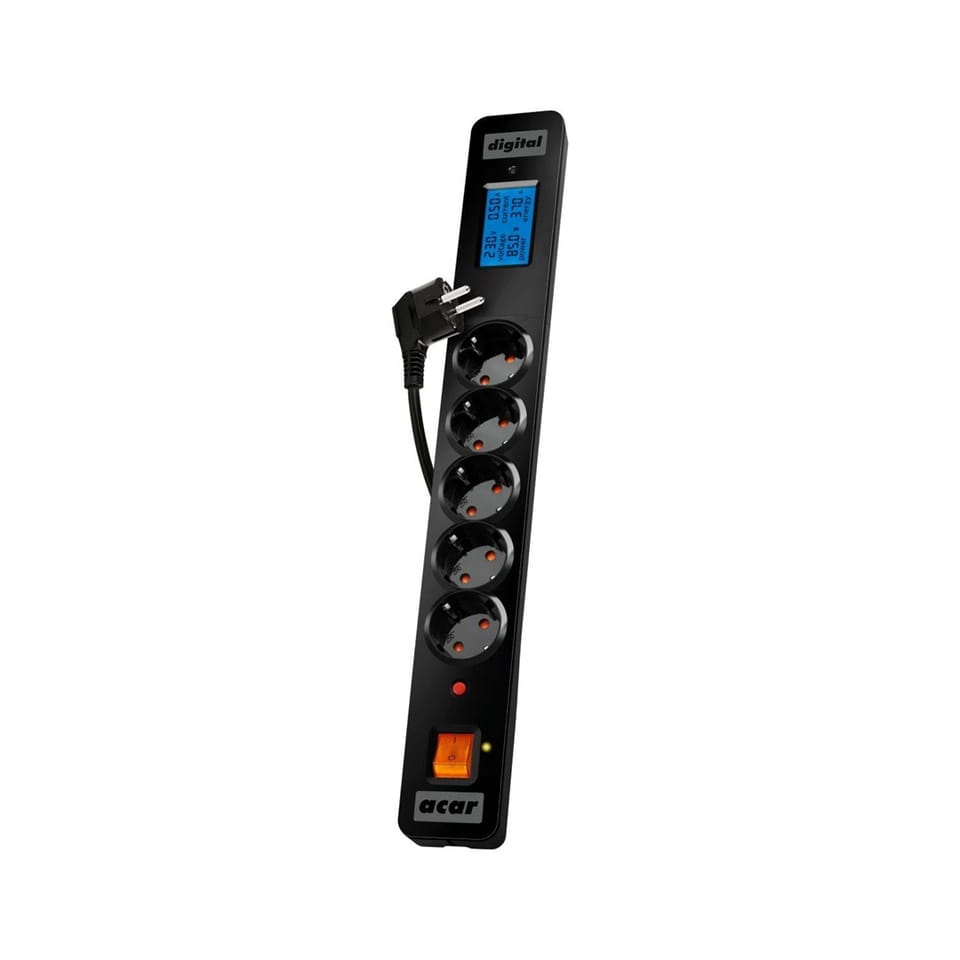

Protective strip, protects devices against the effects of lightning or overvoltages from the AC 230V network

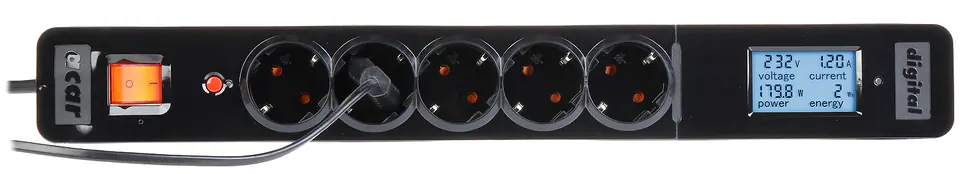

The device has been equipped with a system for monitoring the supply voltage and the total current, power and energy consumed by the receivers connected to the power outletsThe meter indicators can be reset at any time
