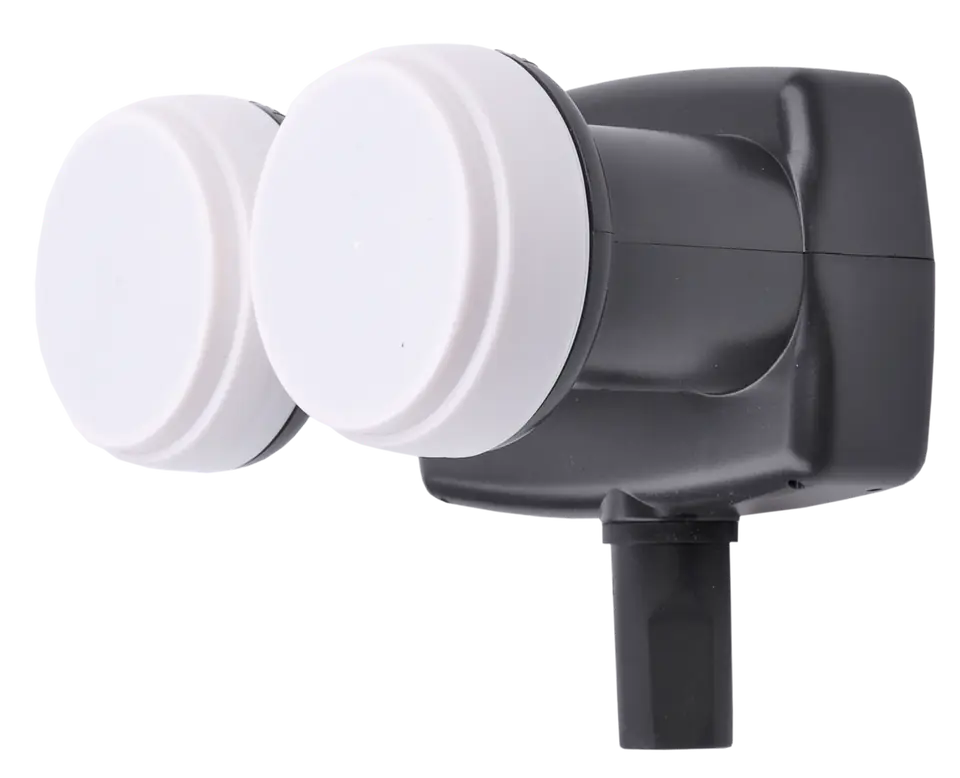

Monoblock has been designed for dual satellite reception. It can be used to receive signals from two satellites located at a distance of 6° (e.g. Astra and Hotbird) and distribute it to one set-top box. Designed to be placed on a canopy of 80cm.
The converter is compatible with High Definition transmission and guarantees excellent noise ratio. Manufactured to the highest quality industry standards and meeting all requirements, these converters are the ideal solution for satellite reception in Europe.
FEATURES:
- Low phase noise, compatible with DVB-S2 (HDTV)
- Low noise ratio 0.2dB
- Low power consumption
- High cross-polarity
- High frequency stabilization
TECHNICAL DATA:
- Lower band frequency range - input: 10.7~11.7 GHz
- Lower band frequency range - output: 950-1950 MHz
- Lower oscillator frequency: 9.75 GHz
- Upper band frequency range - input: 11.7~12.75 GHz
- Frequency range of upper band - output: 1100~2150 MHz
- Frequency of the upper oscillator: 10.6 GHz
- Custom noise: 0.2dB Type. (0.7dB Max)
- Initial accuracy: +/-1.0 MHz
- Oscillator temperature drift: +/-3.0 MHz
- Phase noise: -90dBc/Hz
- Gain: 50~62dB
- Gain variability: +/-0.75dB/27 MHz
- Separation between polarizations: 25dB
- VSWR : 2.5:1
- Current consumption: 120mA (Typ.) 150mA (max.)
- Operating temperature: -30°~+60°C
- Weight: 270g
77-117# Converter sat inverto monoblock single
€20.17
Shipping from warehouse: D4
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- LP
- Product code:
- KONW/MONOBLOCK-INVER / 5453001045917
Share this product:
Specification
| Amplification: | 50 - 62 dB |
|---|---|
| Band switching: | 22 kHz |
| Dimensions: | 100 x 83 x 123 mm |
| H/v polarity switches: | 13 / 18 volts |
| Handle diameter: | 40 mm |
| Input frequency: | 10.7 GHz ... 11.7 GHz 11.7 GHz ... 12.75 GHz |
| Lnb switch: | Related to DiSEqC 1.0: |
| Noise ratio: | 0.2 dB |
| Number of outputs: | 1 pc Socket F |
| Oscillator frequency: | 9.75 GHz / 10.6 GHz |
| Output frequency: | 950 - 1950 MHz 1100 - 2150 MHz |
| Output impedance: | 75 Ω |
| Producer / brand: | INVERTO |
| Scales: | 0.34 kg |
| Suggested bowl size: | 80 cm |
| Type: | SINGLE 6 ° |
| Warranty: | 2 years |
