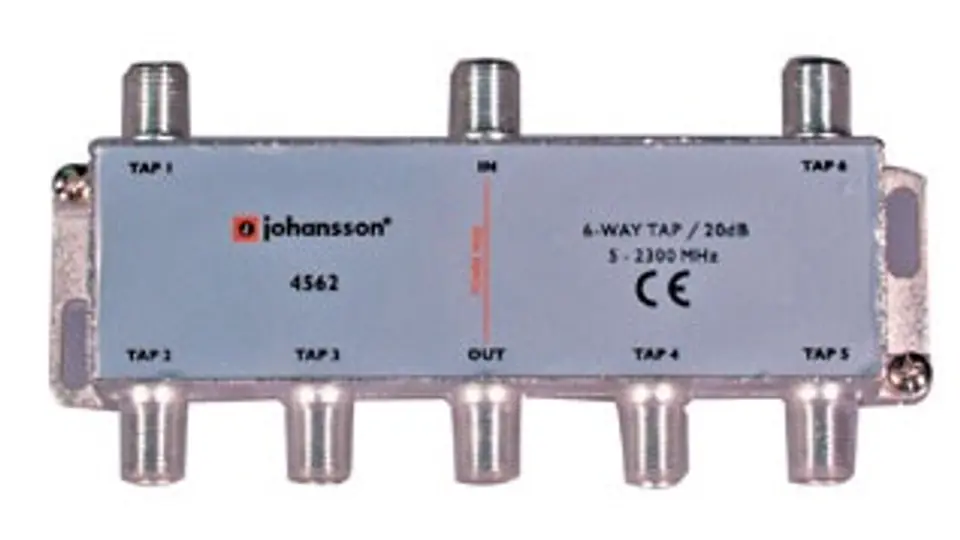

JOHANSSON 4562 TAP 6XTAP / -20dB / 5-2300MHz
6-fold stage:
- Nickel-plated die-cast zinc housing
- F-type connectors
| MHz | 5-2300 | Frequency |
|---|---|---|
| dB | 20 ± 2 | Tap loss |
| dB | < 4 | Through loss |
| dB | > 20 | Tap/Tap isolation |
| dB | > 18 | Out/Tap isolation |
| dB | > 10 | Input return loss |
| dB | > 10 | Tap return loss |
| dB | > 10 | Output return loss |
| mm | 57 x 120 x 25 | Dimensions |
